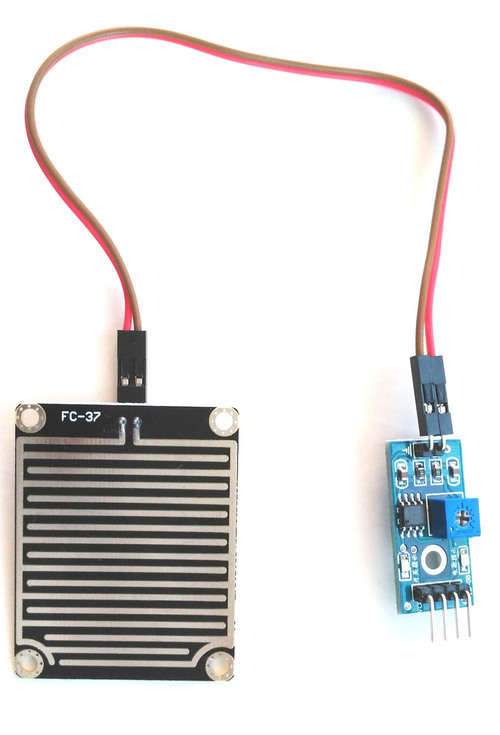

RAINDROPS/SNOW DETECTION SENSOR MODULE

DESCRIPTION:

The item is for Arduino robot kit, raindrops, rain sensor, monitoring can be used for a variety of weather conditions, and converted into the number of the reference signal and the AO output.

SPECIFICATIONS:

1. The sensor uses the FR-04 high-quality double-sided materials, King Size 5.0 * 4.0CM, and with the surface of the nickel plating treatment, against oxidative, conductivity, superior performance and longevity;
2. The comparator output, the signal is clean, waveform, driving ability over 15mA;
3. Distribution bit to adjust sensitivity;
4. Operating voltage 3.3V-5V
5. The output in the form: digital switching outputs (0 and 1) and analog AO voltage output;
6. A fixed bolt hole for easy installation
7. Voltage: 5V
8. Power indicator, the output signal LED indicator.
9. TTL-level output, TTL output valid signal is low. Driving capability 100MA so, can directly drive relays, buzzer, a small fan, and so on.
10. Sensitivity can be adjusted via potentiometer
11. LED lights up when there is no rain output is high, raindrop up, the output ground level, LED light.
12. Raindrops and control panels are separate, easy to wire leads.
13. A large area of rain board, more conducive to detect rain.
14. Board with positioning holes to facilitate installation
15. Small board PCB size: 3.2cm x 1.4cm
16. Wide voltage LM393 comparator
