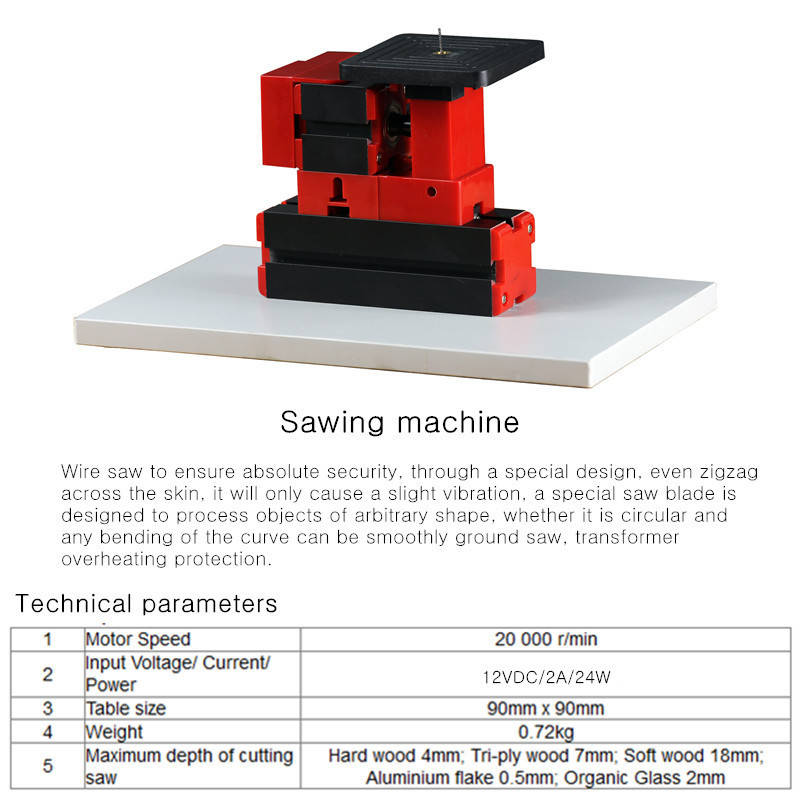

Sawing machine Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3) Table size: 90 x 90mm
4) Material: Aluminum,Carbon steel, ABS
5)The max.thickness of cut:
hardwood: 4mm, polywood: 7mm, softwood: 18mm,

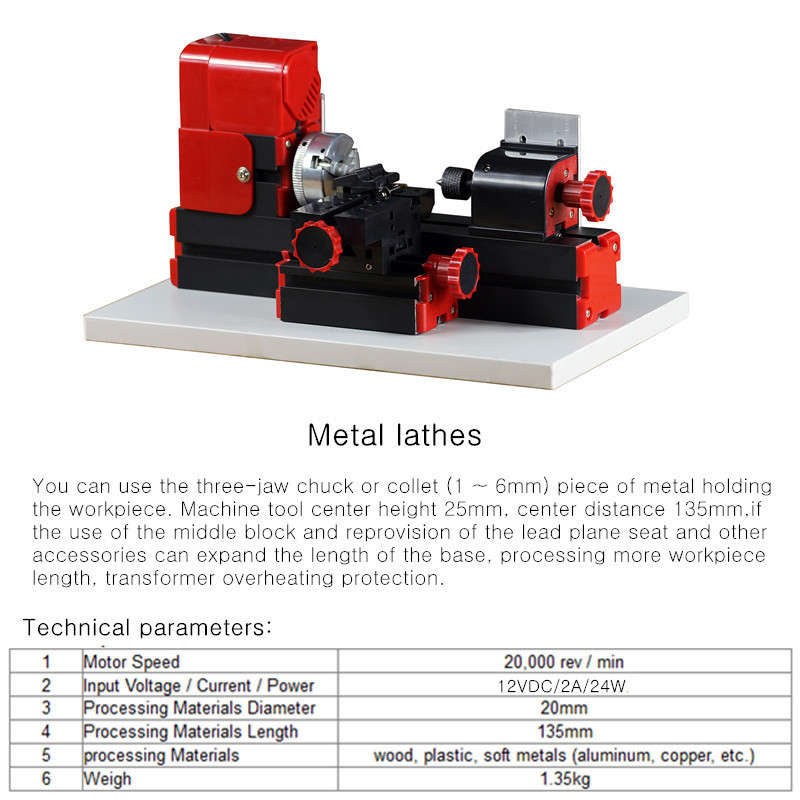

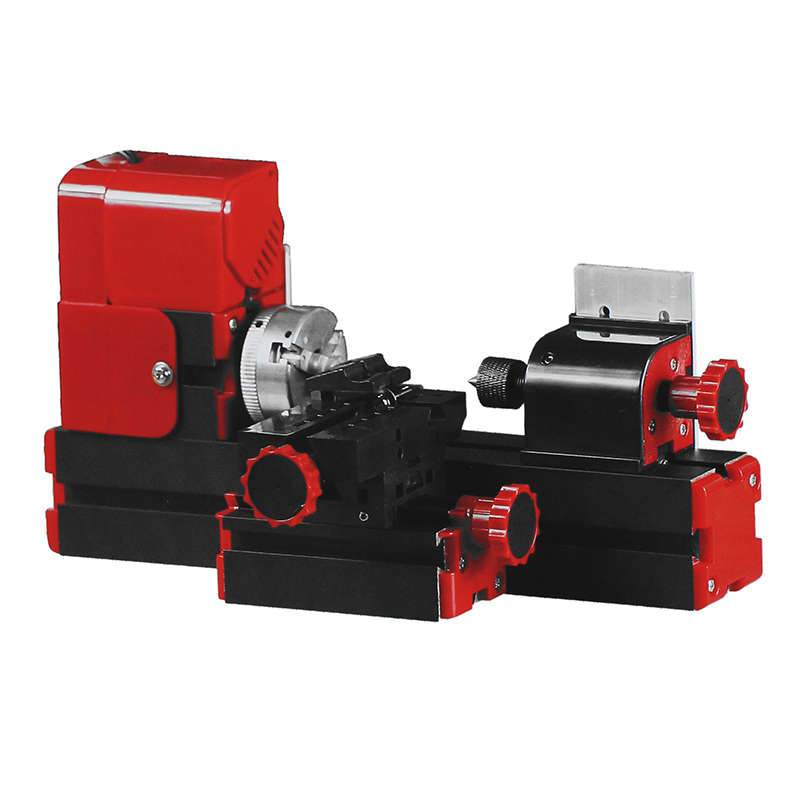

sheet metal: 0.5mm, plexi-glass: 2mm | Metal lathes Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W
3) Tree 3-jaw chuck (self-centering)
4) The maximum diameter of the processed materials: 20mm
5) Length of processing materials: 135mm
6) Material: Carbon steel, Aluminum, ABS
7) it can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals |

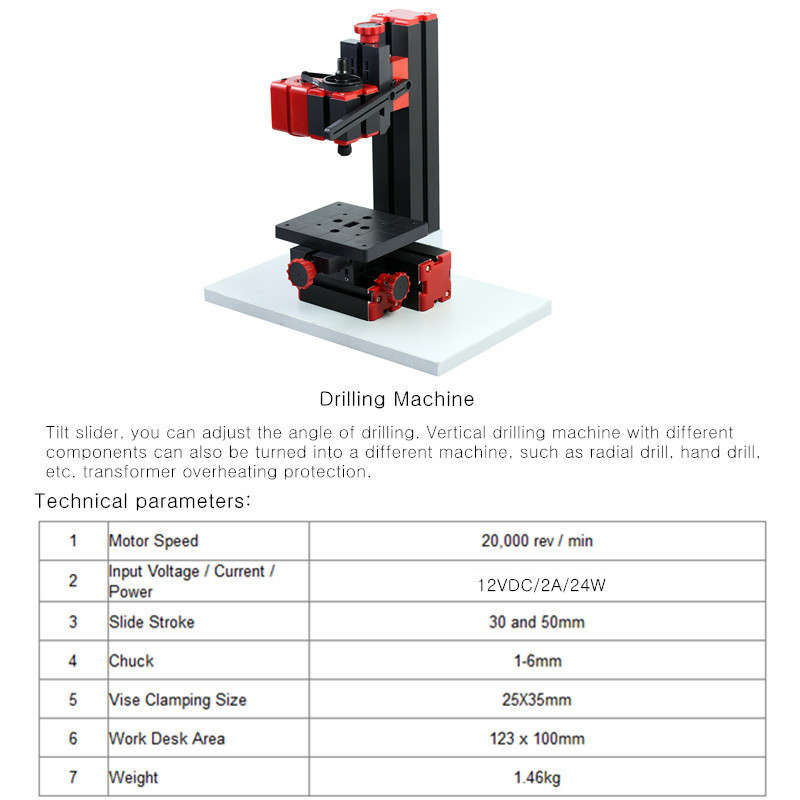

Drilling machine Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3) Slide travel: 30 --50 mm
4) Stroke: 25mm
5) Clamping dimensions: 1 to 6 mm
6) Working area: 123 x 100mm
7) Material: Carbon steel, Aluminum, ABS

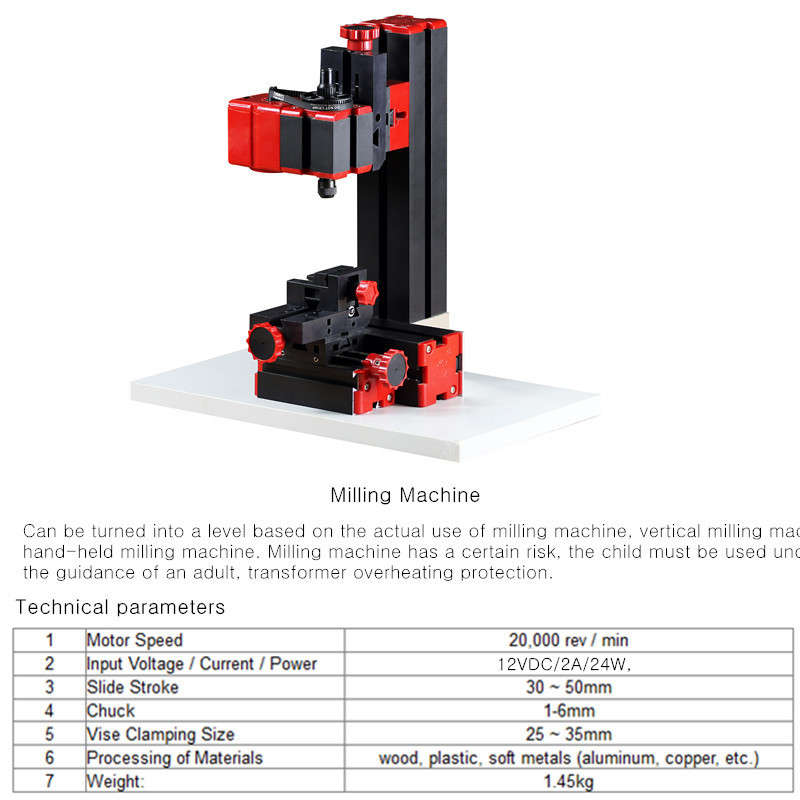

8) it can process wood ,soft-aluminum, brass, copper, plastics, other soft, colored etc. | Milling machine Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3) Slide travel: 30 -- 50mm
4) Clamping dimensions: 1– 6mm
5) Material: Carbon steel, Aluminum, ABS
6)Vise clamping size : 30mm |

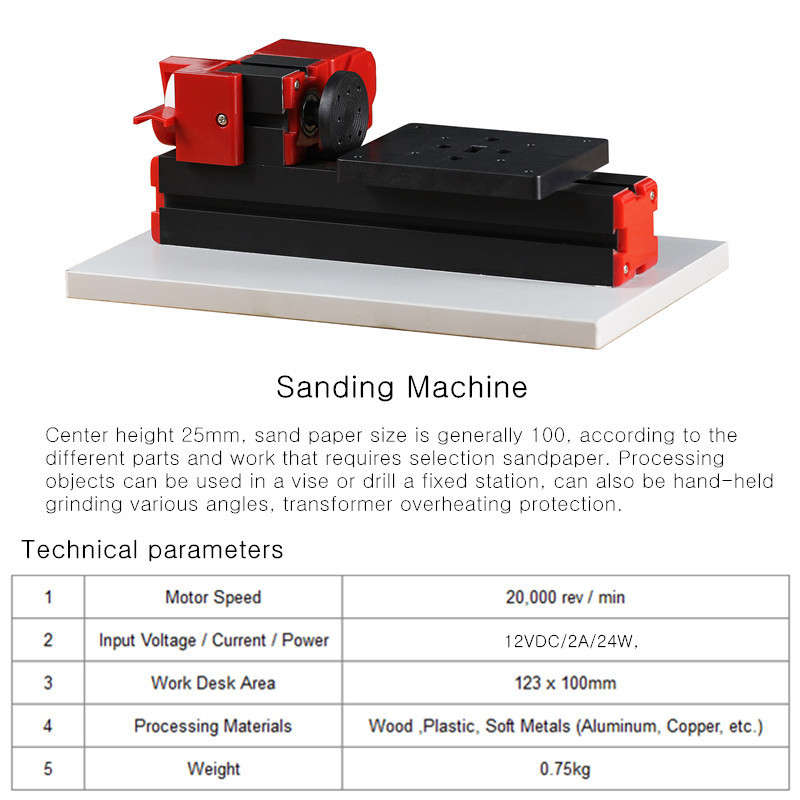

Sanding machine Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3) Material: ABS ,Carbon steel, Aluminum
4) Working area: 123 x 100mm

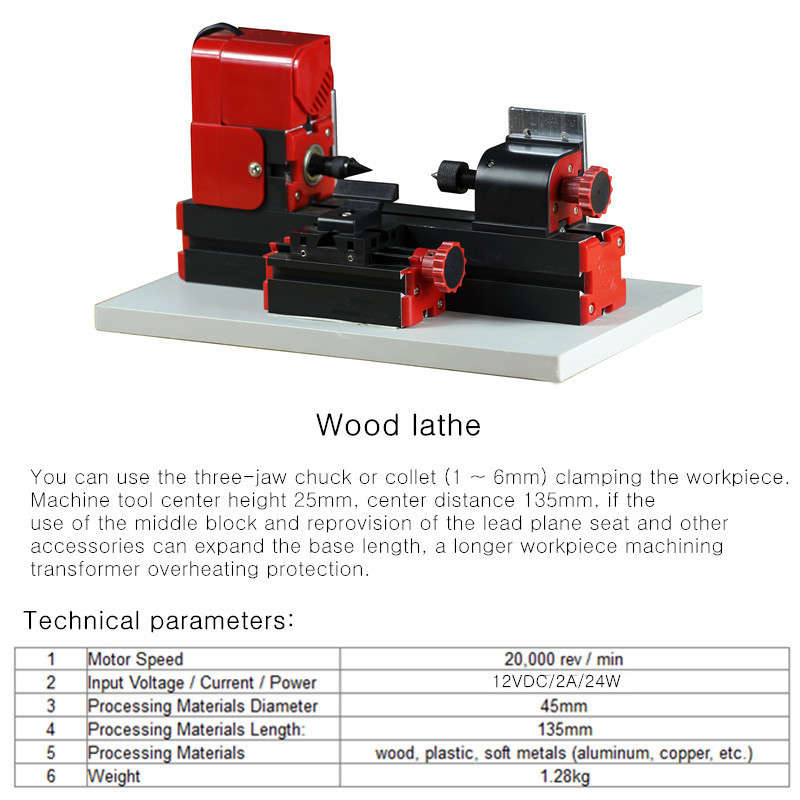

5)The item can process everything that is used in model making | Wood Lathe Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3) The maximum diameter of the processed materials: 45mm
4) Length of processing materials: 135mm
5) Material: Aluminum, Carbon steel, ABS
6) All types of wood (also hard wood) can be processed |

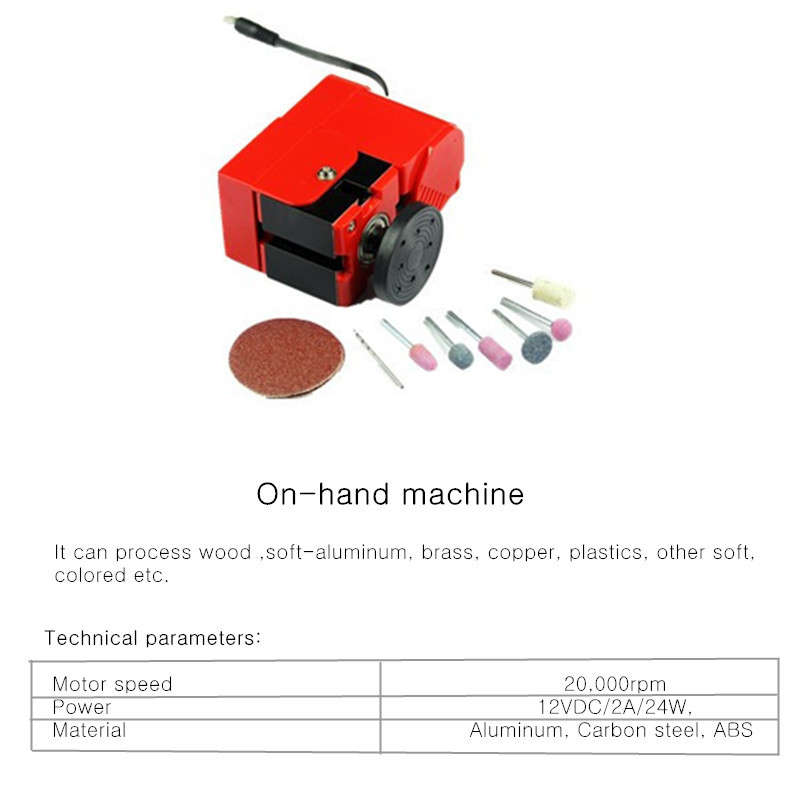

On-hand machine Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3) Material: Aluminum, Carbon steel, ABS

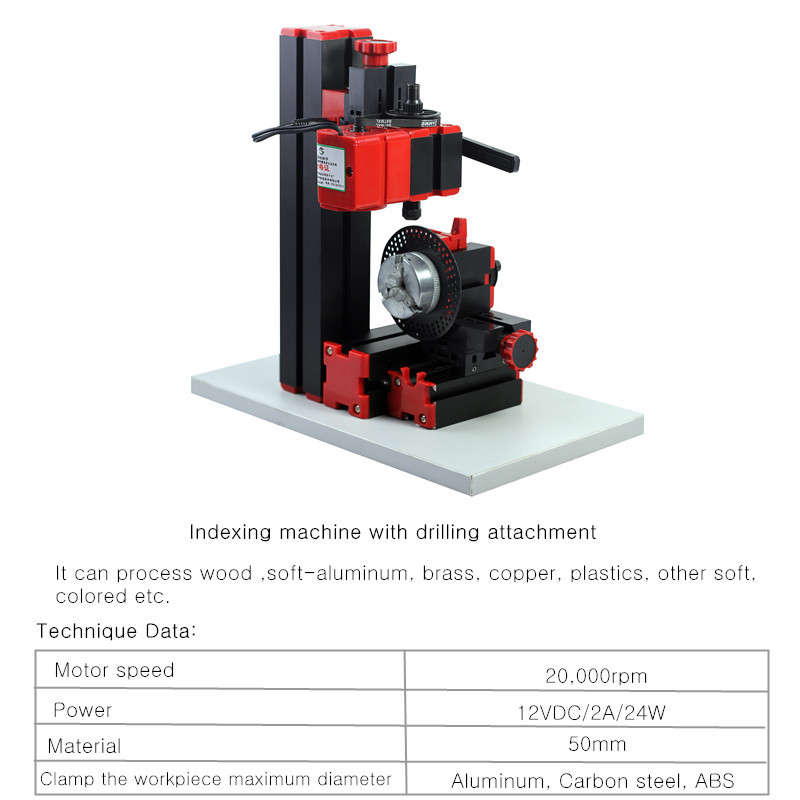

4) it can process wood ,soft-aluminum, brass, copper, plastics, other soft, colored etc | Indexing machine with drilling attachment Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3)three-jaw chuck to clamp the workpiece maximum diameter of 50mm
4) Material: Aluminum, Carbon steel, ABS
5) it can process wood ,soft-aluminum, brass, copper, plastics, other soft, colored etc. |
