Enterprise class KVM-over-IP in a palm-sized form factor
Dominion KX101 is a next-generation, enterprise-class KVM-over-IP device that eliminates the blocking factor inherent in switched KVM architectures. It provides anytime, anywhere access and BIOS-level control of a single server, via a dedicated IP address. The Dominion KX101 shrinks all the performance and security features of Raritan's industry-leading remote KVM access and control technology into a "zero-U" single-port density form factor. Multiple KX101s can be installed in a data center to provide fully non-blocked, switchless access by any user to any server. Multiple KX101s also can be deployed at multiple remote locations to provide anytime, anywhere, non-blocked access to any device in a company's distributed infrastructure. All of the KX101s and many other devices, including Raritan's Dominion KX, Dominion SX, Paragon II and HP iLO/RILOE, can be centrally managed through a single IP address, with Raritan's CommandCenter® Secure Gateway. Palm-sized and highly portable, the Dominion KX101 can be mounted vertically or horizontally on the side of a rack, affixed to any convenient surface with Velcro® or simply hung from the back of the target device by its cable. In addition, its Powerover- Ethernet (PoE) capability can eliminate the need for a separate power supply and cabling.
Hardware Features
Multiple power options: Power over Ethernet (Mid Span Power Insertion or Signal Pair Power Insertion) and AC/DC power adapter.
The serial Admin console port provides an efficient way for the user to conduct configuration and diagnostics of the KX101, as well as, recover the factory default configuration.
Versatile rack mounting bracket for horizontal mounting, accommodating U size target servers, or vertical unit mounting on either side of the rack.

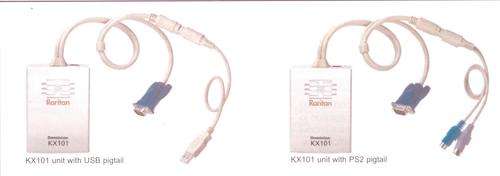

Enables quick installation of Dominion KX101 to the target server via a video connection and an integrated USB or PS2, keyboard and mouse "pigtail" attachment.
On most Operating Systems the KX101 keyboard and mouse connections can be hot plugged. Additionally, KX101 can be swapped while the target server is still on, thus minimizing server downtime.
With embedded Keyboard and Mouse emulation (KME) circuitry, the server will boot up properly while the KX101 is attached to it, even if the KX101 does not have power.
Connectivity Features
Provides an always available, user assigned, KVM-over-IP port to allow unblocked access to a target server.
Extends Raritan's superior KVM Interface Module (KIM) video compression circuitry, allowing users to access Dominion KX101 from anywhere on the network (LAN, WAN, Internet), to troubleshoot, reconfigure, reboot and conduct overall server maintenance remotely.
Specifications
Dimensions
4.055"x2.193"x1.063"; 103x740x27mm
Weight
0.629lbs; 0.286kg
Power
AC/DC (100-240V~/ 6VDC) power adapter
Or Power over Ethernet (PoE)
- Mid-Span Power Insertion
- Signal-Pair Power Insertion
Connectors
Screen resolutions
PC graphic mode - Up to 1600 x 1200 @ 60 Hz
SUN video mode - 640 x 480 @ 60/72/75/85 Hz
- 800 x 600 @ 56/60/72/75/85 Hz
- 1024 x 768 @ 60/70/75/85 Hz
- 1152 x 864 @ 60/75 Hz
- 1280 x 1024 @ 60 Hz
- 1600 x 1200 @ 60 Hz
Local connectionsSerial Admin Console Port - 1 RJ11 port for RS232 serial communication connection
Remote connectionsNetwork - One 10/100 Ethernet (RJ45) port
Protocol - TCP/IP, HTTP, HTTPS, UDP, RADIUS, LDAP, SNTP, DHCP
IndicatorsBlue RARITAN back-lit logo - Boot up and power-level Green LED - Network Activity
