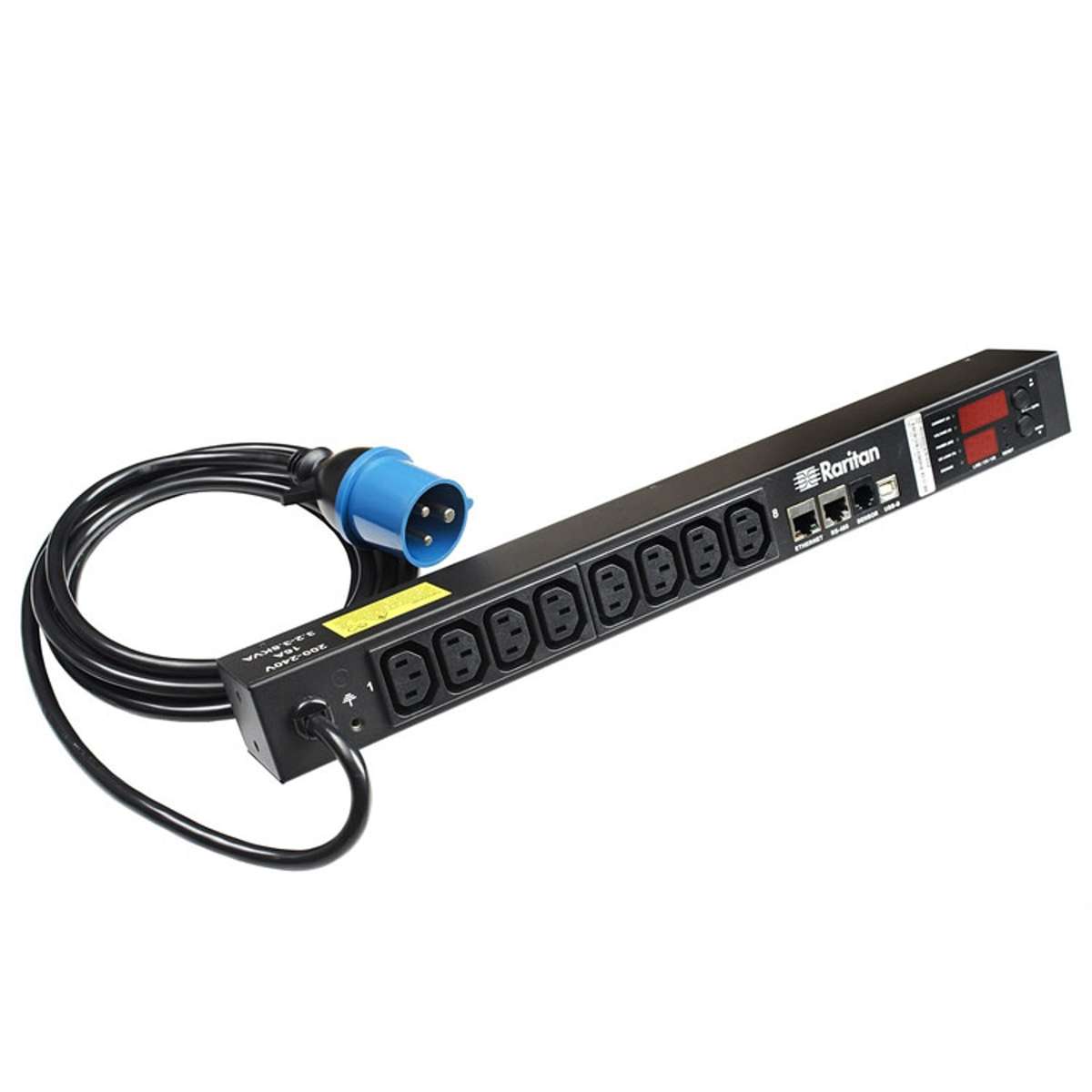

Upgrade your data center power management with the Raritan PXE-1190R, a reliable single-phase intelligent rack PDU designed for real-time energy metering. This model provides detailed visibility into power usage across your rack, including per-line metering of voltage, current, power, and more. With support for multiple environmental sensors and a user-selectable onboard display, it ensures that your infrastructure is running safely and efficiently.
Perfect for enterprises and server environments, this refurbished model offers quality performance with essential monitoring capabilitieswithout remote switching. Built with an IEC 60309 input plug, eight IEC C13 outputs, and robust support for environmental monitoring, it is ideal for IT admins looking for accuracy and dependability in a power distribution solution.
Key Features & Benefits
Real-time metering of Voltage, Current, kW, kVA, kWh, and Power Factor
3-digit LED display for local monitoring per line
IEC 60309 2P+E 6h 16A input with 3m cord for easy installation
8 x IEC320 C13 output receptacles
Compatible with Raritan sensors for Temperature, Humidity, Airflow & more
Rack-mountable using RACK-KIT-PXE-1190R
CE certified and ISO/IEC 62053-21 1% metering accuracy
Robust design rated for up to 16A and 3.7kVA power capacity
Ideal Uses
Server racks requiring accurate energy metering without outlet switching
Data centers monitoring power per input line
Environments where environmental sensor integration is required
IT admins needing local visual feedback via LED display
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Model: PXE-1190R
Energy Metering: Voltage, Current, Active Power (kW), Apparent Power (kVA), Energy (kWh), Power Factor
Metering Accuracy: ISO/IEC 62053-21 1%
Remote Outlet Switching: No
Per Input Line Metering: Yes
Branch Circuit Metering: No
Environmental Sensor Ready: Yes
Sensor Compatibility: Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, Contact Closure
Networking: 10/100 BaseT Ethernet
Display: 3-digit LED, user-selectable per-line metric
Input Plug: IEC 60309 2P+E 6h 16A (2P3W)
Nominal Voltage: 230V
Max/Rated Input Current: 16A
Power Capacity: 3.7kVA
Cord Length: 3m
Receptacles (Output): 8 x IEC320 C13
Overload Protection: Not Applicable
Dimensions (WxDxH): 440mm x 53mm x 44mm (17.3in x 2.1in x 1.7in)
Unit Weight: 1.5 kg
Shipping Weight: 2.75 kg
Shipping Dimensions: 269mm x 315mm x 560mm
Mounting: RACK-KIT-PXE-1190R
Operating Temperature: Up to 50°C
Humidity: 85% RH
Elevation: 010,000 ft
Certifications: CE
Warranty: 3 Month Carry-in Warranty
What's in the Box: Raritan PXE-1190R PDU Unit Only
