Like new, never used.
SD Card pre-loaded with NOOBS (easy Raspbian installation) (if you want Raspbian installation before shipping please specify in comments, no screen will then be needed, just connect to network)

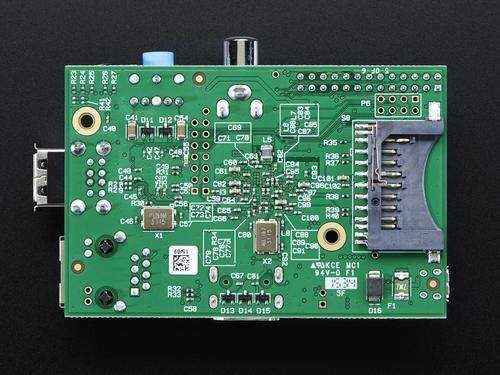

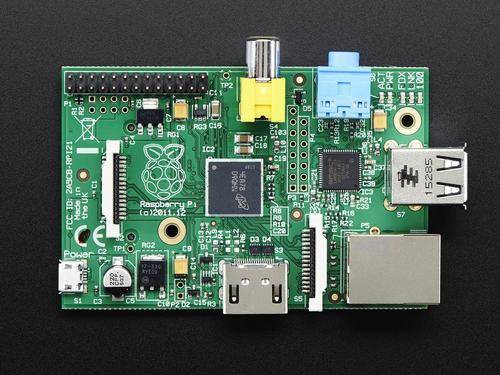

SOC: Broadcom BCM2835
CPU: 700MHz Single Core ARM1176JZF-S
Memory 512 MB
USB: 2 (via the on-board 3-port USB hub)
Video Input: 15-pin MIPI camera interface (CSI) connector, used with the Raspberry Pi camera or Raspberry Pi NoIR camera
Video Output: HDMI (rev 1.3 & 1.4), composite video (RCA jack)
Audio Output: Analogue via 3.5 mm phone jack; digital via HDMI and, as of revision 2 boards, I²S
On-Board Storage: SD / MMC / SDIO card slot
On-board network: 10/100 Mbit/s Ethernet (8P8C) USB adapter on the USB hub
GPIO: 8× GPIO plus the following, which can also be used as GPIO: UART, I²C bus, SPI bus with two chip selects, I²S audio +3.3 V, +5 V, ground.
An additional 4× GPIO are available on the P5 pad if the user is willing to make solder connections
Power Rating: 700 mA (3.5 W)
Size: 85.60 mm × 56.5 mm (3.370 in × 2.224 in), not including protruding connectors
