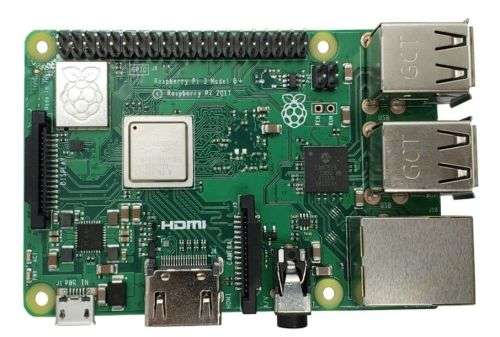

Raspberry Pi 3 Model B+, Single Board Computer, RPI3-MODBP
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Includes the raspberry pi, a case and the power cable.
Description:

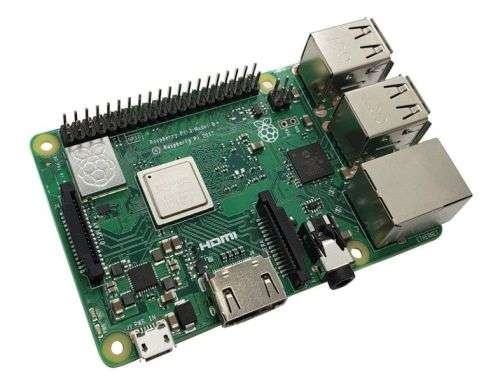

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad-core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.
Broadcom BCM2837B0, Cortex-A53, 64-bit, quad-core SoC @ 1.4GHz
1GB LPDDR2 SDRAM
2.4GHz/5GHz IEEE 802.11 b/g/n/ac Wireless LAN (WLAN)
Bluetooth Low Energy v4.2 (BLE)
Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
4 x USB 2.0 Ports
Extended 40-pin GPIO Header
Full-Size HDMI, MIPI DSI display port, MIPI CSI camera port
4-pole stereo audio/composite video output port
MicroSD card slot for operating system and data storage
Power over Ethernet (PoE) enabled (requires separate PoE HAT)
Power supply requirements - 5V/2.5A DC via micro USB or GPIO
Applications
Embedded Design & Development, Electronics Design, Hobby & Education, Communications & Networking, Consumer Electronics, IoT (Internet of Things)
