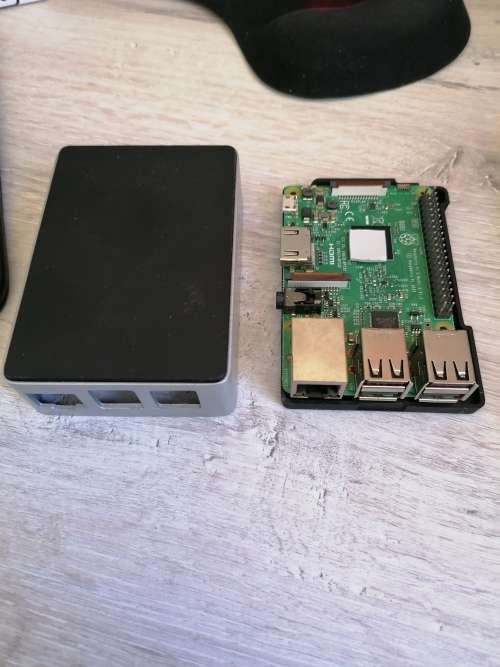

Raspberry Pi 3 - Model B with Flirc case

Raspberry Pi 3 - Model B plus Flirc Raspberry Pi casing

Specifications

• Processor
  • Broadcom BCM2387 chipset.
  • 1.2GHz Quad-Core ARM Cortex-A53 (64Bit)
  • 802.11 b/g/n Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
• GPU
  • Dual Core VideoCore IV® Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode.
  • Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
• Memory
  • 1GB LPDDR2
• Operating System
  • Boots from Micro SD card, running a version of the Linux operating system or Windows 10 IoT
• Dimensions
  • 85 x 56 x 17mm
• Power
  • Micro USB socket 5V, 2.5A if you want to add some power hungry USB devices

Connectors

• Ethernet
  • 10/100 BaseT Ethernet socket
• Video Output
  • HDMI (rev 1.3 & 1.4)
  • Composite RCA (PAL and NTSC)
• Audio Output
  • Audio Output 3.5mm jack
  • HDMI
  • USB 4 x USB 2.0 Connector
• GPIO Connector
  • 40-pin 2.54 mm (100 mil) expansion header: 2x20 strip
  • Providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines
• Camera Connector
  • 15-pin MIPI Camera Serial Interface (CSI-2)
• Display Connector
  • Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane
• Memory Card Slot
  • Push/pull Micro SDIO
