* Important Notes
** Please Note
*** This product should only be connected to an external power supply rated at 5V/3A DC or 5.1V/3A DC minimum current.
*** A good quality 2.5A power supply can be used provided downstream USB peripherals consume less than 500mA in total.
*** Any external power supply used with the Raspberry Pi 4 Model B shall comply with relevant regulations and standards applicable in the country of intended use.
*** This product should be operated in a well-ventilated environment. If used inside a case, the case should not be covered.
*** This product should be placed on a stable, flat, non-conductive surface in use and should not be contacted by conductive items.
*** The connection of incompatible devices to the GPIO connection may affect compliance, result in damage to the unit, and invalidate the warranty.
*** All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met.
*** Examples of such peripherals include but are not limited to keyboards, monitors, and mice when used in conjunction with the Raspberry Pi.
*** Where peripherals are connected that do not include the cable or connector, the added cable or connector must offer adequate insulation and comply with safety requirements.
** Safety Instructions (To avoid malfunction or damage to this product please observe the following)
*** Do not expose to water, or moisture or place on a conductive surface whilst in operation.
*** Do not expose it to heat from any source; Raspberry Pi 4 Model B is designed for reliable operation at normal ambient room temperatures.
*** Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
*** Avoid handling the printed circuit board whilst it is powered and only handle by the edges to minimize the risk of electrostatic discharge damage.
** Accessories (Links)
*** Case - https://www.geewiz.co.za/chassiscomputer-cases/156701-raspberry-pi-4-cooling-case-with-heatsink-fan.html
*** HDMI - https://www.geewiz.co.za/hdmi/33142-hdm040-micro-hdmi-male-to-hdmi-female-connector.html
*** PSU - https://www.geewiz.co.za/power-supplies/105021-raspberry-pi-4-usb-c-153w-power-supply-51v-3a-black-.html
Introduction

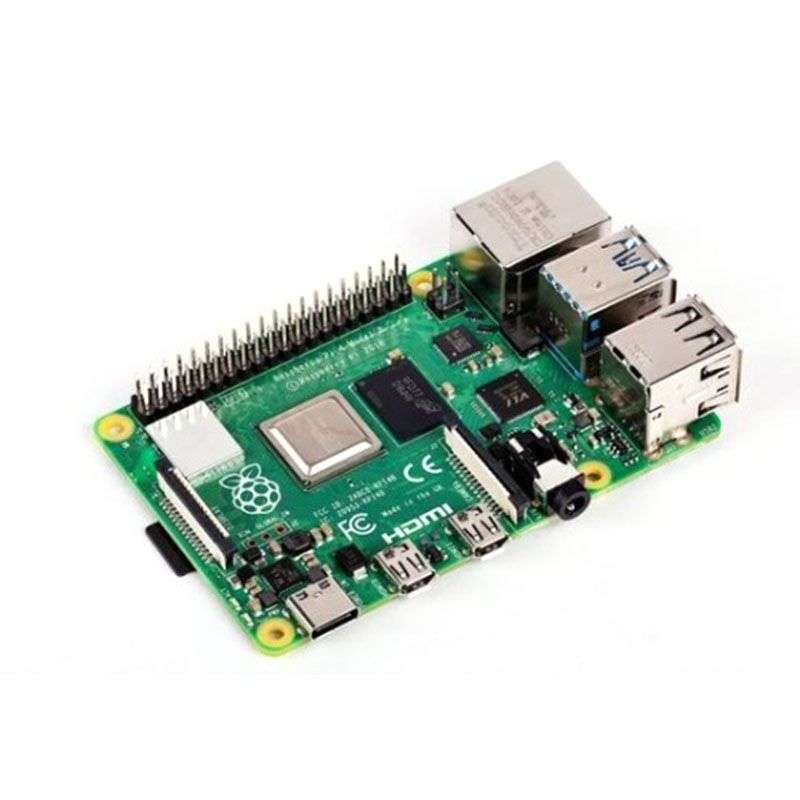

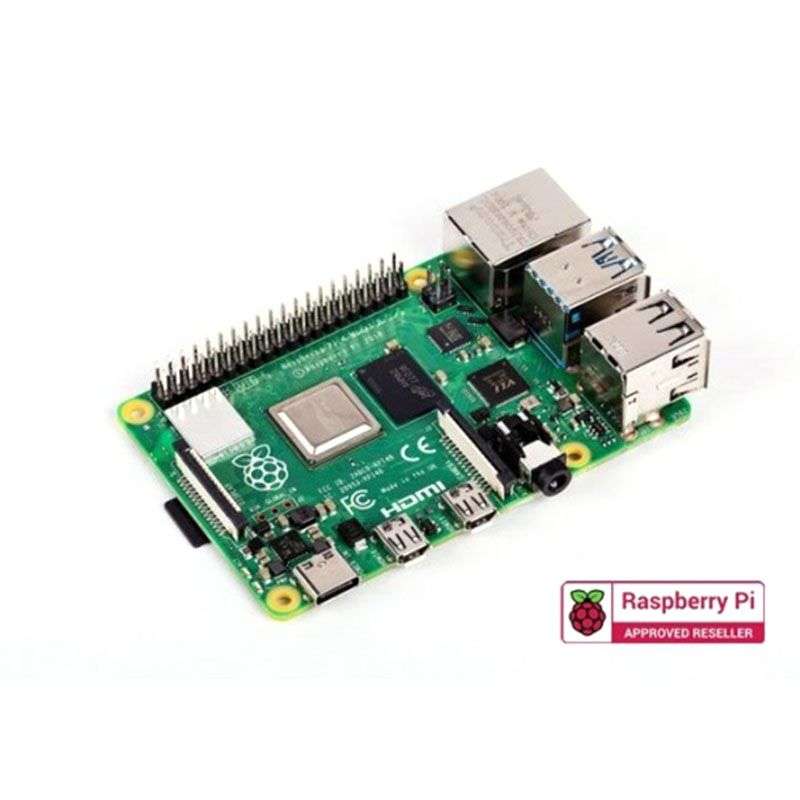

Raspberry Pi 4 Model B is the latest in the Raspberry Pi computer range, offering significant improvements over the Raspberry Pi 3 Model B+.
Maintains backward compatibility and similar power consumption.
Provides desktop performance comparable to entry-level x86 PC systems.
Features
High-performance 64-bit quad-core processor (Broadcom BCM2711, Cortex-A72) @ 1.5GHz
Dual-display support at resolutions up to 4K through two micro-HDMI ports
Hardware video decode at up to 4Kp60
RAM options: 1GB, 2GB, 4GB LPDDR4
Dual-band wireless LAN (2.4/5.0GHz), Bluetooth 5.0, BLE
Gigabit Ethernet, 2 × USB 3.0 ports, 2 × USB 2.0 ports
GPIO: Standard 40-pin GPIO header, fully backward-compatible
Video & Sound: 2 × micro HDMI ports (up to 4Kp60), MIPI DSI display port, MIPI CSI camera port, 4-pole stereo audio, and composite video port
Multimedia: H.265 (4Kp60 decode), H.264 (1080p60 decode, 1080p30 encode), OpenGL ES 3.0 graphics
SD Card Support: Micro SD card slot for operating system and data storage
Input Power: 5V DC via USB-C connector (minimum 3A1), 5V DC via GPIO header (minimum 3A1)
Power over Ethernet (PoE) enabled with a separate PoE HAT
Operating Environment: 0—50°C
Compliance: Modular compliance certification for dual-band wireless LAN and Bluetooth
Production Lifetime: Remains in production until at least January 2026
Specifications
Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory: Options of 1GB, 2GB, 4GB LPDDR4
Connectivity: Wireless LAN, Bluetooth 5.0, BLE, Gigabit Ethernet, 2 × USB 3.0, 2 × USB 2.0
GPIO: Standard 40-pin GPIO header
Video & Sound: 2 × micro HDMI ports (up to 4Kp60), MIPI DSI display port, MIPI CSI camera port, 4-pole stereo audio, and composite video port
Multimedia: H.265 (4Kp60 decode), H.264 (1080p60 decode, 1080p30 encode), OpenGL ES 3.0 graphics
SD Card Support: Micro SD card slot
Input Power: 5V DC via USB-C connector (minimum 3A1), 5V DC via GPIO header (minimum 3A1), Power over Ethernet (PoE) enabled (requires separate PoE HAT)
Operating Environment: 0—50°C
Compliance: Visit Raspberry Pi Conformity for local and regional product approvals
Production Lifetime: Until at least January 2026
Additional Specifications
CPU Speed: 1.4 GHz
Networking Standards: N
Wireless Band: 5 GHz
USB Connectivity: USB 3.0
RAM Types: DDR-4
Transmission Speed: 1000 Mbps
CPU Socket Types: TR4
Device Operating Systems: Linux
CPU Type: Cortex A Series
