Overview:

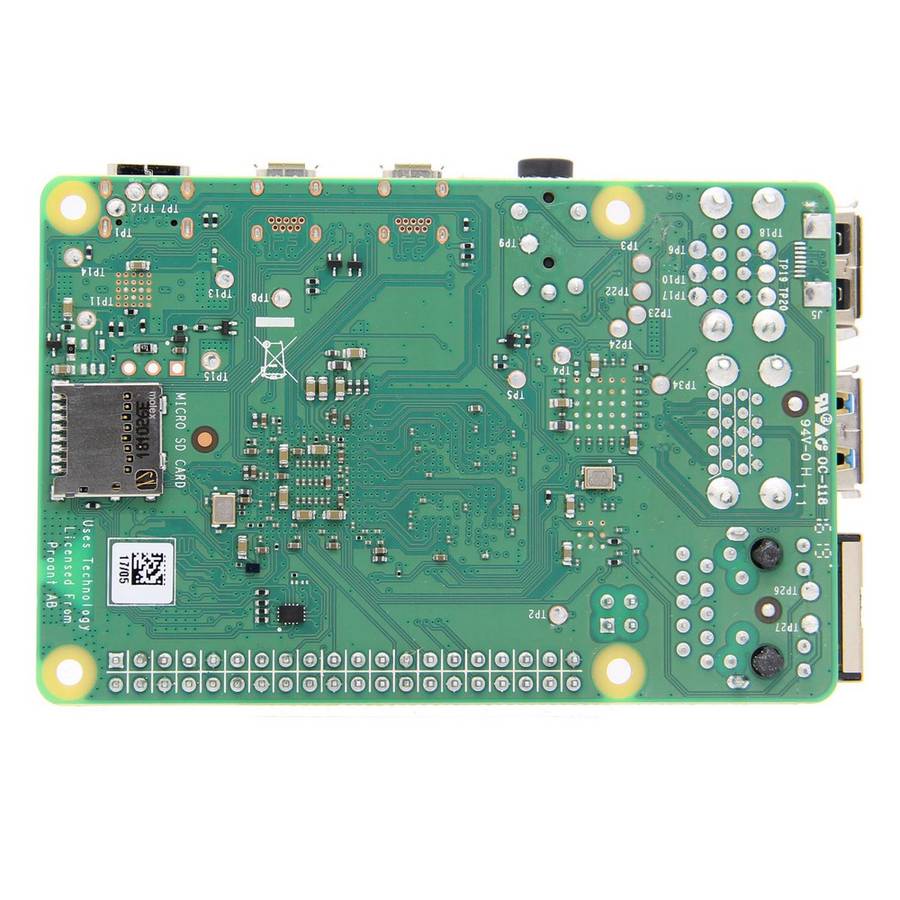

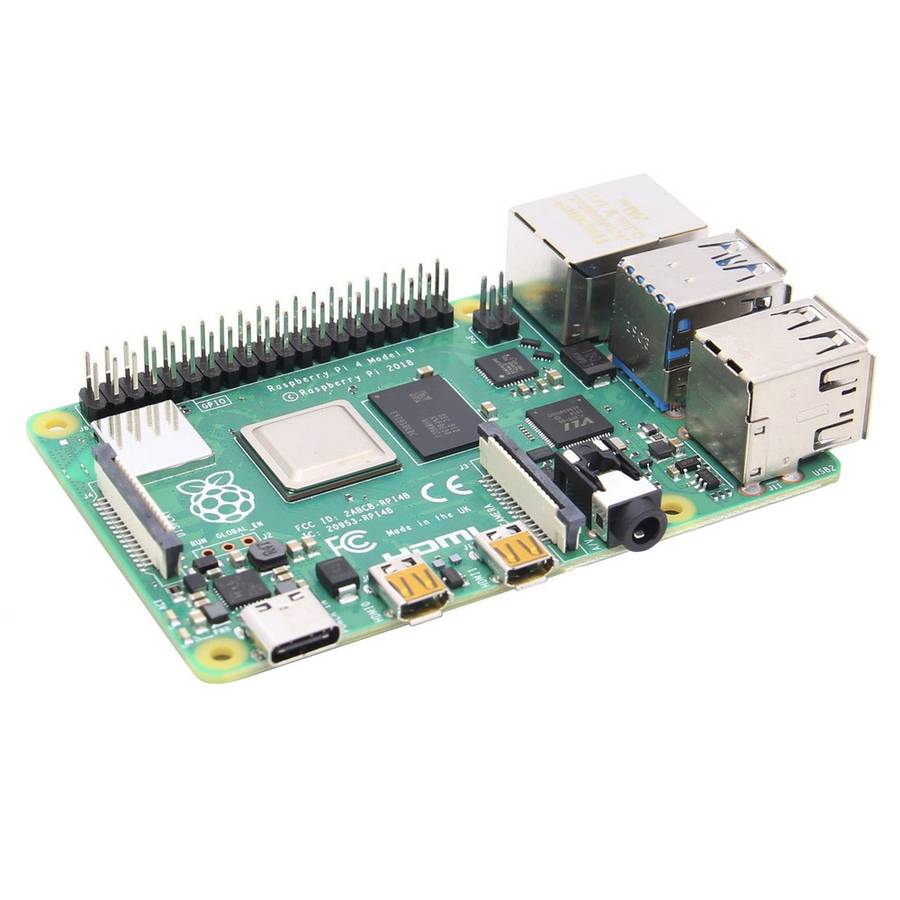

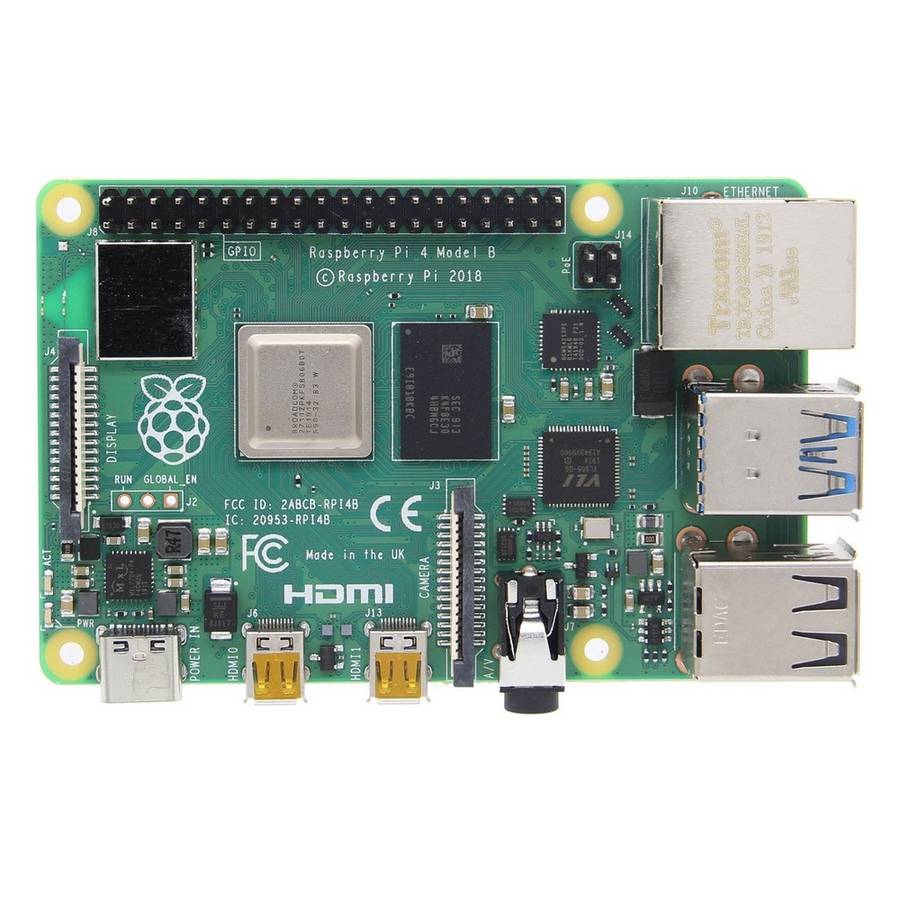

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.
This products key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).
The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.
| Specification | |
| ITEM | DESCRIPTION |
| Processor | Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
| Memory | 1GB, 2GB, 4GB or 8GB LPDDR4(depending on model) |
| Connectivity | 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE Gigabit Ethernet 2 USB 3.0 ports 2 USB 2.0 ports. |
| GPIO | Standard 40-pin GPIO header (fully backwards-compatible with previous boards) |
| Video & sound | 2 micro HDMI ports (up to 4Kp60 supported) 2-lane MIPI DSI display port 2-lane MIPI CSI camera port 4-pole stero audio and composite video port |
| Multimedia | H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES, 3.0 graphics |
| SD card support | Micro SD card slot for loading operating system and data storage |
| Input power | 5V DC via USB-C connector (minimum 3A1) 5V DC via GPIO header (minimum 3A1) Power over Ethernet (PoE)enabled (requires separate PoE HAT) |
| Environment | Operating temperature 050C |
| Compliance | For a full list of local and regional product approvals, please visit |
| Production lifetime | The Raspberry Pi 4 Model B will remain in production until at least January 2026. |
Case Specification:
Material: Aluminum Alloy
Size: 96x63x32mm
Color: Sliver
Package Included:
1* Raspberry Pi 4B Motherboard
1* Sliver Case
