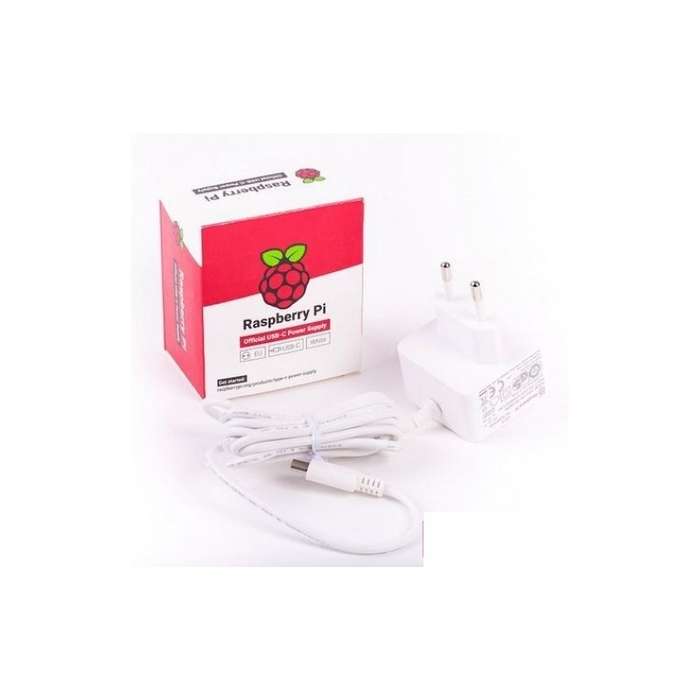

Raspberry Pi 4 USB-C 15.3W Power Supply 5.1V 3A - White

PRODUCT DESCRIPTION

The Raspberry Pi USB-C power supply is designed to power the latest Raspberry Pi 4 Model B computers, which were released in June 2019.

PRODUCT SPECIFICATIONS

Output

• Output voltage: +5.1V DC
• Minimum load current: 0A
• Nominal load current: 3.0A
• Maximum power: 15.3W
• Load regulation: ±5%
• Line regulation: ±2%
• Ripple & noise: 120mVp-p
• Rise time: 100ms maximum to regulation limits for DC outputs
• Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
• Protection: Short circuit protection, Overcurrent protection, Over temperature protection
• Efficiency: 81% minimum (output current from 100%,75%, 50%, 25%)72% minimum at 10% load
• Output cable: 1.5m 18AWG
• Output connector: USB Type-C

Input

• Voltage range: 100-240Vac (rated)
• 96-264Vac (operating)
• Frequency: 50/60Hz ±3Hz
• Current: 0.5A maximum
• Power consumption (no load): 0.075W maximum
• Inrush current: No damage shall occur and the input fuse shall not blow

Case material
UL94V-1

AC pin material
Brass (NI plated)
