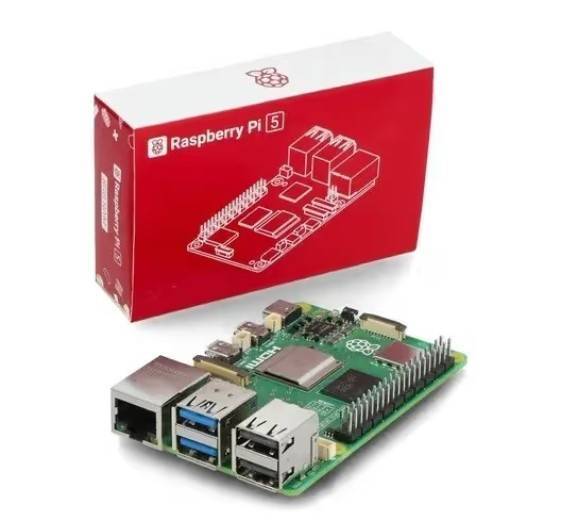

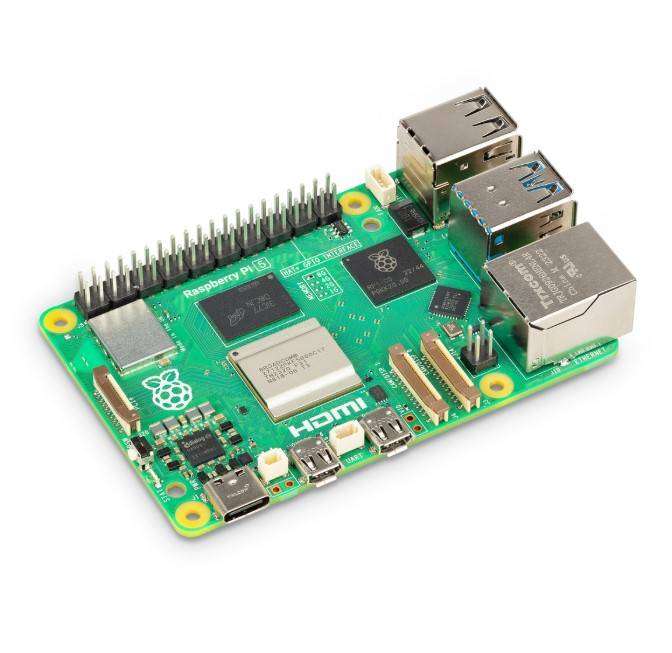

Raspberry Pi 5 4gb

Introducing the Raspberry Pi 5 (4GB) the next leap in compact computing.

The Raspberry Pi 5 brings a huge performance boost over the previous generation, powered by a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz. Expect 23× faster CPU performance compared to the Raspberry Pi 4, enhanced graphics from the upgraded VideoCore VII GPU, dual 4Kp60 HDMI outputs, and an all-new image processing pipeline for exceptional camera performance. Whether you're using it as a mini desktop, media center, DIY project hub, or for industrial applications, the Pi 5 delivers a smoother, faster, and more capable experience.

For the first time ever, the Raspberry Pi platform uses its own in-house silicon. The new RP1 southbridge chip dramatically upgrades I/O performance:

• USB bandwidth is significantly increased for quicker data transfers

• Modern 4-lane MIPI camera/display connectors replace older interfaces, offering triple the total bandwidth

• microSD card speeds are doubled with SDR104 support

• A PCIe 2.0 x1 lane opens the door for high-speed expansion options such as NVMe (adapter required)

Key Specifications (4GB Model)

Processor

• Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76

• Built-in cryptography extensions

• 512KB L2 cache per core + 2MB shared L3 cache

Features

• VideoCore VII GPU supporting Vulkan 1.2 & OpenGL ES 3.1

• Dual 4Kp60 HDMI ports with HDR

• 4Kp60 HEVC decoder for ultra-smooth playback

• 4GB LPDDR4X-4267 RAM

• Dual-band Wi-Fi (802.11ac) + Bluetooth 5.0 / BLE

• High-speed microSD slot (SDR104 support)

• 2 × USB 3.0 ports (5Gbps each)

• 2 × USB 2.0 ports

• Gigabit Ethernet with PoE+ support (PoE+ HAT required)

• 2 × 4-lane MIPI camera/display connectors

• PCIe 2.0 x1 expansion lane (requires M.2 HAT or adapter)

• USB-C power input (5V/5A, PD compatible)

• Standard 40-pin GPIO header

• Built-in real-time clock (external battery required)

• On-board power button
