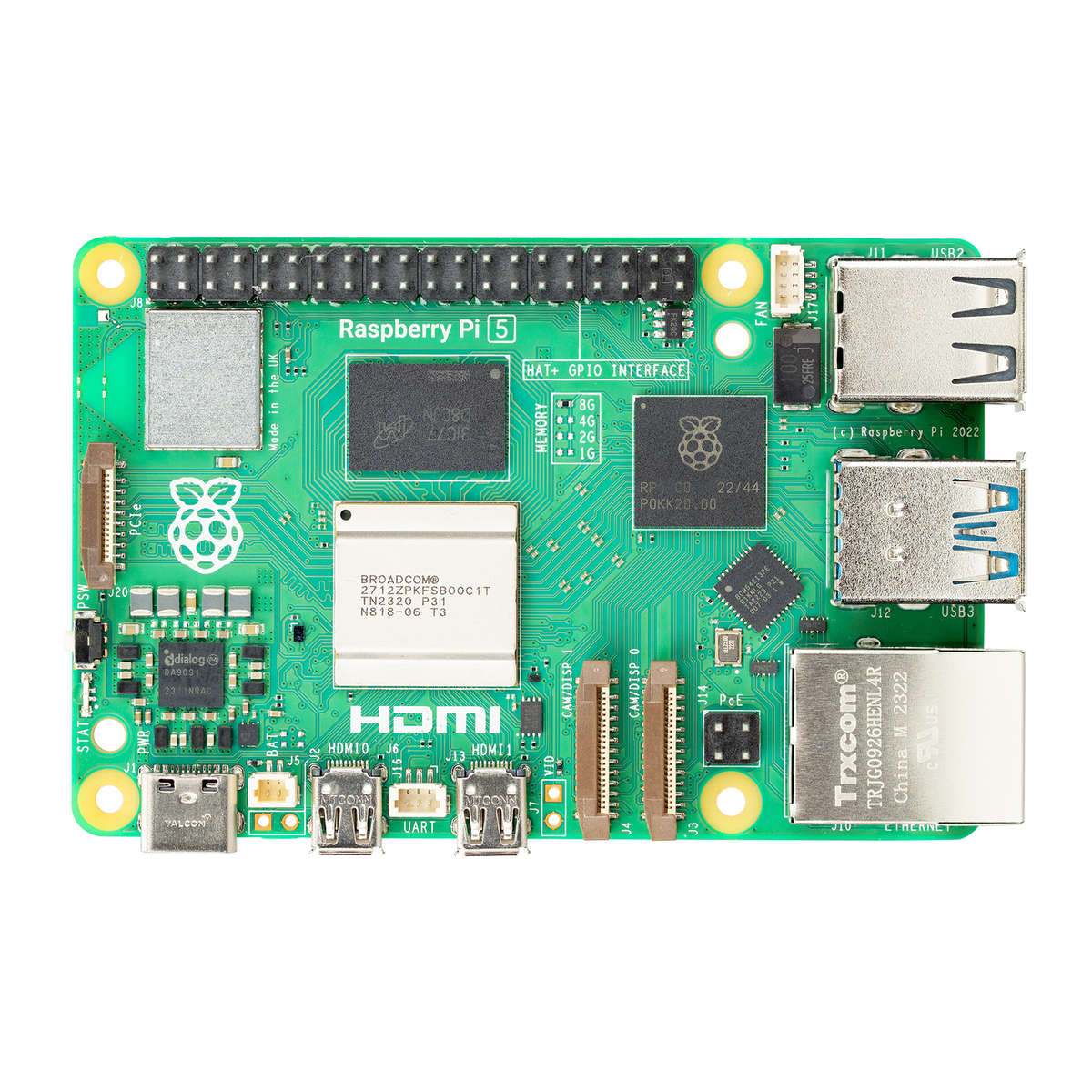

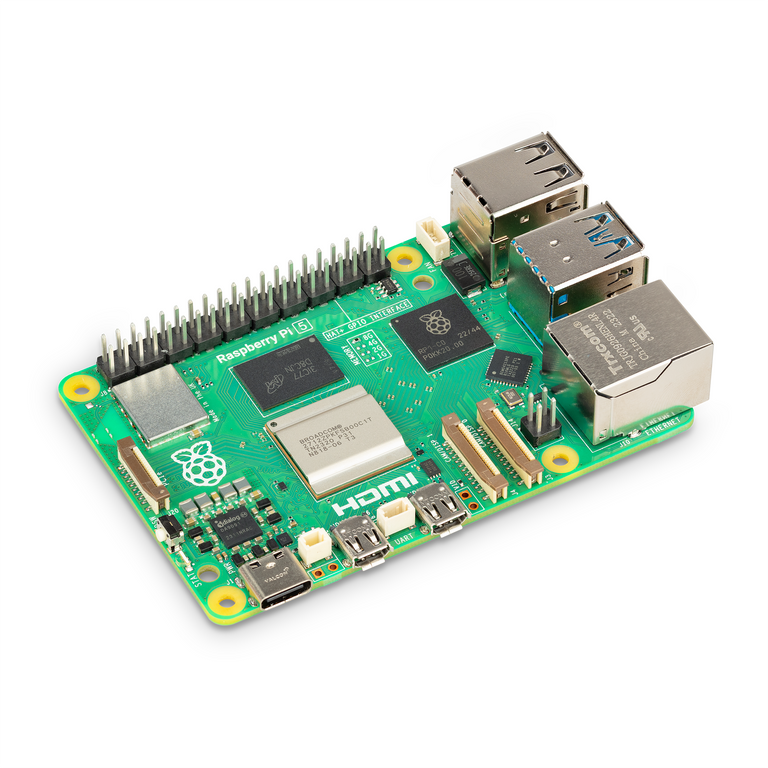

Raspberry Pi 5 8GB

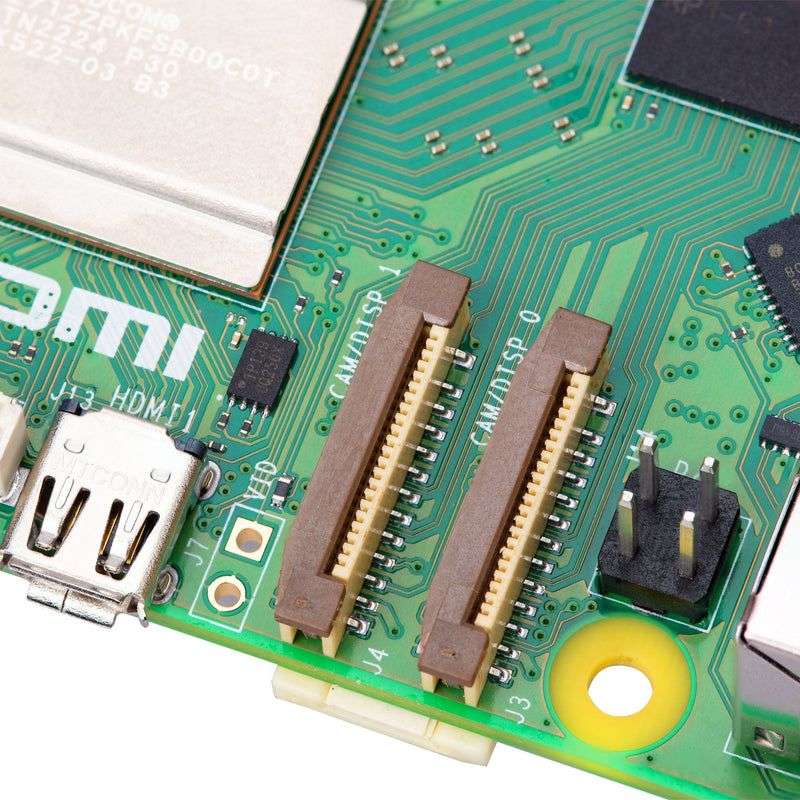

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz,Raspberry Pi 5 delivers a 2-3 increase in CPU performance relative to RaspberryPi 4. Alongside a substantial uplift in graphics performance from an 800MHzVideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-artcamera support from a rearchitected Raspberry Pi Image Signal Processor, itprovides a smooth desktop experience for consumers, and opens the door to newapplications for industrial customers.For the first time, this is a full-size Raspberry Pi computer using siliconbuilt in-house at Raspberry Pi. The RP1 "southbridge" provides the bulk of theI/O capabilities for Raspberry Pi 5, and delivers a step change in peripheralperformance and functionality. Aggregate USB bandwidth is more than doubled,yielding faster transfer speeds to external UAS drives and other high-speedperipherals; the dedicated two-lane 1Gbps MIPI camera and display interfacespresent on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPItransceivers, tripling total bandwidth, and supporting any combination of up totwo cameras or displays; peak SD card performance is doubled, through supportfor the SDR104 high-speed mode; and for the first time the platform exposes asingle-lane PCI Express 2.0 interface, providing support for high-bandwidthperipherals.SpecificationsProcessorBroadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU,with cryptography extensions, 512KB per-core L2 caches, and a2MB shared L3 cacheFeaturesVideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2Dual 4Kp60 HDMI display output with HDR support4Kp60 HEVC decoderLPDDR4X-4267 SDRAM(4GB and 8GB SKUs available at launch)Dual-band 802.11ac Wi-FiBluetooth 5.0 / Bluetooth Low Energy (BLE)microSD card slot, with support for high-speed SDR104 mode2 USB 3.0 ports, supporting simultaneous 5Gbps operation2 USB 2.0 portsGigabit Ethernet, with PoE+ support(requires separate PoE+ HAT)2 4-lane MIPI camera/display transceiversPCIe 2.0 x1 interface for fast peripherals(requires separate M.2 HAT or other adapter)5V/5A DC power via USB-C, with Power Delivery supportRaspberry Pi standard 40-pin headerReal-time clock (RTC), powered from external batteryPower button
