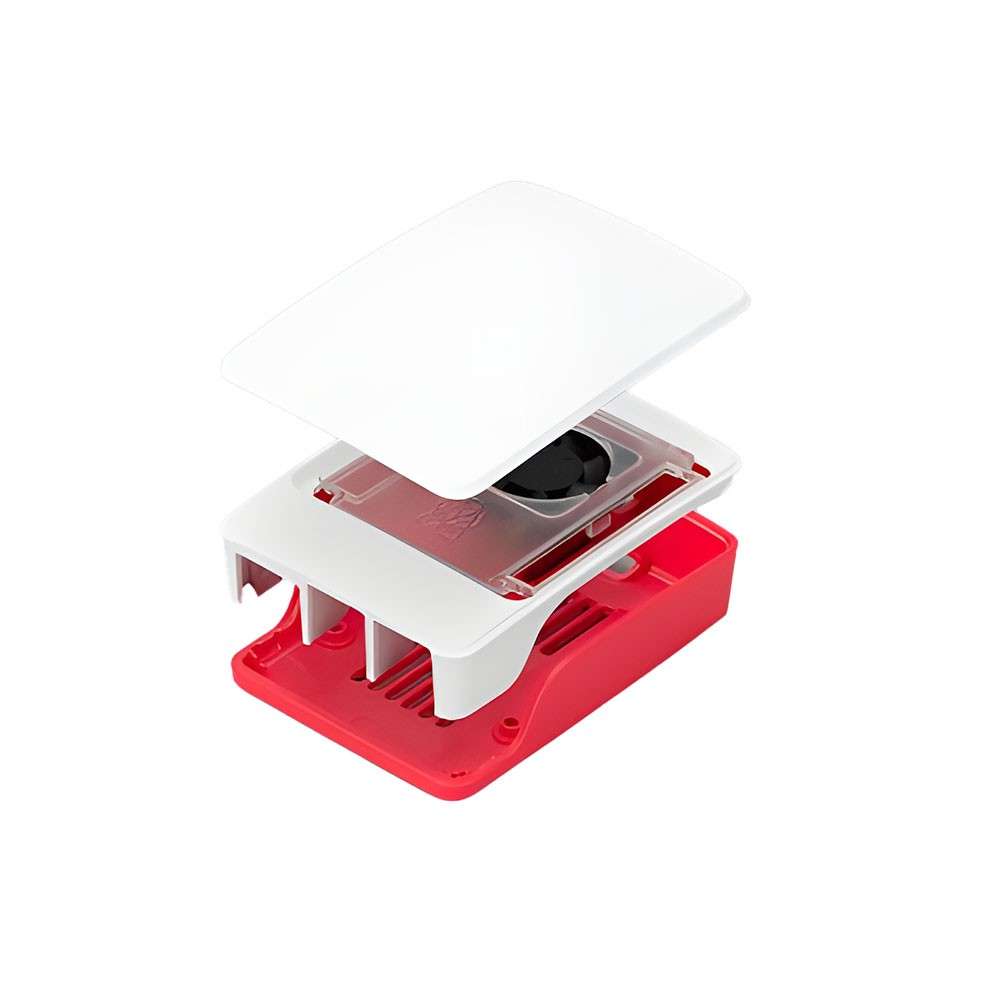

Raspberry Pi 5 Official Red/White Case - with fan and heatsink

The official Case for Raspberry Pi 5 comes with an integrated fan. HATs can be fitted directly on top of Raspberry Pi 5 by removing the fan, or on top of the fan by use of 14mm high standoffs and a 19mm GPIO extender. These are available separately from Authorised Resellers.
The integrated 2.79 (max) CFM fan has fluid dynamic bearings selected for low noise and an extended operating lifetime. Air is drawn in through a 360° slot under the lid and blown over a heatsink attached to the BCM2712, then exhausted through connector apertures and vents in the base.

Features

Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5
12mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor
Easily removable lid exposes fan and breakout slot for cables and GPIO
Integrated mounting features allow for case stacking
HATs can be mounted to the enclosure with stand-offs and GPIO header extenders (not included)
Four silicone feet for the case are included

Specifications

Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
Fan speed control: Pulse width modulation control with tachometer
Maximum airflow: 2.79 CFM
Maximum fan speed: 8000 RPM +/- 15%
Case material: ABS (base, frame, lid) and PC (fan assembly)

What's in the box?

1 x red/white case with fan and heatsink
