Raspberry Pi 7 inch HD 1024 * 600 Touch Screen Module Kit

Package weight: 0.44 kg
Raspberry Pi 7 inch HDMI HD 1024 * 600 Touch Screen Module Kit
Note: The LCD screen without HDMI or VGA cable


The module color (green / blue) will send random delivery
Feature:
Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator
Rated power: 6-7W
Signal input: 2 AV + VGA + HDMI (HDMI 1.2)
Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board
Resolution: 1024 * 600
Plug and Play: Support
OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
Control: Multi-function OSD operation or potentiometer adjust the brightness and color
Features: Using mature program, clear display
Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format
LCD screen parameters:
Display size: 7 inch

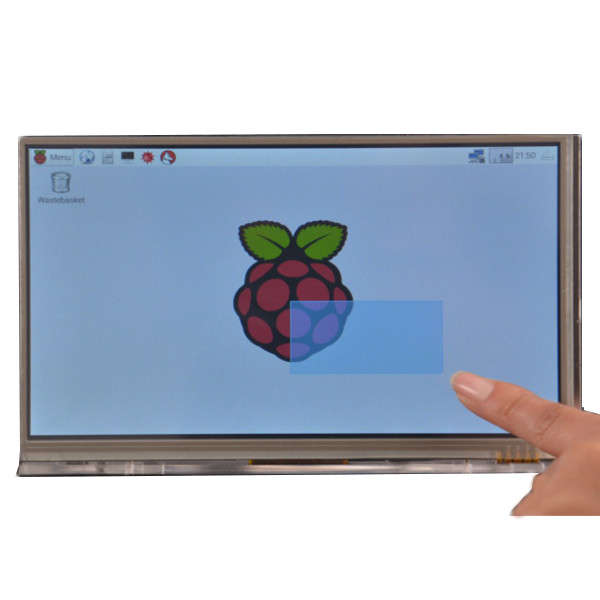

Screen: Touch screen
Dimensions: 165 (W) × 100 (H) × 5 (D) mm
Viewing area: 154.08 (H) × 85.92 (V)
Resolution: 1024 × 3 (RGB) × 600
Point distance: 0.05 (W) × 0.15 (H) mm
Viewing angle: L70 ° R70 ° U50 ° D60
Panel type: TFT
Display color: 262K
Contrast ratio: 500: 1
Brightness: 220cd / m2
Interface type: Digital
The number of connection: 50 PIN Digital (TTL) TCON
Backlight: LED
Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

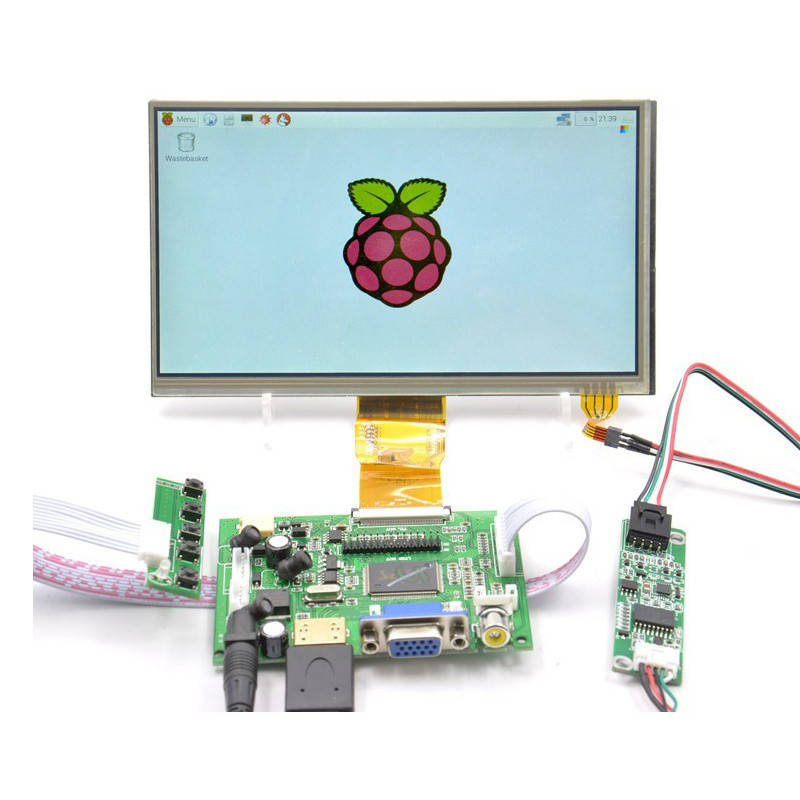

Package includes:
1 x 7-inch LCD screen (with touch screen)

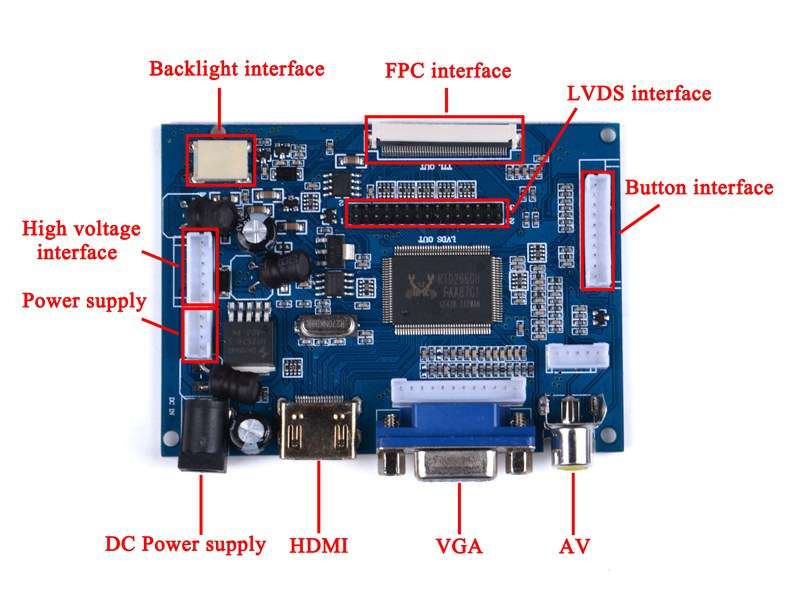

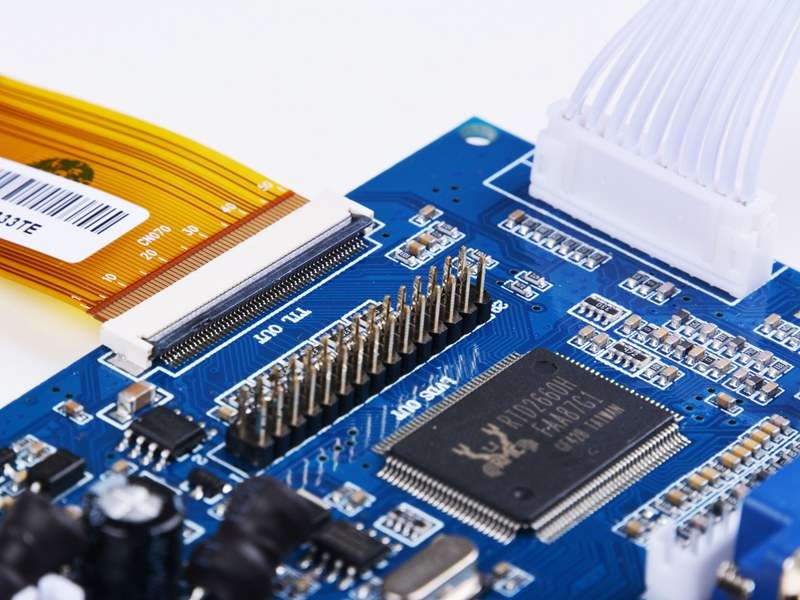

1 x LCD Driver board (Green board / blue board send random delivery)
1 x Touch Driver board (Green board / blue board send random delivery)
1 x USB line(connected to touch driver board)
1 x Rainbow line(connected to touch screen and it's driver board)
1 x White cable (connected to the key board)

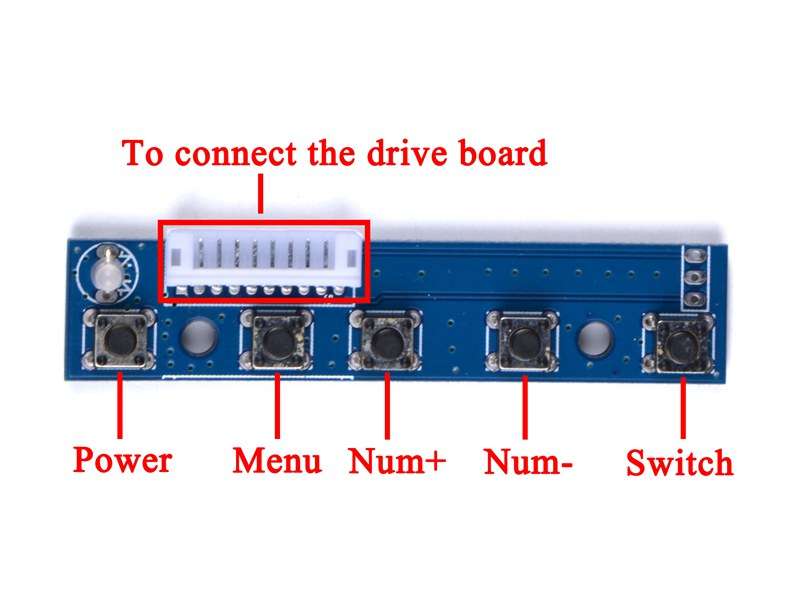

1 x Long key board (Green board / blue board send random delivery)
1 x USB to DC5.5 power line
