Raspberry Pi 7" Touchscreen Display (Official)

Please note: You will have to buy a different DSI cable to use with Raspberry Pi 5.

This seven-inch, 800 x 480 touchscreen display lets you create interactive Raspberry Pi projects like tablets, entertainment systems, and information dashboards. It's powered from your Raspberry Pi; no separate power supply is required.

Raspberry Pi OS provides touchscreen drivers with support for ten-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

The display connects to Raspberry Pi via an adapter board that handles power and signal conversion. Only two connections to your Raspberry Pi are required: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for Raspberry Pi 400 and the Raspberry Pi Zero line.

Specifications

• Display size (diagonal): 7 inches
• Display format: 800 (RGB)×480 pixels
• Active area: 154.08mm×85.92mm
• Touch panel: True multi-touch capacitive touch panel with up to 10 points of absolution

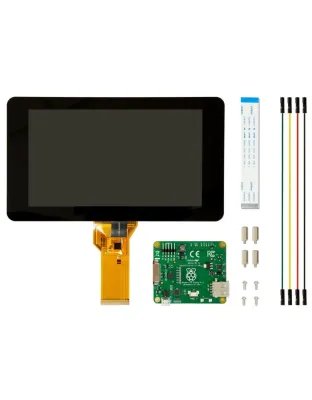

What's in the box?

1 x 7" Touchscreen Display with Adapter Board
1 x DSI Ribbon cable
4 x screws (used to mount the Raspberry Pi board to the back of the display
2 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the power is shared across both units)

Please Note. The Raspberry Pi Board and accessories are not included with this product.
