Raspberry Pi CM3+/8GB Single Board Computer, Compute Module 3 +

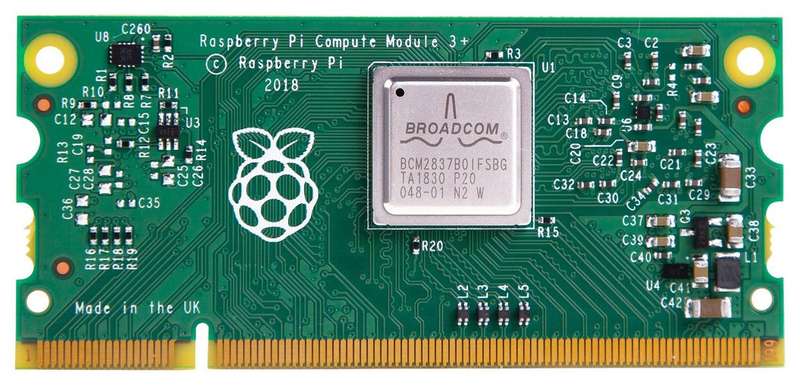

CM3+/8GB Single Board Computer, Raspberry Pi Compute Module 3 +, BCM2837B0 SoC,8GB eMMC MemoryThe Raspberry Pi Compute Module 3 + (CM3+) areDDR2-SODIMM-mechanically-compatible System on Modules (SoMs) containing aprocessor, memory, eMMC Flash (except "Lite" version) and supporting powercircuitry. These modules allow a designer to leverage the Raspberry Pi hardwareand software stack in their own custom systems and form factors. In addition themodules have extra I/O interfaces over and above what is available on theRaspberry Pi model A/B boards, providing more options and fostering rapiddevelopment for the designer. The Compute Module 3 + 8GB has a 200 pin SODIMMdesign and contains 8GB of on-board eMMC flash memory.Features: * Broadcom BCM2837B0 Cortex-A53 64-bit 1.2GHz SoC * 1GB LPDDR2 SDRAM Memory * 8GB eMMC flash memory storage on-board * Production life guaranteed until January 2025 * H.264, MPEG-4 decode (1080p30), H.264 encode (1080p30), OpenGL ES 1.1, 2.0 graphics * Compatible with NOOBS30_0Applications:Embedded Design & Development, Electronics Design, Industrial, IIoT (IndustrialInternet of Things), IoT (Internet of Things)Specifications: * Silicon Manufacturer: Broadcom * Silicon Family Name: BCM2xxx * Core Architecture: ARM * Core Sub-Architecture: Cortex-A53 * Silicon Core Number: BCM2837B0 * Kit Contents: Compute Module 3 w/8GB eMMC Memory * Product Range: Compute Modules 3+
