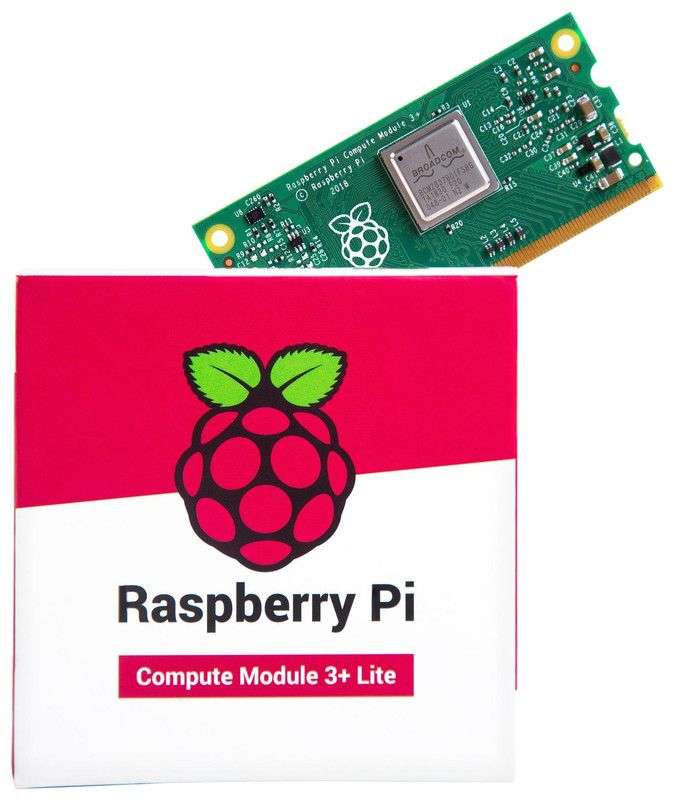

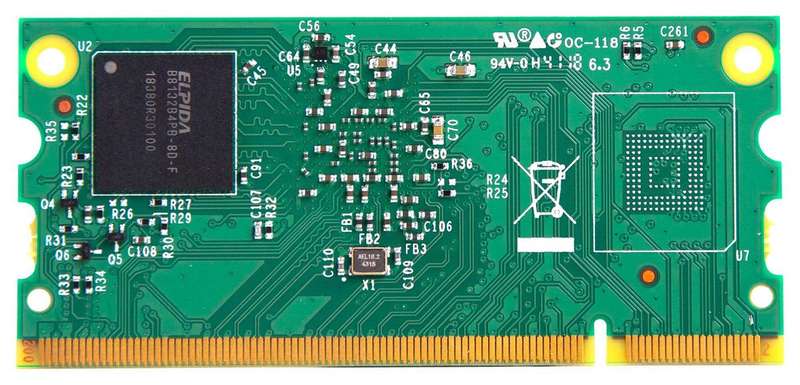

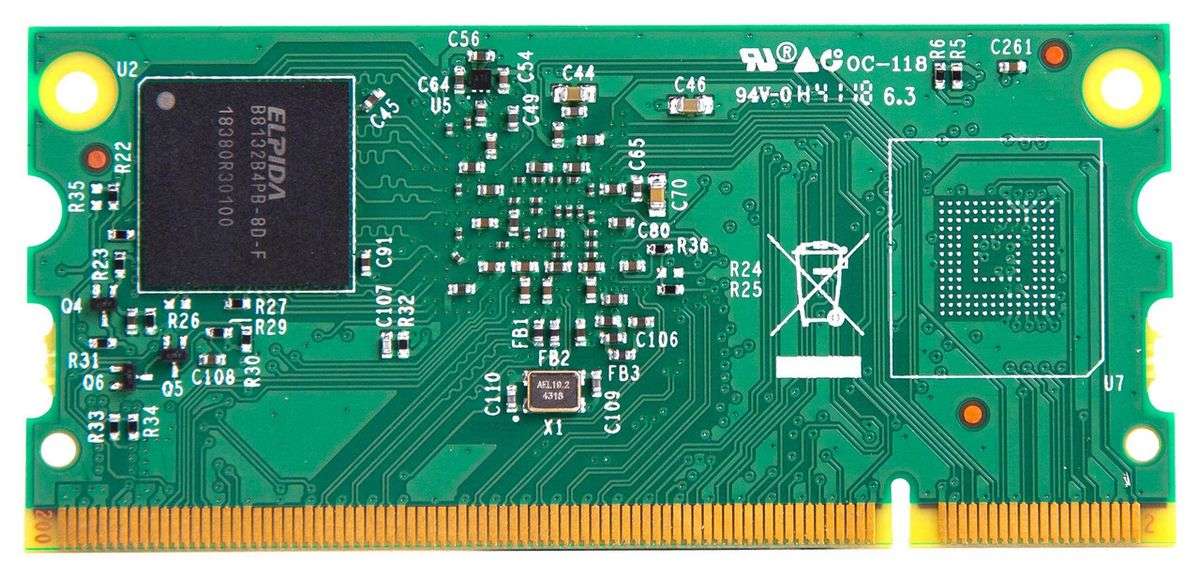

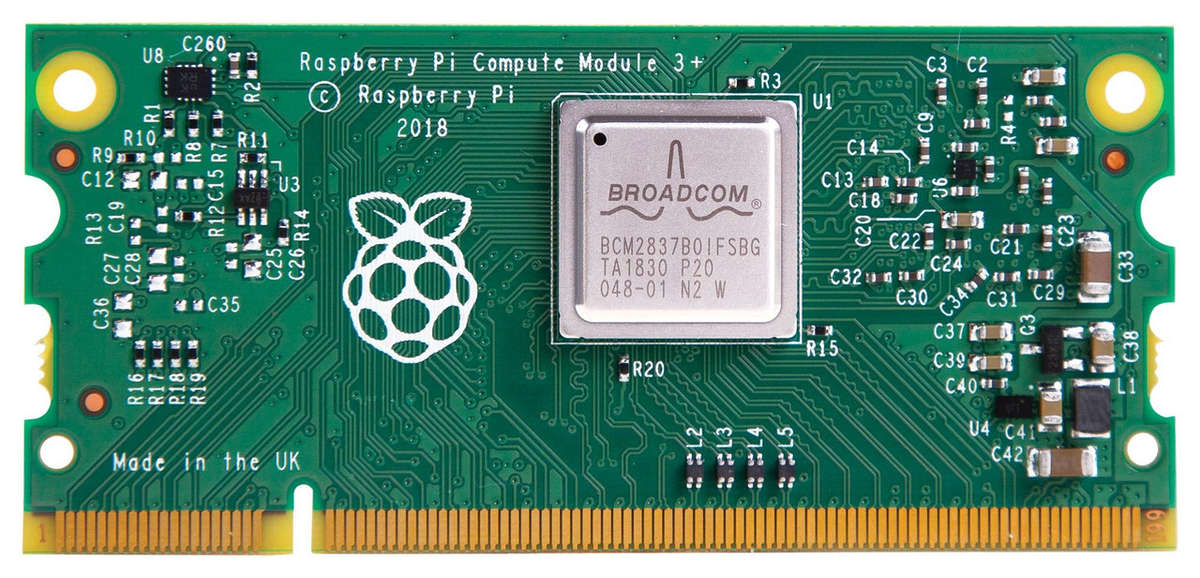

Raspberry Pi CM3+/LITE Single Board Computer, Compute Module 3 + Lite

CM3+/LITE Single Board Computer, Raspberry Pi Compute Module 3 + Lite, BCM2837B0SoCThe Raspberry Pi Compute Module 3 + Lite (CM3+ Lite) are aDDR2-SODIMM-mechanically-compatible System on Modules (SoMs) containing aprocessor, memory, and supporting power circuitry. These modules allow adesigner to leverage the Raspberry Pi hardware and software stack in their owncustom systems and form factors. In addition the modules have extra I/Ointerfaces over and above what is available on the Raspberry Pi model A/Bboards, providing more options and fostering rapid development for the designer.The Compute Module 3 + has a 200 pin SODIMM design. The Compute Module 3 + Litecan be interfaced with external eMMC devices or SD Cards. * Broadcom BCM2837B0 Cortex-A53 64-bit 1.2GHz SoC * 1GB LPDDR2 SDRAM Memory * Production life guaranteed until January 2024 * H.264, MPEG-4 decode (1080p30), H.264 encode (1080p30), OpenGL ES 1.1, 2.0 graphics * Compatible with NOOBS30_0 * The CM3+ Lite brings the SD card interface to the module allowing connection to an SD Card or eMMC flash deviceApplications:Embedded Design & Development, Electronics Design, Industrial, IIoT (IndustrialInternet of Things), IoT (Internet of Things)Specifications: * Silicon Manufacturer: Broadcom * Silicon Family Name: BCM2xxx * Core Architecture: ARM * Core Sub-Architecture: Cortex-A53 * Silicon Core Number: BCM2837B0 * Kit Contents: Compute Module 3 Lite * Product Range: Compute Modules 3+
