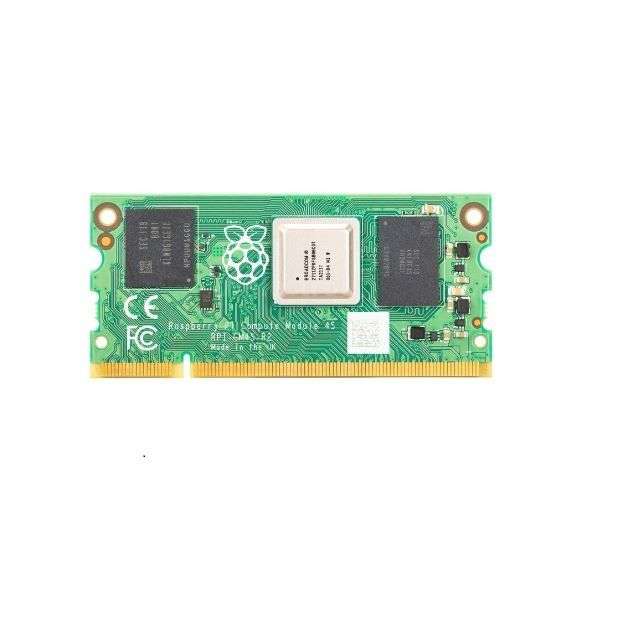

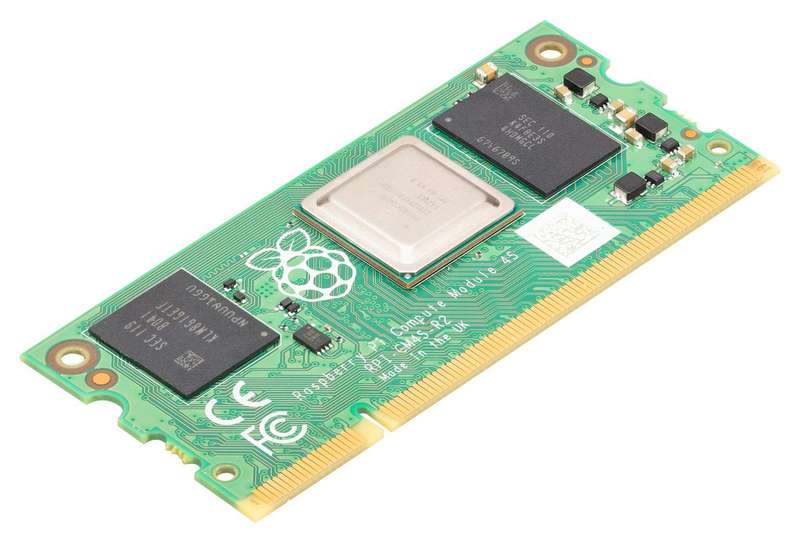

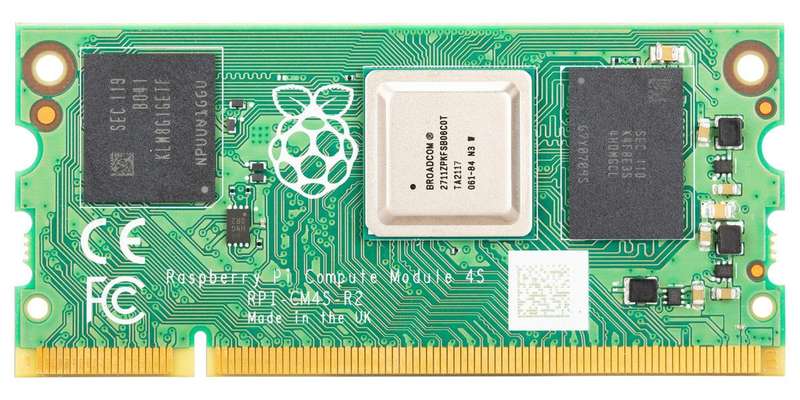

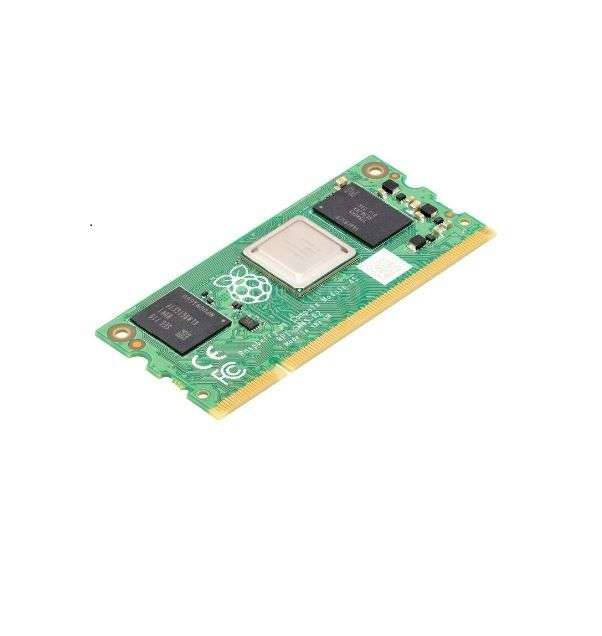

Raspberry-Pi (CM4S01008) Compute Module 4S, ARM Cortex-A72, 1GB RAM

Product InformationSilicon Manufacturer: BroadcomSilicon Family Name: BCM2xxxCore Architecture: ARMCore Sub-Architecture: Cortex-A72Silicon Core Number: 0Kit Contents: Compute Module 4 SODIMM w/ 1GB RAM, 8GB eMMCProduct Range: Raspberry Pi Compute Module 4SProduct OverviewCOMPUTE MODULE 4 SODIMM (CM4S) is a System on Module (SoM) containing processor,memory, eMMC Flash, and supporting power circuitry. It allows a designer toleverage the Raspberry Pi hardware and software stack in their own customsystems and form factors. The design of the CM4S is loosely based on theRaspberry Pi 4 Model B, and for cost-sensitive applications it can be suppliedwithout the eMMC fitted; this version is called the Raspberry Pi Compute Module4 SODIMM Lite (CM4SLite). The CM4S is in the same form factor as the olderRaspberry Pi Compute 3 and 3+ modules, which are mechanically compatible withDDR2-SODIMM.Broadcom BCM2711, quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHzFeatures 1GB RAM, 8GB eMMC storageDDR2-SODIMM-mechanically-compatible form factorH.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)OpenGL ES 3.0 graphics1 × USB 2.0 port (high speed)46 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options1 × HDMI 2.0 ports (up to 4Kp60 supported)MIPI DSI, MIPI CSI-2 interface
