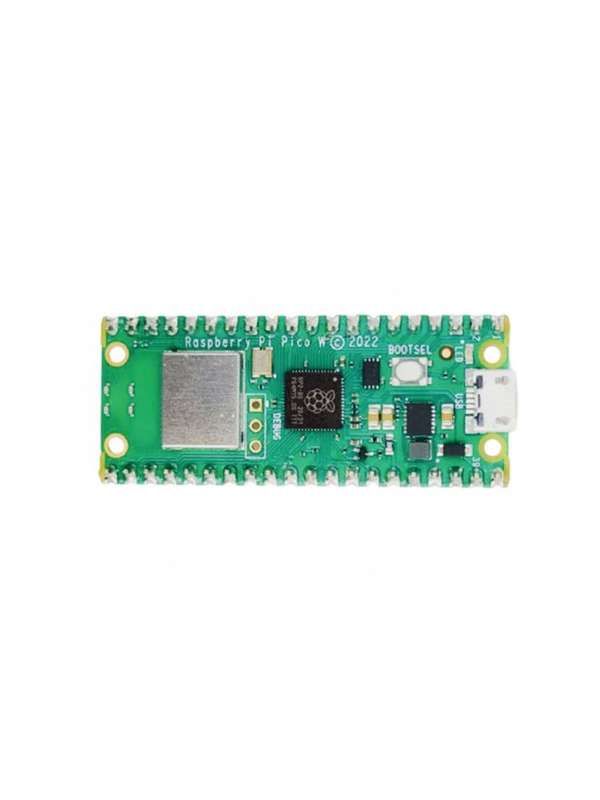

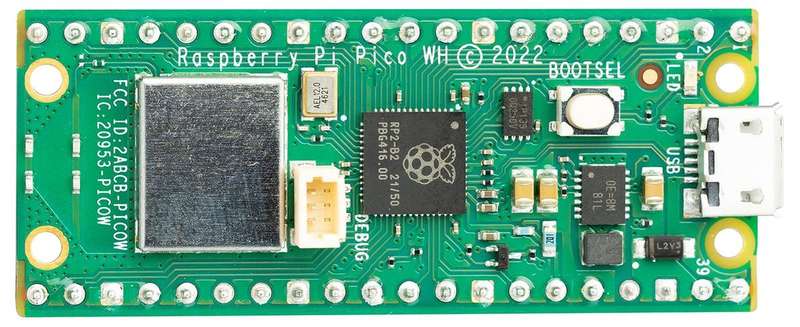

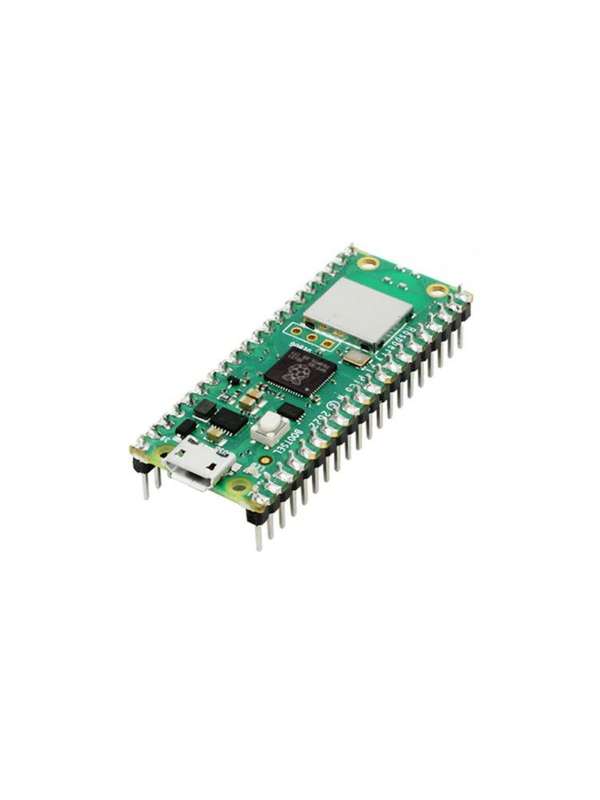

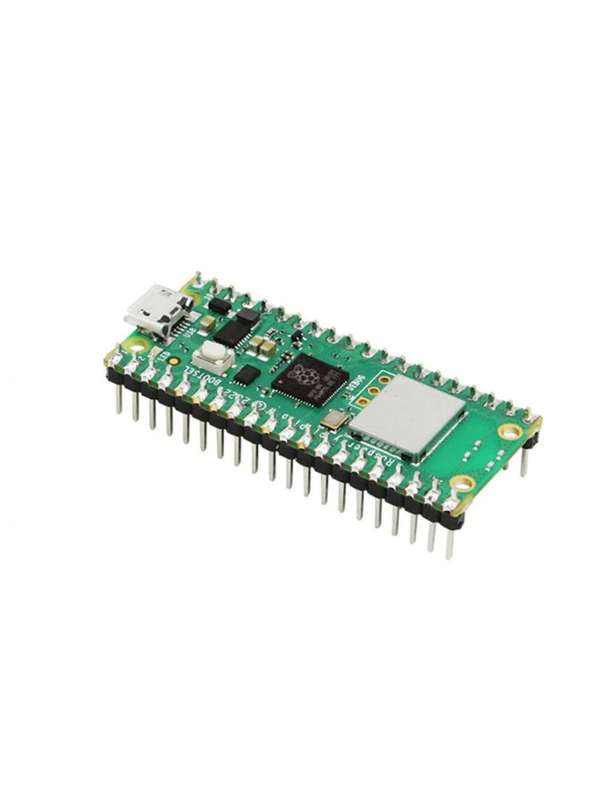

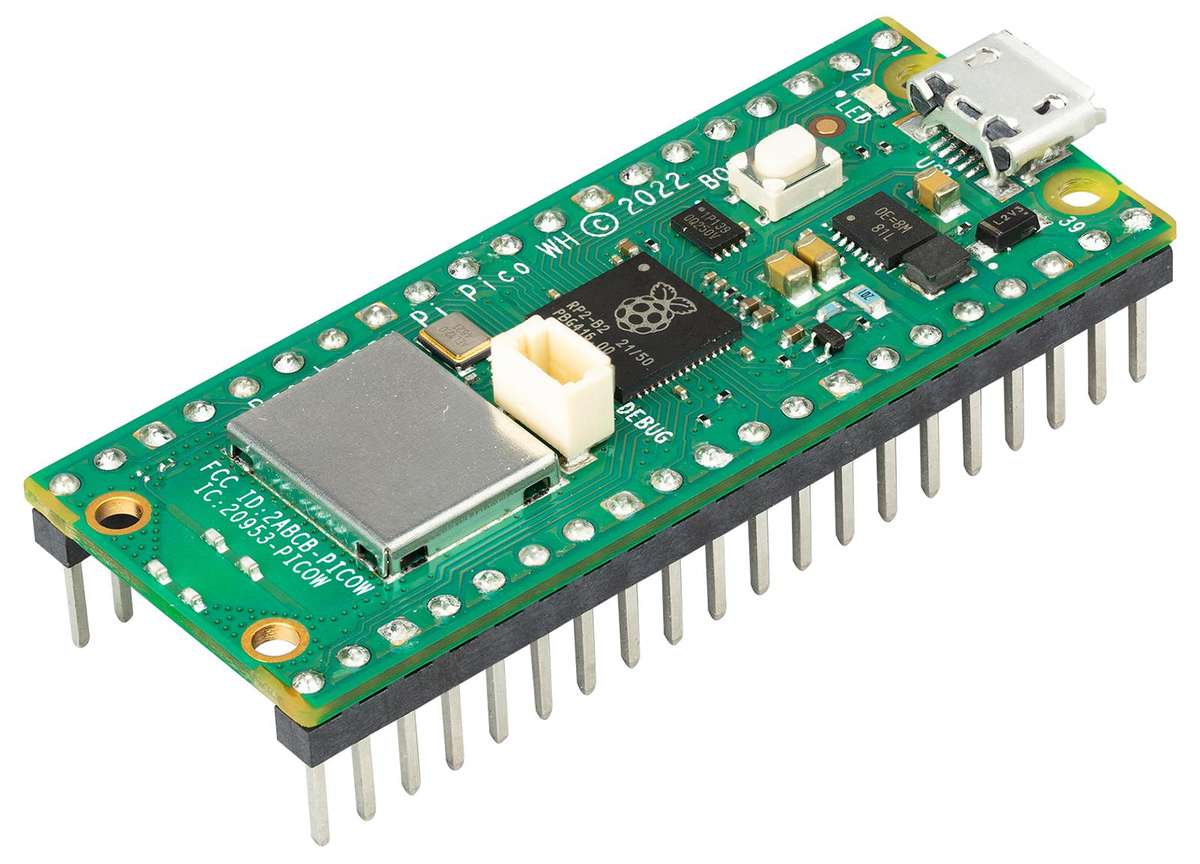

Raspberry Pi (RASPBERRY PI PICO WH) ARM Cortex-M0+Flash, Wifi, With header

Product InformationSilicon Manufacturer: Raspberry PiSOC Type: -No. of Bits: 32bitCore Type: 32-bit RP2040 ARM Cortex-M0+Silicon Family Name: -No. of Cores: 2CoresCore Architecture: ARMGPU: Not AvailableCore Sub-Architecture: Cortex-M0+CPU Speed: 133MHzRAM Memory Size: 264KBSilicon Core Number: RP2040Kit Contents: Raspberry Pi Pico WH BoardUSB Ports: micro USB 1.1 x 1HDMI Ports: -General Purpose I/O: 26PinsMemory Card Support: -Wi-Fi Connectivity: 802.11nBluetooth Connectivity: Not AvailablePower Inlet: microUSB, GPIOProduct Range: Raspberry Pi PicoProduct OverviewThe Pico WH maintains the power and flexibility of the previous model, addingboth wireless connectivity and pre-populated headers for greater integrationinto IoT applications. WiFi support is enabled via the integrated InfineonCYW43439 chip and contained in a metal shield can to reduce compliance costs.The Pico features flexible digital interfaces and can be easily programmed overUSB using C/C++ or MicroPython, thanks to a comprehensive SDK with softwareexamples and full documentation.Raspberry Pi designed RP2040 chipsetDual core ARM Cortex M0+ processor at up to 133MHz with variable core frequencyIntegrated Infineon CYW43439 chip with WPA3 and SoftAP (up to 4 clients)Supports 2.4GHz 802.11b/g/n wireless LAN connections264kB SRAM & 2MB onboard flash memory26 Multifunction GPIO pins (23x digital only, 3x ADC capable)2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC and 16x controllable PWM channelsAccurate clock and timer on chipTemperature sensorAccelerated floating point librariesMicro USB port for power & data3-pin JST-SH debug headerPre-soldered headersxxFootnotesxxNote: Initially WiFi will be supported by MicroPython only with C/C++ support tocome later. While the CYW43439 chip supports Bluetooth, this will not besupported on the Pico WH at launch.
