Raspberry Pi Touchscreen Display (Official)

The display will technically work with the Model A and Model B boards (connecting it to the DSI port on the Pi board), however the mounting holes on the back of the display will only line up with the newer board design (A+, B+, Pi2, Pi3 and Pi4)

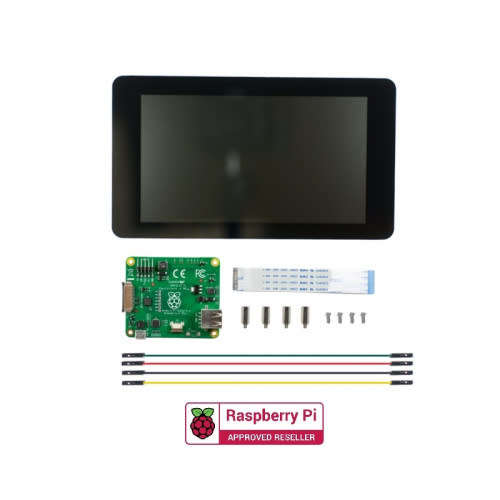

The eagerly awaited 7" Official Raspberry Pi Touchscreen Display is finally hear! Boasting a neat 800×480 display @ 60fps resolution, and 10 point capacitive touchscreen, this 7" screen for the Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects.

The 800x 480 display connects via an adapter board which handles power and signal conversion.Only two connections to the Pi are required; power from the Pis GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pis. Touchscreen drivers with support for 10-finger touch and an on-screen keyboard are available on the latest Raspbian OS for full functionality without a physical keyboard or mouse.

• Turn your Raspberry Pi into a touchscreen tablet, infotainment system, or standalone device.
• Truly Interactive - the latest software drivers will support a virtual on screen keyboard, so there is no need to plug in a keyboard and mouse.
• Make your own Internet of Things (IoT) devices including a visual display. Simply connect your Raspberry Pi, develop a Python script to interact with the display, and youre ready to create your own home automation devices with touchscreen capability.
• A range of educational software and programs available on the Raspberry Pi will be touch enabled, making learning and programming easier on the Raspberry Pi.
• Raspberry Pi mounting points on the back

Technical Specification:

• 7 Touchscreen Display.
• Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
• Viewable screen size: 155mm x 86mm
• Screen Resolution 800 x 480 pixels
• 10 finger capacitive touch.
• Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.
• Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.

N.B. Will require the latest version of Raspbian OS to operate correctly.
