Product Description

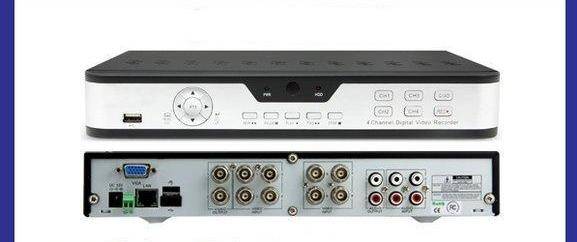

4CH H.264 D1/HD1/CIF DVR
TECHNOLOGY:
H.264 video compression
Embedded Linux technology
ADPCM audio compression format
Design for SATA HDD technology (HDD x 1/ not included)
HEXAPLEX operation – Record, Live view, Playback, Backup, Network Control & Mobile Phone Monitoring
VIDEO
Real-time monitoring for all channels @ D1
4 channels video inputs
D1, HD1, CIF video recording resolution adjustable
Real-time recording @ HD1
Support Quad, Single channel & Auto Sequence display for live view
AUDIO
4 channels audio inputs & 2 channels audio outputs
DISPLAY OUTPUT ( VGA Output & BNC output )
VGA x 1 with selectable 800 x 600, 1024 x 768, 1280 x 1024, 1440 x 900 or 1920 x 1200 screen resolution
Graphics & Windows OSD interface
RECORDING
Support Pre Recording
Frame rate adjustable for each channel
multiple recording & alarm modes
Motion detection: settable area & sensitivity
Programmable recording video quality for each channel
PLAYBACK
Playback search by time & date or event
Support quad or single channel playback
NOTIFICATIONS & ALARM BUZZER
Email notifications (1 email account) & buzzer alert
OSD screen message event alert on live display monitor
VIDEO / AUDIO BACK-UP
Video & Audio back-up to any USB 2.0 storage device
NETWORK & REMOTE ACCESS MONITORING FUNCTION
Remote access view, playback, DVR setup, back-up video files & record via IE
Support CMS monitoring up to 49CH video
Control PTZ camera Zoom, Focus, Iris, Auto-pan, Preset SEQ & Preset memory function
Support PPPoE, DHCP & Static IP address & DDNS
Support 5 users simultaneously for remote access view
Mobile Phone view based on Symbian S60 3rd, Symbian S60 5th, Windows Mobile, iPhone, Blackberry & Android.
PTZ CONTROL FUNCTION
Support every channel as PTZ camera
On video screen mouse click PTZ camera pan/tilt control
Built-in RS485 PTZ camera communication data input
PASSWORD & SECURITY
Password protection for menu settings & remote access view
OPERATION
PC mouse & IR remote control operation (included inside)
SPECIAL FUNCTION
Support convert / hide camera display function
System self-recovery with recording & settings memory after power restores
Digital zoom capabilities
Video brightness, contrast, hue & saturation adjustable for each channel
Support daylight saving mode function
Support professional grade CMS
Support set up privacy zone
HDD can be overwritten by days between 1 and 60 days
Support video enlarged– display full screen automatically when alarm is triggered
Support log search
Flexible Customization to meet market requirements
