RCF AM 1125 120W Mixer Amplifier - Black
FEATURES
160 W power amplifier
4 mic-line inputs and 1 AUX IN
VOX facility and phantom power supply on INPUT 1
Low and high impedance spekers output
Dual RCA connectors for INPUT 4 and AUX IN
Ducking control on AUX IN level
AUX output on RCA connector

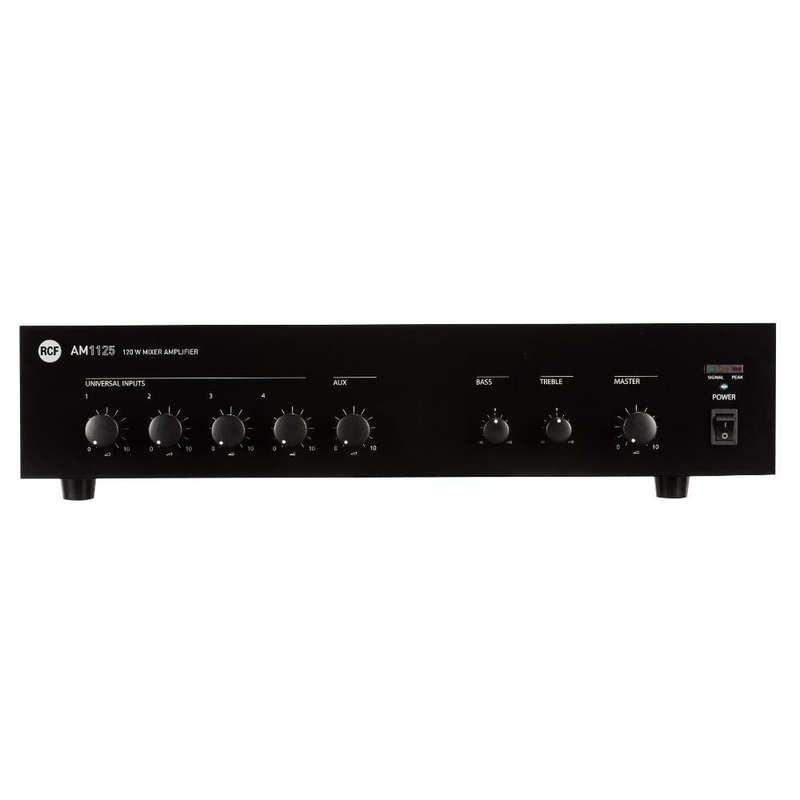

Common tone controls on front panel
24 V dc power supply (batteries)
AM 1125 is a 120W mixer-amplifier with 5 audio inputs. Audio input 1 has phantom power supply and get the priority over the other audio inputs through an external command or automatically thanks to the VOX circuit. Dual RCA connectors can be used to link stereo (unbalanced) sound sources (e.g. CD, MP3 players, tuners, etc.). The amplifier output is available both for low impedance loudspeakers (min. 4 Ohm) or 70/100 V constant voltage lines (for loudspeakers with 70/100 V line transformers). It can also be powered by batteries (24 V dc voltage), in order to ensure its proper operation even when the mains supply is unavailable.
Specifications:
AMPLIFIER SPECIFICATIONS
Output power:
1 x 120 W @ 4 ohm
Output power @ 100 V
1 x 120 W @ 100 V
Frequency Response (-3dB)
60 Hz 15000 Hz
SNR Analog inputs ("A" weighted):
>85 dB
Crosstalk
<85 dB
Distortion (THD+N) @ 1 kHz nominal power
<1.5 %
INPUT SECTION
Total number of inputs
5
Line inputs
1
Line connectors
RCA
Mic+Line inputs
4
Mic+Line connectors
RCA, XLR
Mic+Line Phantom
18 V DC
VOX
Yes
Paging connectors
XLR
General Purpose Inputs (GPI)
1
OUTPUT SECTION
Signal output number
1
Signal output connectors
RCA
Power output connectors
Euroblock
PROCESSING
Tone controls
Yes
CONFIGURATION AND CONTROL
Configuration
Front panel
PROTECTIONS
Cooling
Convection
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
POWER REQUIREMENT
Operating voltage
220-240/115 V~ 50/60Hz
Voltage selection
External
DC power
Yes
DC power value
24 V
Power consumption (MAX)
350 W
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Color
Black
Rack mounting
19", 2U
SIZE
Height
88 mm / 3.46 inches
Width
431 mm / 16.97 inches
Depth
385 mm / 15.16 inches
Weight
7.3 kg / 16.09 lbs
SHIPPING INFORMATION
Package Height
165 mm / 6.5 inches
Package Width
500 mm / 19.69 inches
Package Depth
380 mm / 14.96 inches
Package Weight
8.5 kg / 18.74 lbs
