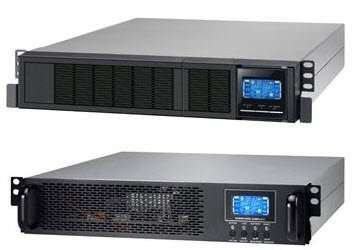

RCT 1000VA / 800W Online Rackmount UPS

Specifications and features

Product Code    RCT-1000-WPRUspacer

CAPACITY    1000 VA / 800 W

PHASE    Single phase with ground

INPUT

Input Voltage Range    55-150 VAC or 110-300 VAC (Based on load at 50%); 85-140VAC or 160-280VAC (Based on load at 100%)

Nominal Voltage    100/110/115/120/127VAC or 200/208/220/230/240VAC

Frequency Range    40Hz ~70 Hz

Power Factor    >= 0.99 @ Nominal Voltage (100% load)

OUTPUT

Voltage Regulation    ± 1%

Output Voltage    100/110/115/120/127VAC or 200/208/220/230/240VAC

Frequency Range (Batt. Mode)    50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz

Transfer Time : AC Mode to Battery Mode    Zero

Transfer Time : Inverter to Bypass    4 ms (Typical)

Transfer Time : Waveform (Batt. Mode)    Pure Sine Wave

Current Crest Ratio    3::1

Harmonic Distortion

Frequency Range (Synchronized Range)    47~53 Hz or 57~63 Hz

EFFICIENCY

Battery Mode    0.83

AC Mode    0.88

BATTERY

Long-run Model : Battery Type    Depending on the capacity of external batteries

Long-run Model : Charging Current (max.)    1A/2A/4A/6A (Adjustable)

Long-run Model : Charging Voltage    27.4 VDC ± 1%, 41.0 VDC ± 1%

Long-run Model : Numbers    2, 3

Standard Model : Battery Type    12 V / 9 AH

Standard Model : Charging Current (max.)    1A

Standard Model : Charging Voltage    27.4 VDC ± 1%

Standard Model : Numbers    2

Standard Model : Typical Recharge Time    4 hours recover to 90% capacity

INDICATORS

LCD    Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators

ALARM

Battery Mode    Sounding every 4 seconds

Low Battery    Sounding every second

Overload    Sounding twice every second

Fault    Continuously sounding

ENVIRONMENT

Operating Humidity    20~90% RH @ 0- 40°C (non-condensing)

Noise Level    Less than 50dB @ 1 Meter

PHYSICAL

Standard Model : Dimension, D x W x H (mm)    310 x 438 x 88[2U]

Standard Model : Net Weight (kgs)    12

Long-run Model : Dimension, D x W x H (mm)    310 x 438 x 88[2U]

Long-run Model : Net Weight (kgs)    9

MANAGEMENT

Optional SNMP    Power management from SNMP manager and web browser

Smart RS-232/USB    Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC
