Rating: (5/5)

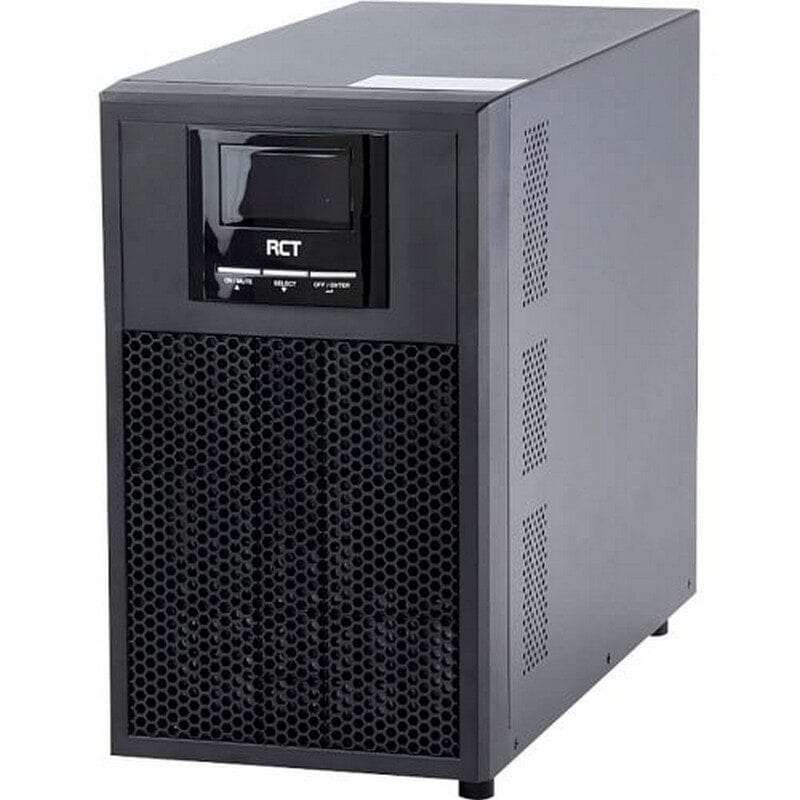

Conclusion: The RCT 3000VA Online Tower UPS epitomizes the synergy between power protection and advanced capabilities. Its seamless performance during power fluctuations, efficient battery management, audible alerts, and comprehensive connectivity set it apart as an exceptional choice. Whether you're a home user or a corporate decision-maker, the RCT 3000VA UPS underscores RCT's dedication to delivering unwavering power solutions that guarantee operational continuity and security, even amidst the most rigorous power challenges.
SPECIFICATIONS | |
Brand | RCT |
Series | Online UPS |
Model | RCT-3000WPTU |
Phase | Single Phase with Ground |
Capacity | 3000 VA/2400 W |
Input | |
Nominal Voltage | 100/110/115/120/127 VAC or 200/208/220/230/240 VAC |
Voltage Range | 55-150 VAC or 110-300 VAC @ 50% Load |
85-140 VAC or 160-280 VAC@ 100% Load | |
Frequency Range | 40 Hz - 70 Hz |
Power Factor | 0.99 @ Nominal Voltage (100% Load) |
Output | |
Output Voltage | 100/110/115/120/127 VAC or 200/208/220/230/240 VAC |
AC Voltage Regulation (Battery Mode) | ± 1% |
Frequency Range (Synchronized Range) | 47 - 53 Hz or 57 - 63 Hz |
Frequency Range (Battery Mode) | 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz |
Current Crest Ratio | 3:1 (Maximum) |
Harmonic Distortion | 3 % THD (Linear Load) |
6 % THD (Non-Linear Load) | |
Transfer Time | AC Mode to Battery Mode: Zero |
Inverter to Bypass: 4 ms (Typical) | |
Waveform (Battery Mode) | Pure Sinewave |
Efficiency | |
AC Mode | 90% |
Battery Mode | 88% |
Battery | |
Battery Type | 12 V / 9 Ah |
Numbers | 6 |
Typical Recharge Time | 4 Hours Recover to 90% Capacity |
Charging Current (Maximum) | 1 A |
Charging Voltage | 82.1 VDC ±1% |
Indicators | |
LCD Display | UPS Status, Load Level, Battery Level, Input/Output Voltage, Discharge Timer, and Fault Conditions |
Alarm | |
Battery Mode | Sounding Every 4 Seconds |
Low Battery | Sounding Every Second |
Overload | Sounding Twice Every Seconds |
Fault | Continuously Sounding |
Environment | |
Humidity | 20-90 % RH @ 0- 40°C (Non-Condensing) |
Noise Level | Less than 50dB@ 1 Meter |
Physical | |
Dimensions | 421 x 190 x 318 mm |
Weight | 27.6 kg |
Warranty Information | |
Warranty | 1 Year Warranty |
