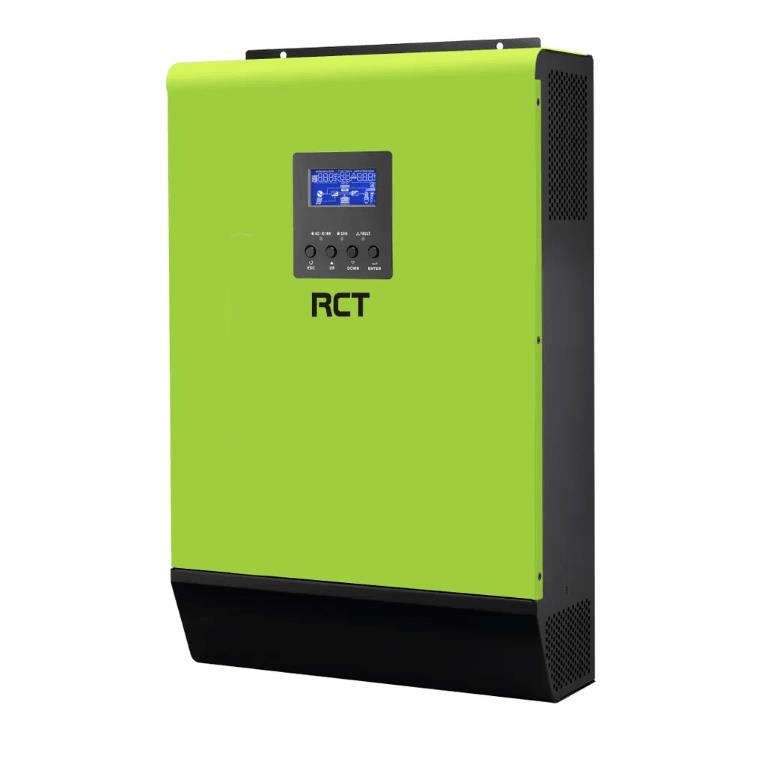

RCT Axpert 3kVA 3kW 24VDC Inverter

RCT Axpert 3kVA 3kW 24VDC Inverter

Features:

• Pure sine wave inverter
• Output power factor 1 (only 0.8 for 3KP/5KP models)
• Built-in MPPT solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Battery equalisation for optimised battery performance and lifecycle
• Cold start function

Specifications
Rated power: 3000VA/3000W
Parallel capability: No
Voltage: 230 VAC
Selectable voltage range: 170 280 VAC (For personal computers); 90 280 VAC (For home appliances)
Frequency range: 50 Hz/60 Hz (Auto sensing)
AC voltage regulation (Batt. Mode): 230VAC ± 5%
Surge power: 6000VA
Efficiency (peak): 90% 93%
Transfer time: 10 ms (For personal computers); 20 ms (For home appliances)
Waveform: Pure sine wave
Battery voltage: 24 VDC
Floating charge voltage: 27 VDC
Overcharge protection: 31 VDC
Maximum PV array power: 1500W
MPPT range @ operating voltage: 60~115 VDC
Maximum PV array open circuit voltage: 145VDC
Maximum solar charge current: 60A
Maximum AC charge current: 20A or 30A (Selectable)
Maximum charge current: 90A
Maximum efficiency: 98%
Standby power consumption: 2W
Dimension, d x w x h (mm): 140 x 295 x 479
Net weight (kgs): 11.5
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating temperature: 0°C 55°C
Storage temperature: -15°C 60°C
