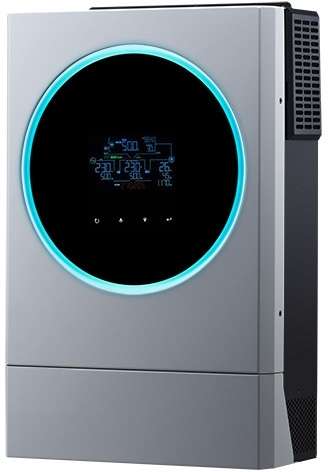

RCT Axpert 5.6K MKS IV 5600VA / 5600W 48V Pure Sine Wave MPPT Inverter charger, Up to 9 units parallel capability, 10 ms transfer time, Pure Sine Wave Waveform, 93% efficiency (Peak), 48 VDC battery voltage, 450 VDC Maximum PV Array open Circuit voltage, 6000 W Maximum PV Array power
Overview:
Axpert MKS IV - With MPPT solar Charger
Axpert MKS IV is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Transformerless design provides reliable power conversion in a compact size. The new generation of Axpert MKS comes with a built-in Wi-Fi function, mobile monitoring can be carried out through mobile applications. Data can be accessed and recorded in the inverter, which is convenient for tracking the operation status of the inverter. It also supports USB On-The go function for easy rewriting of internal parameters, data downloads, and software updates.
Features:
Pure sine wave MPPT solar Inverter
Customizable status LED ring with RGB lights
Touchable button with large 4.3 colored LCD
Wide DC input range
Supports USB On-the-Go function
Datalog events stored in the inverter
Built-in Wi-Fi for mobile monitoring (Android/iOS App available)
Reserved communication port for BMS
Battery independent function
Parallel operation with up to 9 units
Specifications:
MODEL Axpert MKS IV 5600-48
Rated Power 5600VA/5600W
Parallel Capability Yes, up to 9 units
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
Frequency Range 55/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%
Surge Power 5600 VA
Efficiency (Peak) 93%
Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform Pure Sine Wave
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 66 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 450 VDC
Maximum PV Array Power 6000 W
MPPT Range @ Operating Voltage 120 VDC~430 VDC
Maximum Solar Charge Current 120A
Maximum AC Charge Current 120A
PHYSICAL
Dimension, D X W X H (mm) 140 x 295 x 468
Net Weight (kgs) 12
Communication USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
