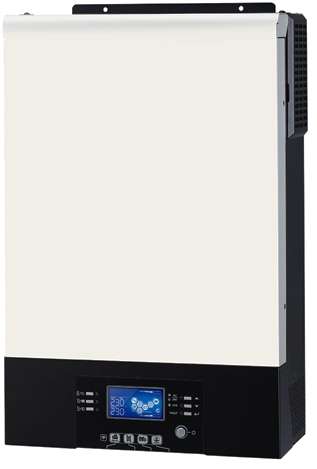

RCT Axpert King II 5K 5000VA / 5000W 48V Pure Sine Wave Inverter

RCT Axpert King II 5K 5000VA / 5000W 48V Pure Sine Wave Inverter, Up to 9 units parallel capability, 0ms transfer time, Pure Sine Wave, 6000W MPPT Solar charger, 500VDC Maximum PV Array open Circuit voltage, Comms Ports - USB / RS232 / RS485 / Wi-Fi, 48V battery required

Overview:

Axpert King II - Zero transfer time
Axpert King II is designed with zero transfer time perfect for critical devices such as servers and ATMs. Its equipped with a powerful 100A solar charger, 80A MPPT solar charger, and 100A AC charger. Detachable LCD control module allows users to remotely monitor this inverter. Its also able to expand power capacity to 45KW with 9 units in parallel operation.
Zero (0ms) transfer time to protect mission-critical loads such as servers and ATMs
High PV input voltage range
Removable LCD control module with multiple communications
Selectable high power charging current
Built-in Wi-Fi for mobile monitoring (App is available)
Configurable AC/Solar input priority via LCD setting
Reserved communication port for BMS (RS485 or CAN-BUS)
Parallel operation up to 9 units

Specifications:

MODEL Axpert KING II-5000-48
Rated Power 5000 VA / 5000 W
Parallel Capability Up to 9 units
INPUT
Voltage 230 VAC
Voltage Range 110-280 VAC
Frequency Range 60/50 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation 230 VAC ± 5%
Output THDv ? 3% for Linear load, ? 8% for non-linear load
Efficiency (Peak) 94 % at Line Mode, 98% at ECO Mode, 92% at Battery Mode
Transfer Time 0 ms
Waveform Pure Sine Wave
BATTERY
Battery Voltage 40~66 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 62 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type MPPT
Maximum PV Array Open Circuit Voltage 500VDC
Maximum PV Array Power 6000 W
MPPT Range @ Operating Voltage 120 VDC~450 VDC
Maximum Solar Charge Current 100A
Maximum AC Charge Current 100A
PHYSICAL
Dimension, D X W X H (mm) 140 x 295 x 468
Net Weight (kgs) 12
Communication Port USB/RS232/RS485/WI-FI/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
