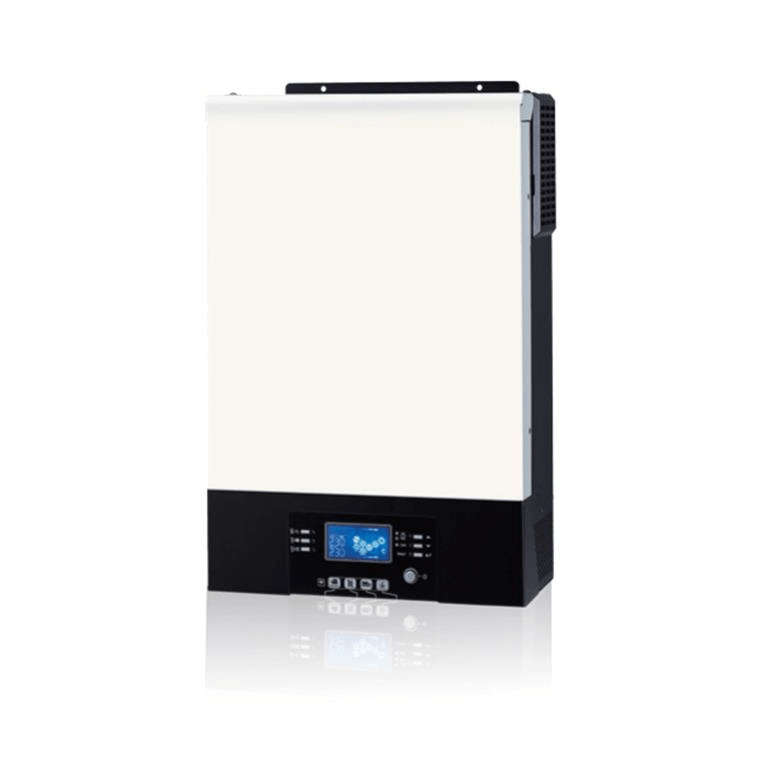

RCT Axpert King MK2 5kVA 5kW 48VDC Inverter

Features

• Zero (0ms) transfer time
• High PV input voltage range
• Removable LCD control module with multiple communications
• Selectable high power charging current
• Built-in Wi-Fi for mobile monitoring (App is available)
• Configurable AC/Solar input priority via LCD setting
• Reserved communication port for BMS (RS485 or CAN-BUS)
• Parallel operation up to 9 units

Specifications
Rated Power: 5000VA/ 5000W
Parallel Capability: Yes, 9 units
Voltage: 230 VAC
Voltage Range: 110-280 VAC
Frequency Range: 50 Hz/60 Hz (Auto sensing)
Power Factor: 0.98 - Nominal Voltage (100% Load)
THDi: 0%
AC Voltage Regulation (Line & Batt. Mode): 230VAC ± 5%
Frequency Range (Synchronized Range): 46~54 Hz or 56~64 Hz
Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Harmonic Distortion: 3 % THD (Linear Load); 5 % THD (Non-linear Load)
Surge Power: 10000VA for 5 sec.
Efficiency (Peak): 93 % at Line Mode, 90% at Battery Mode
Transfer Time AC Mode to Batt. Mode: 0 ms
Transfer Time Inverter to Bypass: 4 ms (Typical)
Waveform: Pure sine wave
Line Mode: 94%
ECO Mode: 98%
Battery Mode: 92%
Battery Voltage: 40~62 VDC
Floating Charge Voltage: 54 VDC
Overcharge Protection: 62 VDC
Solar Charger type: MPPT
Maximum PV Array Power: 6000W
MPPT Range - Operating Voltage: 120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage: 500 VDC
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 100A
Dimension, D x W x H (mm): 138.4 x 298 x 467.6
Net Weight (kgs): 12
Humidity: 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature: 10°C to 50°C
Storage Temperature: -15°C to 60°C
