Unique Features
- Pure sine wave inverter
- Output power factor 1
- Built- in MPPT solar charge controller
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
Axpert MKS is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Transformerless design provides reliable power conversion in compact size. Besides its worry- free to start up motor- type loads such as refrigerators, motors, pumps, compressors, and laser printers as well as electronic loads like TV's, computers, power tools and battery charges.
Key Specifications

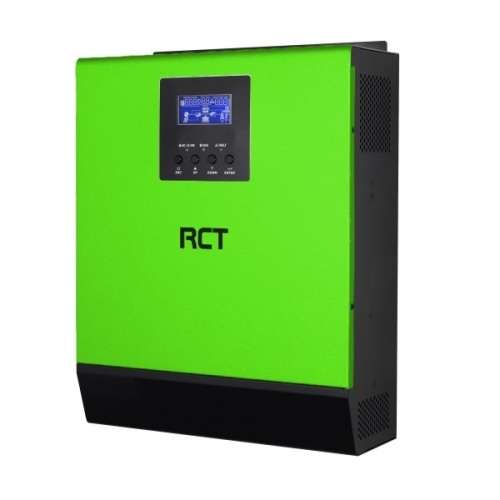

Model : RCT- AXPERT 3K
Rated Power : 3000VA/3000W
Input
Voltage : 230 VAC
Selectable Voltage Range : 170- 280 VAC (For Personal Computers) | 90- 280 VAC (For Home Appliances)
Frequency Range : 50 Hz/60 Hz (Auto sensing)
Output
AC Voltage Regulation (Batt. Mode) : 230VAC ± 5 %
Surge Power : 6000VA
Effiency (Peak) : 93%
Transfer Time : 10 ms (For Personal Computers) | 20 ms (For Home Appliances)
Waveform : Pure sine wave
Battery And AC Charger
Battery Voltage : 24VDC
Floating Charge Voltage : 27VDC
Overcharge Protection : 31 VDC
Solar Charger
Maximum PV Array Power : 600 W
MPPT Range @ Operating Voltage : 30 VDC ~ 66 VDC
Maximum PV Array Open Circuit Voltage : 75 VDC
Maximum Solar Charge Current : 25A
Maximum AC Charge Current : 30A
Maximum Charge Current : 55A
Operating Environment
Humidity : 5% to 95% Relative Humidity(Non- condensing)
Operating Temperature : 0°C - 55°C
Storage Temperature : - 15°C - 60°C
