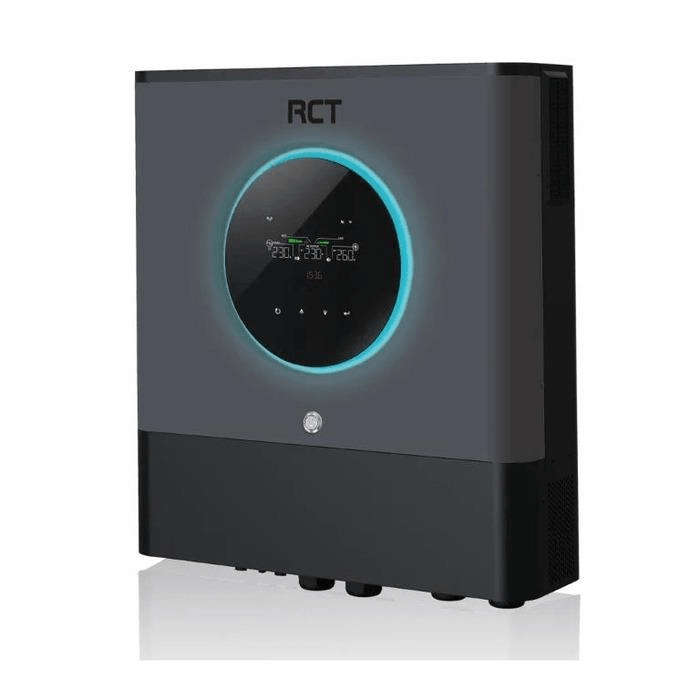

RCT Axpert MX2 8kVA 8kW 48VDC Inverter RCT-AXMX2-8K48V

Key Features

• Customizable status LED bar with RGB lights.
• Touchable button with large 5" coloured LCD.
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
• Supports USB on-the-go function.
• Data log events stored in the inverter.
• Reserved communication port for BMS (RS485, CAN-BUS or RS232).
• Replaceable fan design for ease of maintenance.
• Battery independent design.
• Configurable AC/PC output usage timer and prioritization.
• Selectable high power charging current.
• Compatible to utility mains or generator input.
• Built-in anti-dust kit.
• Built-in DC output for DC fan, LED bulb router and so on.
• Parallel operation with 6 units.

General

• Model Number: RCT-AXMX2-8K48V.
• Rated Power: 8000VA / 8000W.
• Parallel Capability: Yes, 6 Units.

Input

• Voltage: 230 VAC.
• Selectable Voltage Range: 170-280 VAC (For Personal Computers), 90-280 VAC (Home Appliances).
• Frequency Range: 50 Hz / 60 Hz (Auto Sensing).

Output

• AC Voltage Regulation (Batt. Mode): 230 VAC ± 5%.
• Surge Power: 16000 VA.
• Efficiency (Peak): 93%.
• Transfer Time: 15ms (For Personal Computers) 20ms (For Home Appliances).
• Waveform: Pure sine wave.
• No Load Power Consumption: < 70W.
• DC Voltage: 12 VDC ± 5%, 100W.

Battery

• Battery Voltage: 48 VDC.
• Floating Charge Voltage: 54 VDC.
• Overcharge Protection: 66 VDC.

Solar and AC Charging

• Solar Charger Type: MPPT
• Maximum Pv Array Power: 8000 (4000W x 2)
• Mppt Range - Operating Voltage: 90~450 VDC
• Maximum Pv Array Open Circuit Voltage: 500 VDC
• Maximum Solar Charge Current: 150A
• Maximum Ac Charge Current: 120A
• Maximum Charge Current: 150A

Other

• Product Dimensions: 158.4 mm x 502.5 mm x 530.8 mm.
• Product Weight: 20 kgs.
• Communication Interface: USB / RS232 / RS485 / Wi-Fi / Dry-contact.
