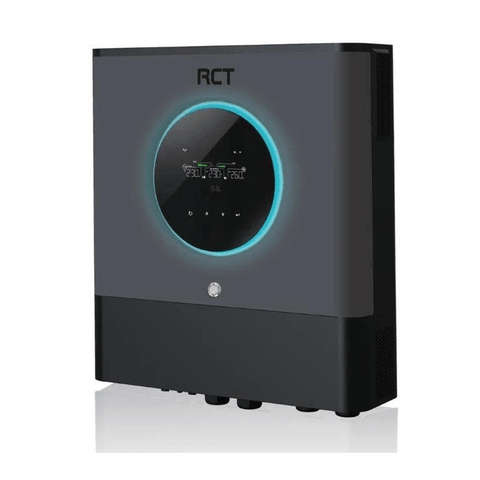

RCT Axpert MX2 8kVA 8kW 48VDC Inverter RCT-AXMX2-8K48V

"

Description:

RCT Axpert MX2 8kVA 8kW 48VDC Inverter RCT-AXMX2-8K48V

Key Features

Customizable status LED bar with RGB lights.
Touchable button with large 5" coloured LCD.
Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
Supports USB on-the-go function.
Data log events stored in the inverter.
Reserved communication port for BMS (RS485, CAN-BUS or RS232).
Replaceable fan design for ease of maintenance.
Battery independent design.
Configurable AC/PC output usage timer and prioritization.
Selectable high power charging current.
Compatible to utility mains or generator input.
Built-in anti-dust kit.
Built-in DC output for DC fan, LED bulb router and so on.
Parallel operation with 6 units.
General

Model Number: RCT-AXMX2-8K48V.
Rated Power: 8000VA / 8000W.
Parallel Capability: Yes, 6 Units.
Input

Voltage: 230 VAC.
Selectable Voltage Range: 170-280 VAC (For Personal Computers), 90-280 VAC (Home Appliances).
Frequency Range: 50 Hz / 60 Hz (Auto Sensing).
Output

AC Voltage Regulation (Batt. Mode): 230 VAC ± 5%.
Surge Power: 16000 VA.
Efficiency (Peak): 93%.
Transfer Time: 15ms (For Personal Computers) 20ms (For Home Appliances).
Waveform: Pure sine wave.
No Load Power Consumption: DC Voltage: 12 VDC ± 5%, 100W.
Battery

Battery Voltage: 48 VDC.
Floating Charge Voltage: 54 VDC.
Overcharge Protection: 66 VDC.
Solar and AC Charging

Solar Charger Type: MPPT
Maximum Pv Array Power: 8000 (4000W x 2)
Mppt Range @ Operating Voltage: 90~450 VDC
Maximum Pv Array Open Circuit Voltage: 500 VDC
Maximum Solar Charge Current: 150A
Maximum Ac Charge Current: 120A
Maximum Charge Current: 150A
Other

Product Dimensions: 158.4 mm x 502.5 mm x 530.8 mm.
Product Weight: 20 kgs.
Communication Interface: USB / RS232 / RS485 / Wi-Fi / Dry-contact.
