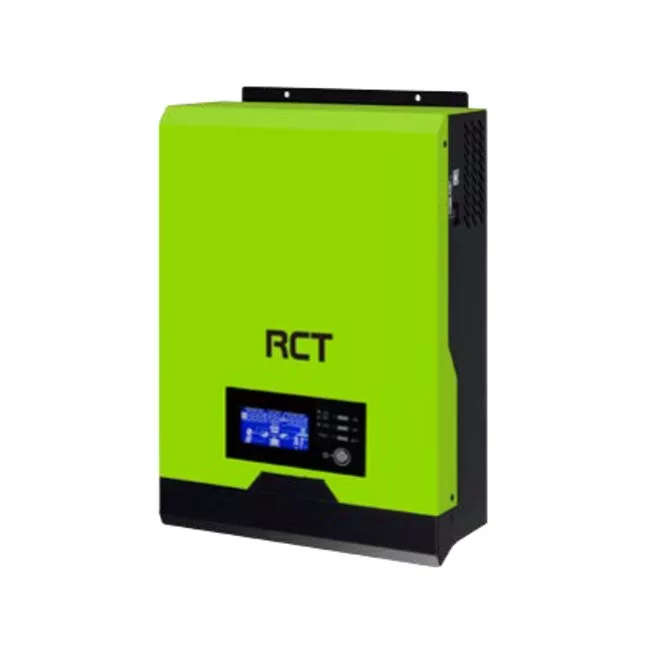

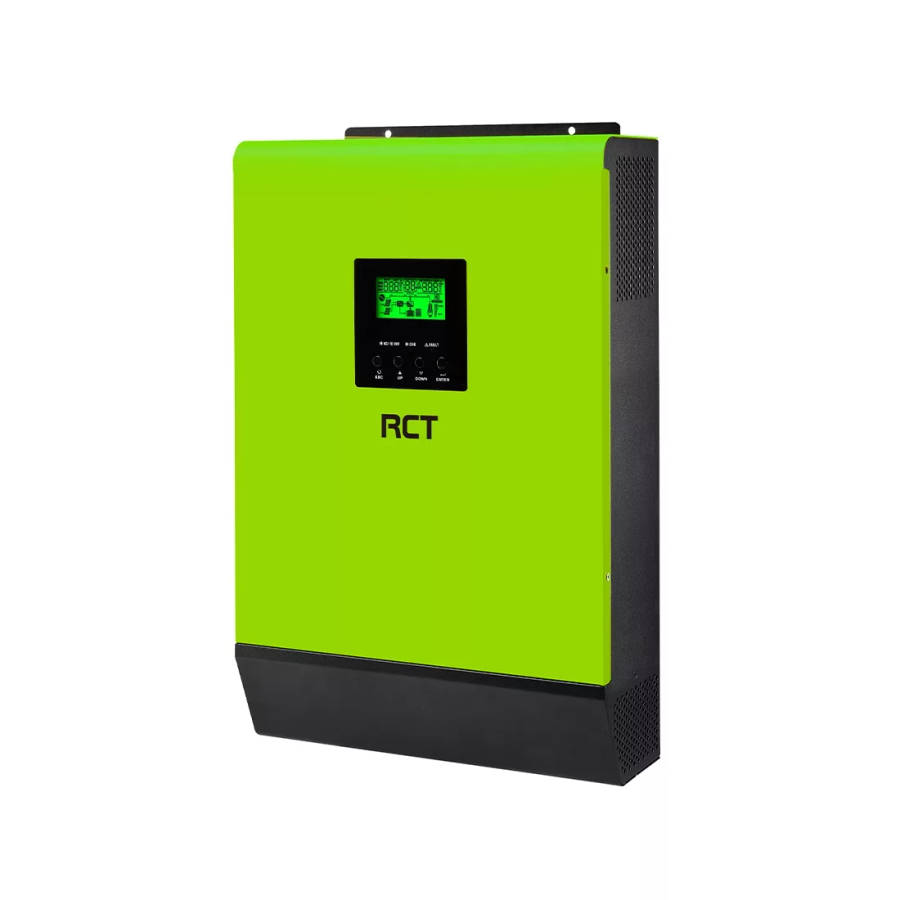

RCT Axpert VM1 1000VA/1000W 12V 500W MPPT inverter Charger

Quick Specs:

• Rated Power: 1000VA/1000W
• Efficiency: 90% 93%
• 500W MPPT
• Battery Voltage: 12 VDC
• Maximum Solar Charge Current: 40 A
• Maximum Charge Current: 60 A

The RCT Axpert VM1 1000VA/1000W 12V 500W MPPT Inverter Charger is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power supply. It has a comprehensive LCD display which has user-configurable and easy-accessible buttons to configure operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Basic System Architecture

The following illustration shows basic application for this inverter/charger. It also includes following devices to
have a complete running system:

•  Generator or Utility.
• PV modules (option)

Consult with your system integrator for other possible system architectures depending on your requirements.

This inverter can power all kinds of appliances in home or office environment, including motor-type appliances
such as tube light, fan, refrigerator and air conditioner.

Features:

• Pure sine wave solar inverter
• Output power factor 1
• Selectable high power charging current
• Wide DC input range
• Selectable input voltage range for home appliances and personal computers
• Configurable AC/Solar input priority via LCD setting
• Compatible to AC mains or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Battery equalization for optimized battery performance and lifecycle
• Cold start function
• Optional anti-dusk kit

Specifications:

• Rated Power: 1000VA/1000W
• Voltage: 230 VAC
• Surge Power: 2000VA
• Efficiency: 90% - 93%
• Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure sine wave
• Battery Voltage: 12 VDC
• Overcharge Protection: 16 VDC
• Maximum Solar Charge Current: 40 A
• Maximum AC Charge Current: 20 A
• Maximum PV Array Power: 500 W
• Maximum Charging Current: 60A
• Dimension, D x W x H: 88 x 225 x 320 mm
• Net Weight: 4.4 Kg
