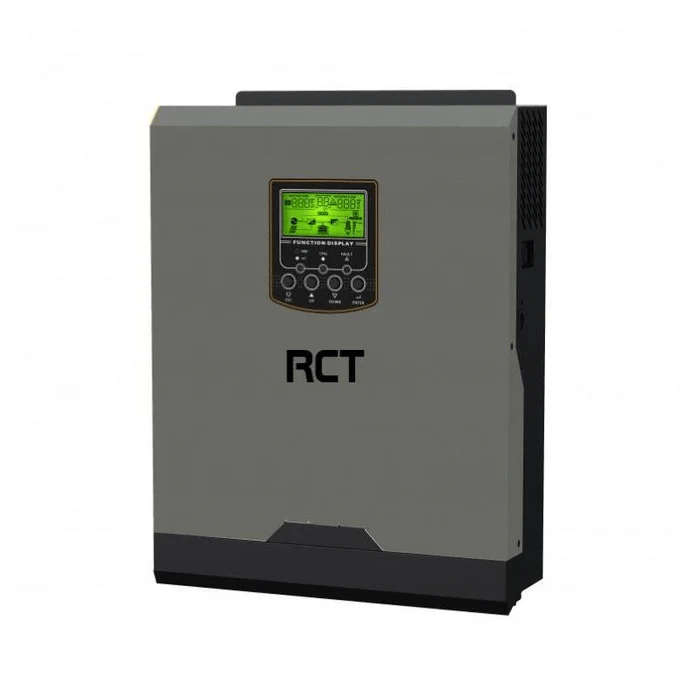

RCT Axpert VM2 Premium 2.5kVA 2500VA/2500W 24V Inverter with 3000W MPPT

More Information

• Pure sine wave solar inverter
• Ouput power factor 1
• High PV input voltage range
• Battery independednt design
• Buil-in 100A MPPT solar charger
• Battery equalization function to optimise battery performance and extend lifecycle
• Buil-it in anti-dust kit for harsh environment

Technical Specifications

RATED POWER 2500VA/ 2500W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)

OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 5000VA
Efficiency (Peak) 93%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform Pure sine wave

BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 32 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 3000 W
MPPT Range @ Operating Voltage6 60VDC ~ 400VDC
Maximum PV Array Open Circuit Voltage 450VDC
Maximum Solar Charge Current 80A
Maximum AC Charge Current 80A
Maximum Charge Current 80A

PHYSICAL
Dimension, D x W x H (mm) 90 x 288 x 357
Net Weight (kgs) 6.5
Communication Interface RS232
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
