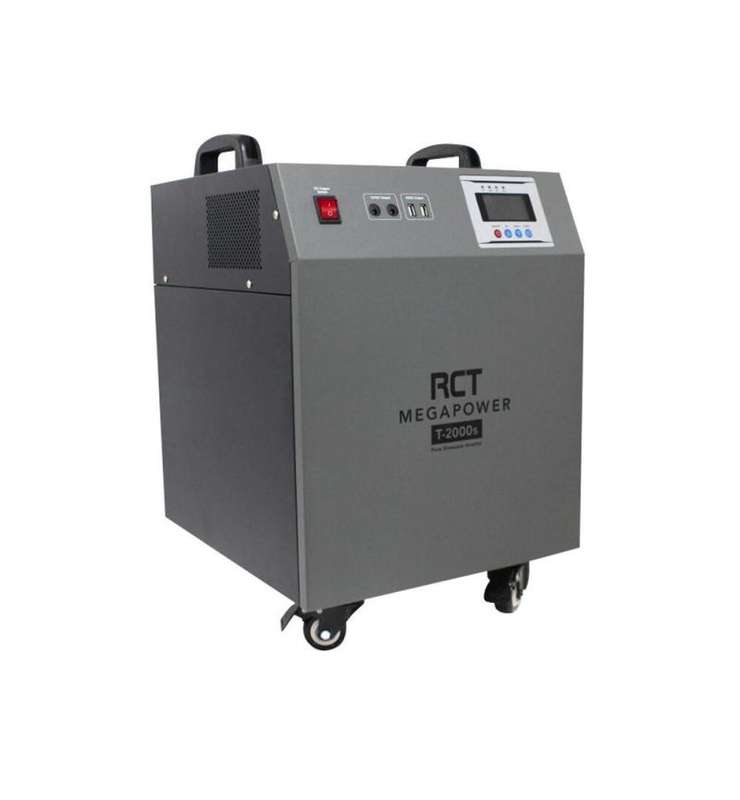

RCT MegaPower 2KVA/2000W Inverter Trolley

RCT MEGAPOWER 2KVA/2000W INVERTER TROLLEY - MP-T2000S

RCT MEGAPOWER 2KVA/2000W INVERTER TROLLEY WITH 2 X 100AH BATTERIES - (Lead Acid Battery)

SPECIFICATION

Pure Sinewave for Sensitive Electronics & Motorized Loads

Microprocessor Control Optimizes Reliability

Input Power Factor Correction

Output Power Factor 1.0

Comprehensive Display Allows Easy Monitoring & Access of UPS Status

Built-In MPPT Solar Charger

2 x USB 5 V DC Output and 2 x 12 V DC Output

Battery Cut Off Switch for safety

Pre-Installed Batteries

Inverter Battery

Rated Power: 2000 W.

Output Voltage: 220 VAC.

Output Frequency: 50 / 60 Hz.

Output Waveform: Pure Sine Wave.

Battery Voltage: 24V.

Battery Specifications: 100Ah 12V x 2.

Solar Input

Maximum Photovoltaic Voltage (VDC): = 150 V

Charge Voltage (VDC): 35 V - 150 V

Rated Charge Current (A): 30 A

Maximum Power (Wp): 800 Wp

Voltage Overcharge Protection (VDC): 28.4 V

Voltage Overcharge Recovery (VDC): 28.0 V

Voltage Of Floating Charge (VDC): 27.4V

DC Output

Voltage Of High-Voltage Protection (VDC): 32 V

Voltage Of High-Voltage Recovery (VDC): 32.4 V

Voltage Of Low-Voltage Recovery (VDC): 25.2 V

Voltage Of Low-Voltage Protection (VDC): 22V

5 V DC USB Output Port: 2 Units / MAX 2 A

12 VDC Output Port: 2 DC Ports (Max 2 A)

Starting Temperature Of The Exhaust Fan: > 45ºC

Ambient Temperature For Operation: 0 - 40ºC

Ambient Temperature For Storage: -25 - +55ºC

Operation / Storage Conditions: 0-90% (No Condensation)

General

Charge By A Mains Supply Rated Voltage:  220VAC.

Charge Current: 30A(max).

Product Dimensions: 380 mm x 380 mm x 520 mm.

Battery

Battery (2 x 12V/100Ah)

Rated Voltage: 12V/Battery (Note this is a 24V System).

Capacity (10hr,1.80V/Cell): 100Ah.

Weight: 31.5Kg.

Max Discharge Current: 30I10A(3min).

Max Charge Current: =0.25A C10.

Self- Discharge (25?): =3%/month.

Recommended Using Temperature: 15°C - 25C.

Cover Material: ABS.

Dimensions: 407mm x 174mm x 209mm.

6 Months Warranty
