RCT Voltronic LIO-II 4810 5000Wh 51.2vDC LiFePO Battery Module

RCT Voltronic LIO-II 4810 5000Wh 51.2vDC LiFePO Battery Module

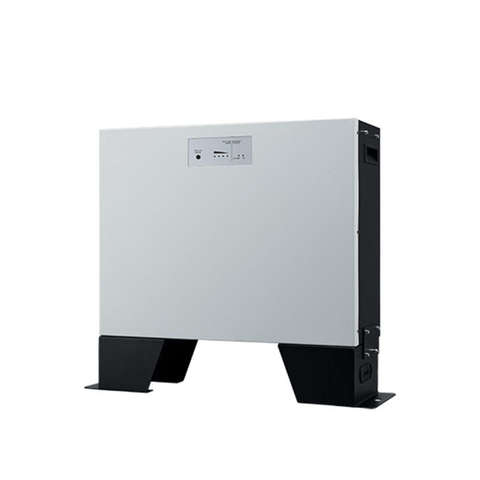

LIO II-4810 is Lithium-ion battery module specially designed for energy storage system with 48V system

Features

• Lithium Iron Phosphate (LFP) cell guarantees safety and reliability
• Easy to install on the floor
• Suitable for wide range of inverters with 48V system

More Features

Compact size and Lightweight

• Built-in Lithium Iron Phosphate (LFP) cell with less space and weight.

Fast charging

• Battery module can be fully charged in shorter time.

Modular design for easy scalable

• Battery module can be easily stacked and added for energy expansion.

Maximum Lifecycle

• 8000 cycles is for 60% DOD with >50% capacity
• 2000 cycles is for 90% DOD with >80% capacity

Technical Specification

Battery Module: LIO II-4810 (5 kWh, 51.2V)

Battery Cell Technology: Lithium Iron Phosphate

Applicable Inverter Rating: â¦ 5.6 kW

Number of Module: 1

Usable Energy: 5 kWh

Rated Discharging Current: 150 A

Peak Discharging Current: 192 A, 1 min

Nominal Voltage: 51.2 V DC

Operating Voltage: 38 - 56VDC

Charging Current: 100A Max, 30A Default

General

Operation Charge Temperature: 0°C~50 °C

Operation Discharge Temperature: 0°C~50 °C

IP Protection: IP20

Communication: RS485 port (RJ45), CAN
