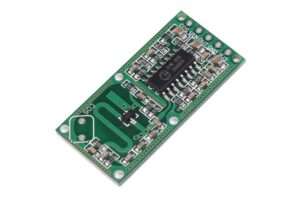

RCWL-0516 microwave sensor module - radar.

Working voltage: 4 - 28V. It provides a convenient 3.3V output to drive a microcontroller.

The forward side of the microwave sensor module is the side with the components. This side should face the objects being detected. Do not obstruct the forward side with anything metallic. The back side should have a clearance of more than 1cm from any metal.

Microwave sensor module specification:

1.Operating Voltage:4-28V
2.Operating Current:2.8mA (typical);3mA (max)
3.Detection Distance:5-9m
4.Transmitting Power:20mW (typical);30mW (max)
5.Output Voltage:3.2-3.4V
6.Output Voltage Driving Capacity:100mA
7.Trigger Way: repeat trigger
8.Output Control Low Level:0V
9.Output Control High Level:3.3V

Board header

Adjustment components

On the back of the board (the side without components) are pads for 3 optional components (0805 dimensions).
