Technical Specifications:

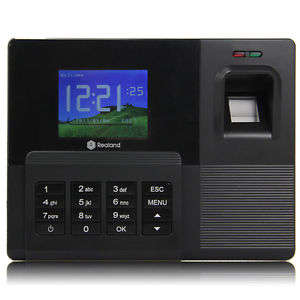

Model | ZDC30 |
TFT | 2.8 inch TFT (320*240) |
Fingerprint Sensor | (Energy-saving)Optical Fingerprint Sensor (Resolution:500DPI) |
CPU | 32bit CPU |
fingerprint Capacity | 1,000 |
Log Capacity | 100,000 events |
Communication | USB ( TCP/IP Optional ) |
Identification Mode | Fingerprint, Password, Proximity Card |
Proximity Card | 125Khz, EM4100 or other Compatible Contactless ID Card |
USB Flash Drive Up/Download | Available |
Record Query | Available(people can query their own attendance record after authentication) |
Rotational Angle | Total Rotational Angle |
Identification Time | <=1s |
FRR | <=0.1% |
FAR | <=0.0001% |
Operating Mode | Off-line / Online |
Authentication Mode | 1:1, 1:N |
Language | Chinese, English, Korean |
Voice Prompt | Available |
Bell | Built-in Timing Bell |
Self Test | Available |
Power Management | Auto Sleep Time, Auto Power Off Time |
Power Adapter | DC 12V/1A |
Operating Environment | Operating Temp:-10C ~ +60C, Humidity(RH):20%~80% |
Size of the Terminal | 180(L) × 134(W) × 36(H) mm |
