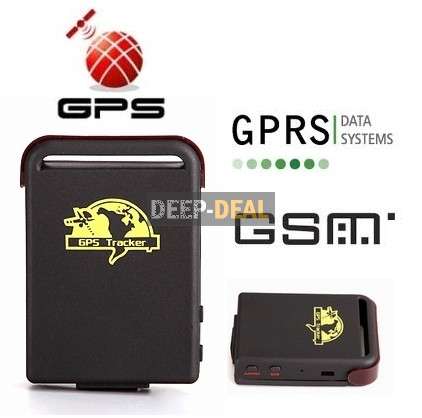

Realtime GSM GPRS GPS Tracker TK102 Personal GPS Tracker

Realtime GSM GPRS GPS Tracker TK102 Personal GPS Tracker

Build-in GPS personal locator.

Build-in Storage Volume: The Max Storage of the memory can store 16,000 tracking locations, and

can be copy to computers directly through the USB cable.

GSM /SMS communication or GPRS TCP/UDP connection.
Works worldwide!Band: 850/ 900/1800/1900Mhz.
High sensitivity,New technology and latest GPS SiRF-Star III chipset!
Excellent for fixing the position even at a weak signal status.
Work well even in areas with limited sky view like urban canyons.
Compact size, and smaller than one name card. Easy to hide.
Very Low power consumption.
Fast Signal Acquisition.

Free Tracking Software - this device is compatible with Google Earth, you don't need to pay

No Activation Fee, No Software use Fee.

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and

monitor any remote targets by SMS or internet.

Microphone Built-in - track the person and listen in on their conversation.

Realtime GPRS or 20sec GSM - GPRS can be used in real-time up to the second and GSM can be

set to send text messages every 20 seconds .

Auto Tracking - you can setup how often you want to receive updates

SOS Function - press the SOS and your location will be reported to up to 5 authorized numbers

Geo Fence - setup an area with predefined coordinates and if the tracker leaves the area it will send

out text messages with alerts. This feature is great for elderly tracking and your teenagers

Overspeed limit - will trigger an SMS alert if a speed exceed your predefined maximum

Low power alert - will trigger an SMS alert if battery is low

Lost signal alert - if the tracker looses signal, if for example it goes into underground garage,

it will trigger an SMS alert with the last known coordinates.

Network: GSM/GPRS;
GPS Chip: SIRF3 Chip;
GPS Sensitivity: -159dBm;
GPS accuracy: 5m;
Dimensions: 64mm x 46mm x 17mm (1.8''*2.5''*0.65'')
Weight: 50g;
Time to First Fix:Cold status 45s,Warm status 35s,Hot status 1s;
Wall Charger: 110-220V input, 5V output;
Battery: Chargeable Changeable 3.7V, 800mAh Li-ion battery;
Standby Time: 48 hours;

HOW IT WORKS

Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of itslocation thru a SMS message. You can then use these coordinates on any mapping software (for example google earth)which will show where exactly the unit is located.With some little setup, you can also have the device to send the data directly to a computer thru GPRS and display its location on a map with our bundled software for real-time location tracking.

FAQ - Frequently Asked Questions

        How do I make sense of the longitude and latitude data this unit provides?
        Both Google Maps and Google Earth can easily translate the data into usable visual information.
        How long does it take to recharge the battery for this unit?
        First use requires 8 - 12 hours charging time, while subsequent usage only needs 3-5 hours of recharging time.
        The unit does not pick up a GSM signal and the SMS functions aren't working, what's wrong?
        A number of things could cause this to happen:
        1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work)
        2) Make sure there is money left on the SIM card and that it has not expired
        3) Make sure there is no PIN code associated with the SIM card
        4) Make sure roaming is enabled on your SIM account if you are in a different country
        Please check that the local cell network matches the product's GSM standard.

        Click here to view your regions cell phone network.
        Can I install the software on multiple computers?
        No. Each tracker’s IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.


Package

    GPS Tracker x 1
    Rechargeable Battery x 2
    Power Adapter for Charging x 1
    BatteryDock x 1
    CD for GPS Tracking Application x 1
    English User Guide x 1
    Extra Back Cover with Magnet x 1
    Plastic Carrying Bag x 1
    USB cable
