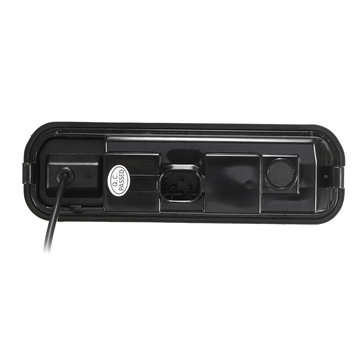

Rear View Reverse Parking Camera Night Vision 120 For Ford Focus 3 Mk3 2014

Feature:
1. Viewing angle 170 ?ﾣ large viewing range, reversing more secure
2. Digital photographic chip processing, night vision effect is obvious
3. Multi-layer waterproof design, truly high pressure washing and soaking waterproof
4. With reversing reference line (electronic scale line), the obstacle distance at a glance 5. Video line connected to the monitor, the power cord connected to the car taillight power, reversing, reversing the
monitoring system automatically began to work, you can clearly see the car, the situation

Specification:

Product Name ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??	Rear View Camera ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
Video Color	Colorful
Body Color	Black
Dimension(L*W*H)	Approx?13.3x4.1x4CM
Lens Angle	120?ﾣ
Power Supply	Approx DC12V
Effective Pixels	PAL 50(HZ)/NTSC 60(HZ)
Horizontal Sync Frequency	15625KHZ
Scanning System	2:1 Interlace
AGC	Auto
BLC	Auto
Resolutions	520TV Lines
Horizontal Angle	110 ?ﾣ
Waterproof Rating	IP67 IP68
Minimum illumination	0.2 Lux /F 1.2(0 Lux With Led)
Video System	PAL
Signal to Noise Ratio	>48db
Operating Temperature	-20a?? ~+60a??,??RH95% Max
Storage Temperature	-30a?? ~+60a??,?RH95% Max
Current Consumption	No More 300mA
Effective Pixels	720x540
Quantity	1Pc

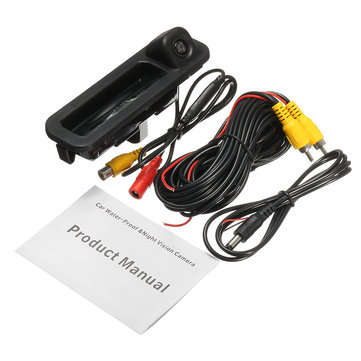

? Package Includes:
1 X Car Rear View Camera

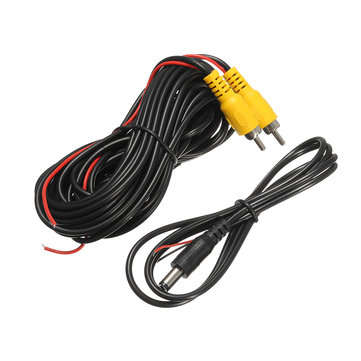

1 X 1.5m Power Cable
1 X 6m Video Cable
1 X English User Manual
