The LKV483POE-M5.0-RX HDMI over IP Receiver is designed to receive and decode high-quality HDMI signals transmitted over a standard IP network, delivering stunning 4K Ultra HD video and reliable audio performance across long distances. As part of the LKV483POE-M5.0 HDMI Matrix Extender system, this receiver enables flexible and scalable AV distribution for commercial, educational, retail, hospitality, and security applications.

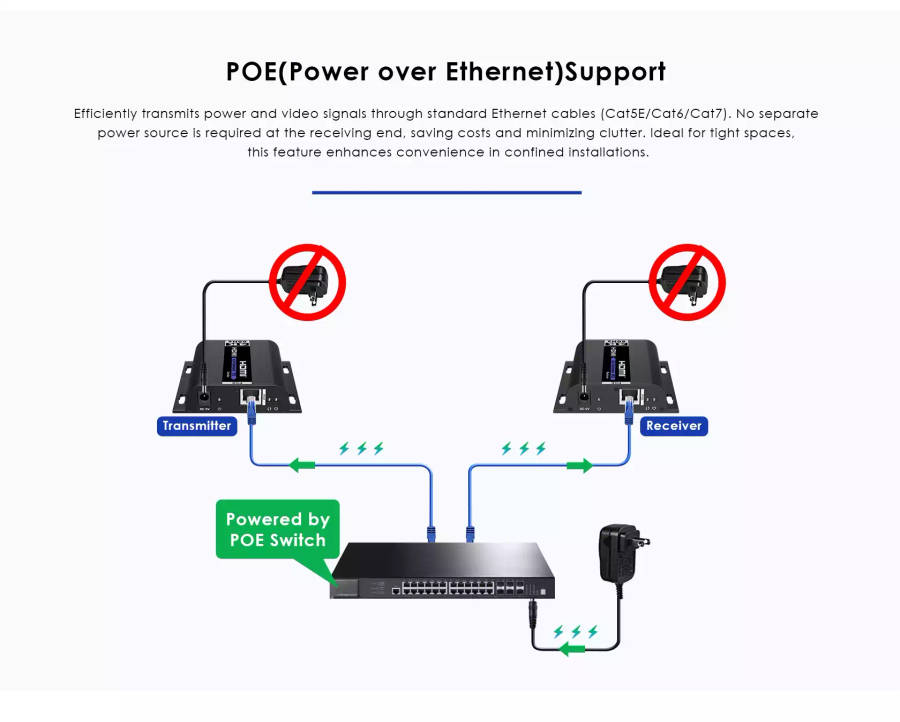

Utilizing advanced HDBitT HDMI over IP technology, the receiver supports transmission distances of up to 200 meters over CAT6 cabling and integrates seamlessly with Gigabit network switches for large-scale matrix and multi-display installations. With Power over Ethernet (PoE) support, the receiver can be powered directly through the network cable, reducing installation complexity and eliminating the need for additional power outlets at display locations.
Key Features:
Applications:
Technical Specifications:
Package Includes:
| LKV483POE-M5.0 Specification | ||
| Item | Transmitter(Tx) | Receiver(Rx) |
| Video | ||
| Input interface | 1x HDMI | 1x RJ45 |
| Output interface | 1x RJ45 | 1x HDMI |
| HDMI length | 5m | 5m |
| Maximum transfer rate | 18Gbps | |
| Compatibility | HDMI 2.0 | |
| HDCP 1.4/HDCP 2.2 | ||
| Resolutions | 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600 | |

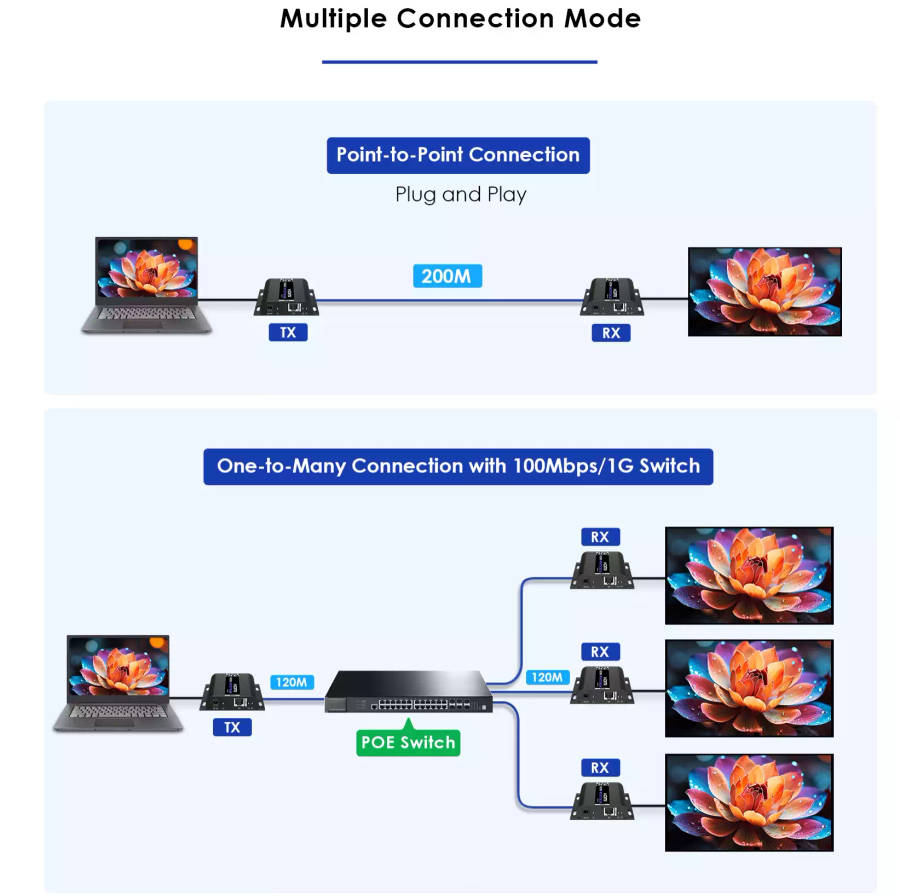

| Connection types | One-to-one connection One-to-many connection Many-to-one connection Many-to-many connection Switch cascading | |
| Transmission distance | CAT5 80m / CAT5E 100m / CAT6 120m | |
| Transmission latency | 1080P: 80~130ms 4K@60Hz: 150~220ms | |
| Audio Signal | ||
| Input interface | 1x HDMI | 1x RJ45 |
| Output interface | 1x RJ45 | 1x HDMI |
| HDMI output | LPCM 2.0 | |
| Command Signal | ||
| IR interface | 1x 3.5mm IR OUT | 1x 3.5mm IR IN |
| IR receiving range | 5m | |
| Infrared frequency | 20kHz~60kHz | |
| Power | ||
| Power Supply | DC 5V/1A (alternative) | DC 5V/1A (alternative) |
| Power Consumption | TX< 3.5W | RX<2.5W |
| POE input | Support IEEE802.3af | |
| Operating Environment | ||
| Working temperature | - 20~60 | |
| Storage temperature | - 30~70 | |
| Humidity | 0~90%RH (no condensation） | |
| Physical Properties | ||
| Housing | Aluminium | |
| Weight | 156g | 170g |
| Color | Black | |
| Dimensions | 96.8(L)*94(W)*23.7(H)mm | |
| Protection | ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 | |
