Rechargeable Super Bright 24-LED Panel Kit

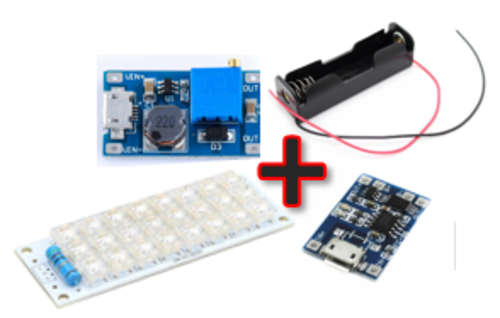

RECHARGEABLE SUPER BRIGHT 24-LED PANEL KIT CONTAINING:

• 2A BOOSTER BOARD DC-DC STEP-UP MODULE INPUT 2-24V TO 5-28V

• 5V MICRO USB 1A LITHIUM BATTERY CHARGING MODULE

• SINGLE 18650 BATTERY HOLDER

• SUPER BRIGHT 12V 24 WHITE PIRANHA LED LIGHTING MODULE

2A Booster Board DC-DC Step-Up Module Product information
This is a high frequency, high-performance BOOST power supply module with a small footprint. The size enables the module to be easily accommodated in portable equipment. The module features a micro USB socket which enables a 5V USB power source to be stepped up to any voltage up to 28V. The input also caters for non-USB input via the on-board solder pads.

Specifications
Wide Input voltage: 2 - 24V
Wide Output voltage: 5 - 28V
Output current: 2A max (recommended for 1A)
Efficiency: >93%
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Output Ripple: 50mV (Average ripple)
Operating Temperature: -40deg. C ~ +85deg. C
Dimensions: 30mm x 17mm x 14mm (L x B x H)

5V Micro USB Lithium Battery Charging Module Product information
This Lithium battery charging board uses the ultra-reliable TP4056 charging IC. It provides good protection, performance and high precision charging for 3.7V Lithium Ion batteries. The output current can be pre-set by changing the resistor marked as 122 on the board. The maximum output current can then be set between 50mA and 1000mA depending on the resistor selected. The unit can be used in together with a Mini PFM Control DC 0.9V-5V to 5V USB Step-up Power Supply Module and 1 x 18650 cell to form a 5V/1A Power Bank.

Specifications
Charging mode: Linear charge
Charging current: 1A (adjustable)
Charging precision: 1.5%
Input voltage: 4.5 - 5.5V
Full charge voltage: 4.2V
Charging indicator: Charging (red LED on) and full charge (green LED on)
Input interface: micro USB or solder wires between IN+ and IN- (5.5V max)
Operating Temperature: -10deg. C to +85deg. C
Weight: 1.8g
External dimensions: 25 x 19 x 10mm

Note
1. An ampere meter should only be connected to the 5V input of the module.
2. It is better to charge a Lithium-Ion battery at 37% of its capacity e.g. 3200mAh cell should be charged at 1A.
3. If the input voltage is higher than 5.2V, the current will be automatically limited to less than 1A to protect the charge IC.
4. There is no reverse polarity protection on-board.

Single 18650 Battery Holder Product information

Holds a single 18650 cell. Compact design - works with most electronic applications. Lead wires are pre-soldered.

Specifications
Battery Type: 1 x 18650
Battery Length: 66mm (max)
Depth: 19mm
Length: 77mm
Width: 21mm
Weight: 8.6g
Cable Length: 160mm

Super Bright 12V 24 White Piranha LED Lighting Panel Product information

This Light panel comprises of 24 x 5mm high brightness Piranha LED’s. The board has mounting holes in every corner and can be easily mounted. The panel is perfect for emergency lights for use in areas with frequent load shedding.

Specifications
LED colour: White
LED colour temperature: 5500-6500K
LED lifespan: 50000-80000 Hours
Panel brightness: 100 lumens
Beam Angle: 150 deg.
Input voltage: 10-14V DC (Recommended 12V DC, 14V DC absolute maximum)
Operating current: +/- 160mA @ 12V DC
Power: +/- 1.8W@ 12V DC
Size: 74mm x 51mm

Package Includes
1 x 2A booster board DC-DC step-up module input 2-24V to 5-28V
1 x Super bright 12V DC 24 White Piranha LED Lighting Panel
1 x 5V Micro USB 1A Lithium Battery Charging Module
1 x Single 18650 Battery Holder

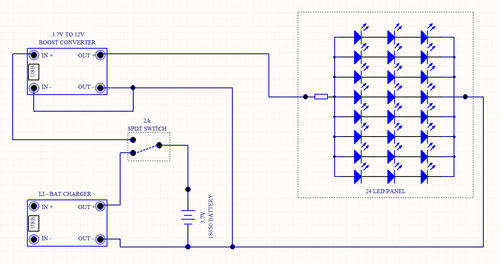

Wiring Diagram
