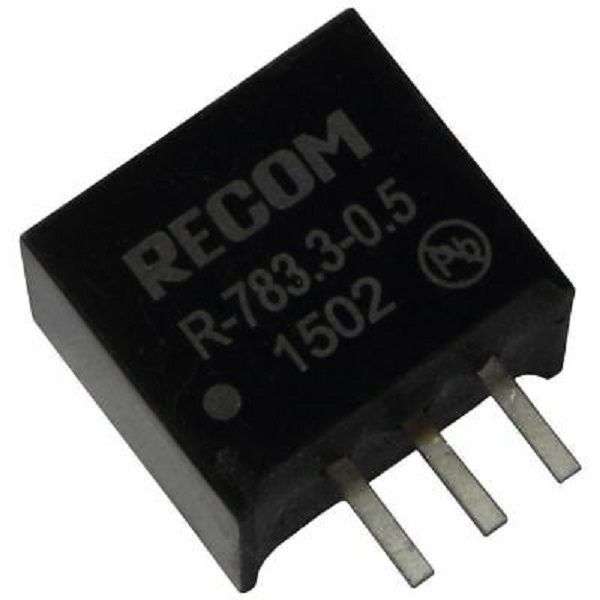

Recom Power (R-783.3-0.5) DC/DC Converter, 1.65 W, 3.3 V, 500 mA

DC/DC Converter, ITE, 1 Output, 1.65 , 3.3 V, 500 mA, R-78 SeriesProduct InformationPower Supply Approvals: ITEOutput Power Max: 1.65WNo. of Outputs: 1 OutputOutput Voltage Nom.: 3.3VOutput Current Max: 500mADC / DC Converter Output Type: FixedProduct Range: R-78 SeriesInput Voltage DC Min: 4.75VDC / DC Converter Mounting: Through HoleInput Voltage DC Max: 32VProduct OverviewThe R-783.3-0.5 is a 1-output non-isolated PoL Switching Regulator, ideallysuited to replace 78xx linear regulators and are pin compatible. The efficiencyof up to 97% means that very little energy is wasted as heat so there is no needfor any heat sinks with their additional space and mounting costs. Low rippleand noise figures and short-circuit, overload and over-temperature protectionround off the specifications of this versatile converter series.Efficiency up to 97%, non-isolated, no need for heatsinksPin-out compatible with LM78XX linear regulatorsVery low profileShort-circuit protection, thermal shutdownLow ripple and noiseHigh efficiencyApplicationsPower Management
