Specification:
Brand: KONNWEI
Model: KW330
Item Name: Car OBD Diagnostic Tool
Operating Voltage: 8V ~ 18V
Operating Current: min:max:131mA — 171mA
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
LCD Screen: 2.8" 320x240 pixel TFT Color Screen (day & night mode theme)
Dimensions: 163 (L)x 85.5 (W)x 23.5 (H)mm
Power: From vehicle battery
One-click keys: DTC, I/M, VIN, battery check

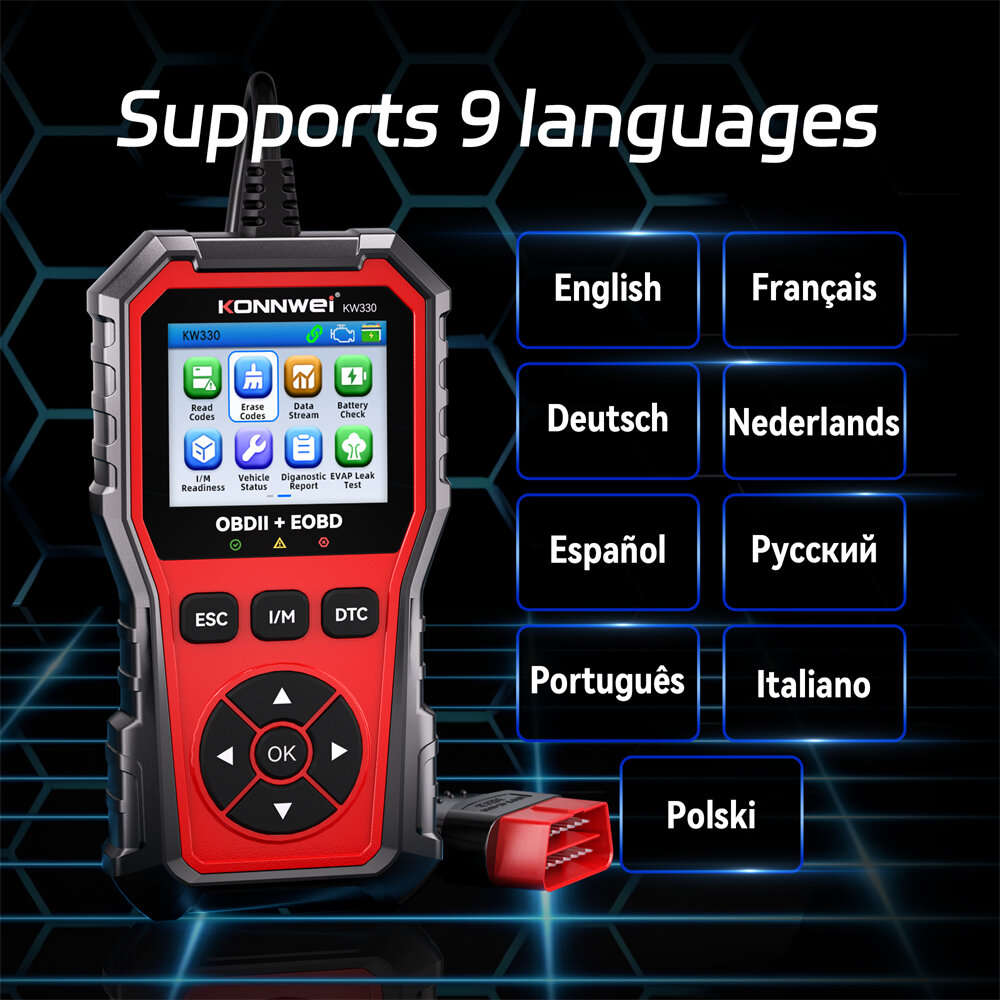

9 Languages: English, German, French, Russian, Spanish, Polish, Italian, Portuguese, Dutch

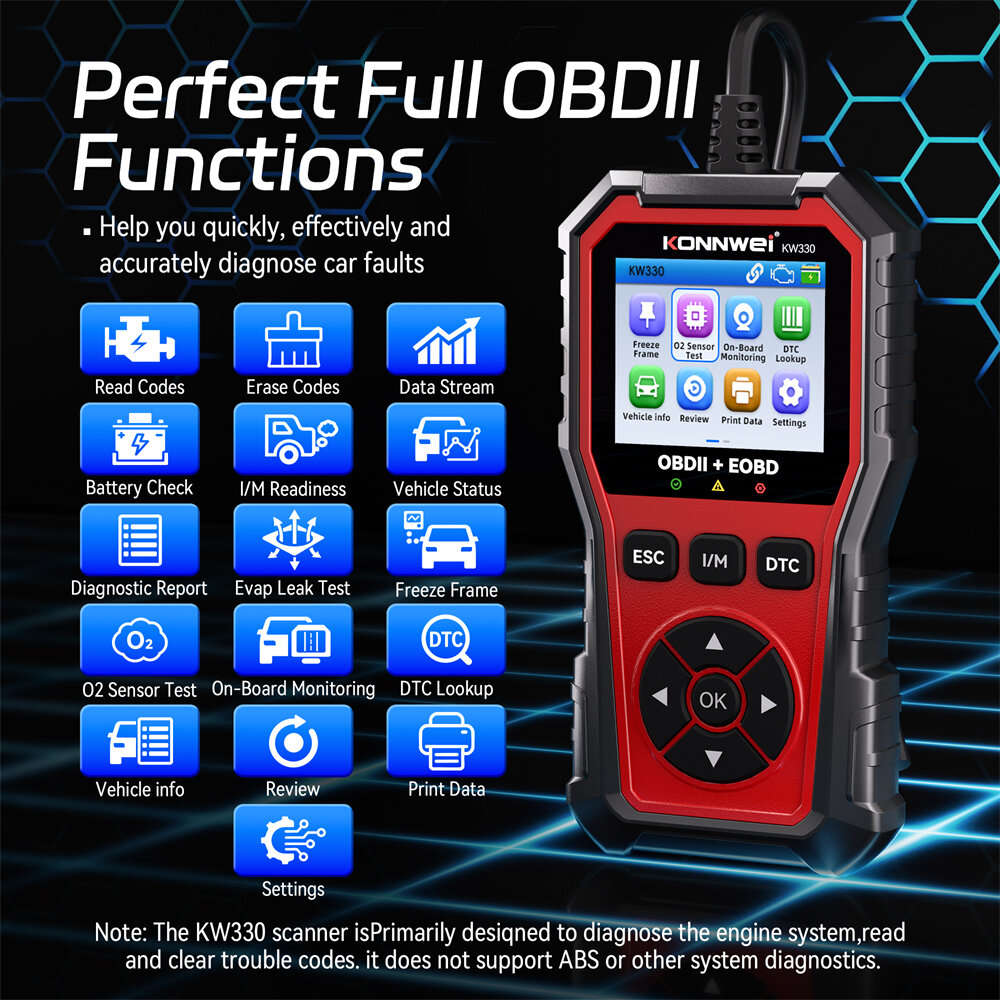

Feature:
1. Automatic (Startup Scan) or manual ECU connection optional
2. Quickly indicate engine fault codes, with green / yellow / red LED
indicators as fault lights.
3. To read or clear engine fault codes
4. Dynamic display of sensor data stream information
5. View freeze frame data and l/M status information.
6. Read vehicle information: vehicle identification number (VIN), calibration
identification number (CIN), calibration verification number (CVN).
7. Battery waveform voltage test
8. One-click DTC,I/M

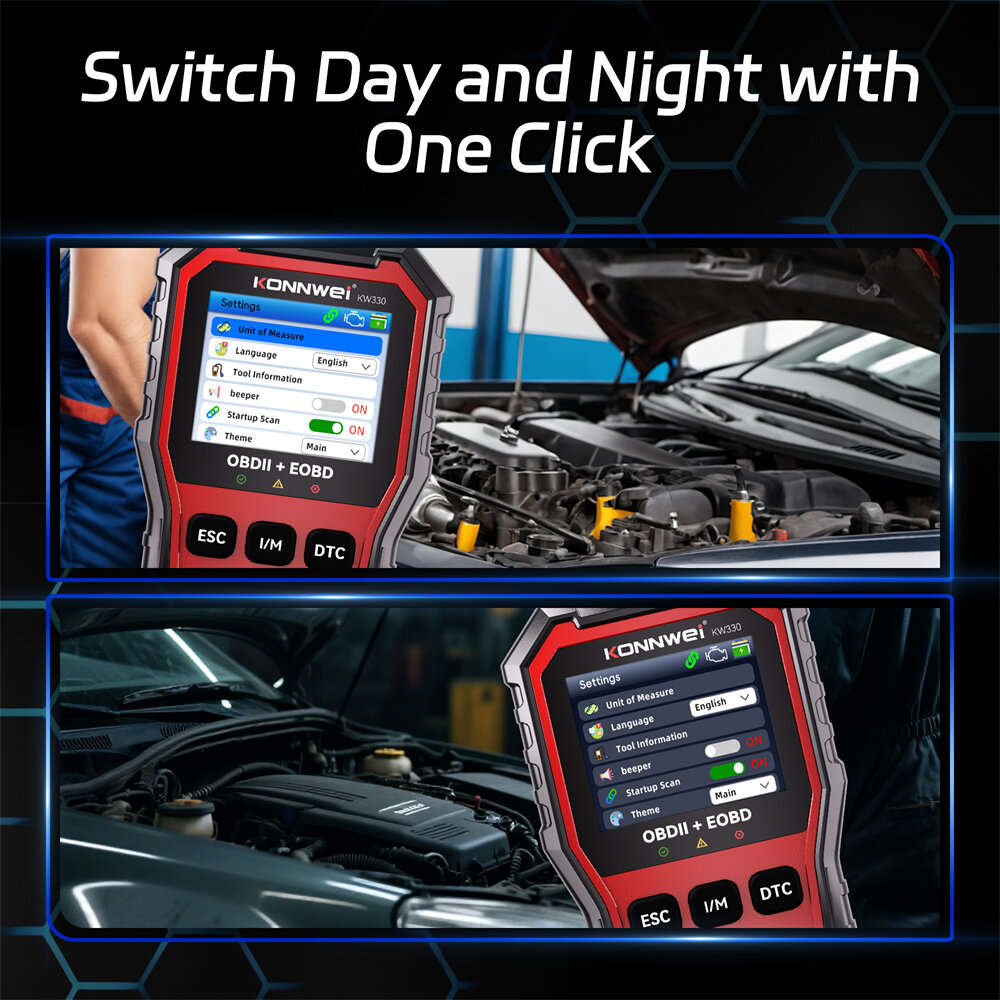

9. Dual model theme: main and subtopic for day and night mode
10. Multi-language support.
11. With type C port, free update and print data via PC
Package included:
1 x KW330 Car OBD Diagnostic Tool
1 x Manual
1 x USB Cable
