Red LED Tachometer RPM Speed Meter with Proximity Switch Sensor NPN

Sold

Red LED Tachometer RPM Speed Meter with Proximity Switch Sensor NPN

Name: Red LED Tachometer RPM Speed Meter with Proximity Switch Sensor NPN
SKU: 928692
Price: 173.78 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

20 were available / new

Indicative market price: R255.00

R173.78

32% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

MacSell5979

95.48 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Customer ratings:

1 ratings

Product code

928692

Bob Shop ID

459574599

Description :

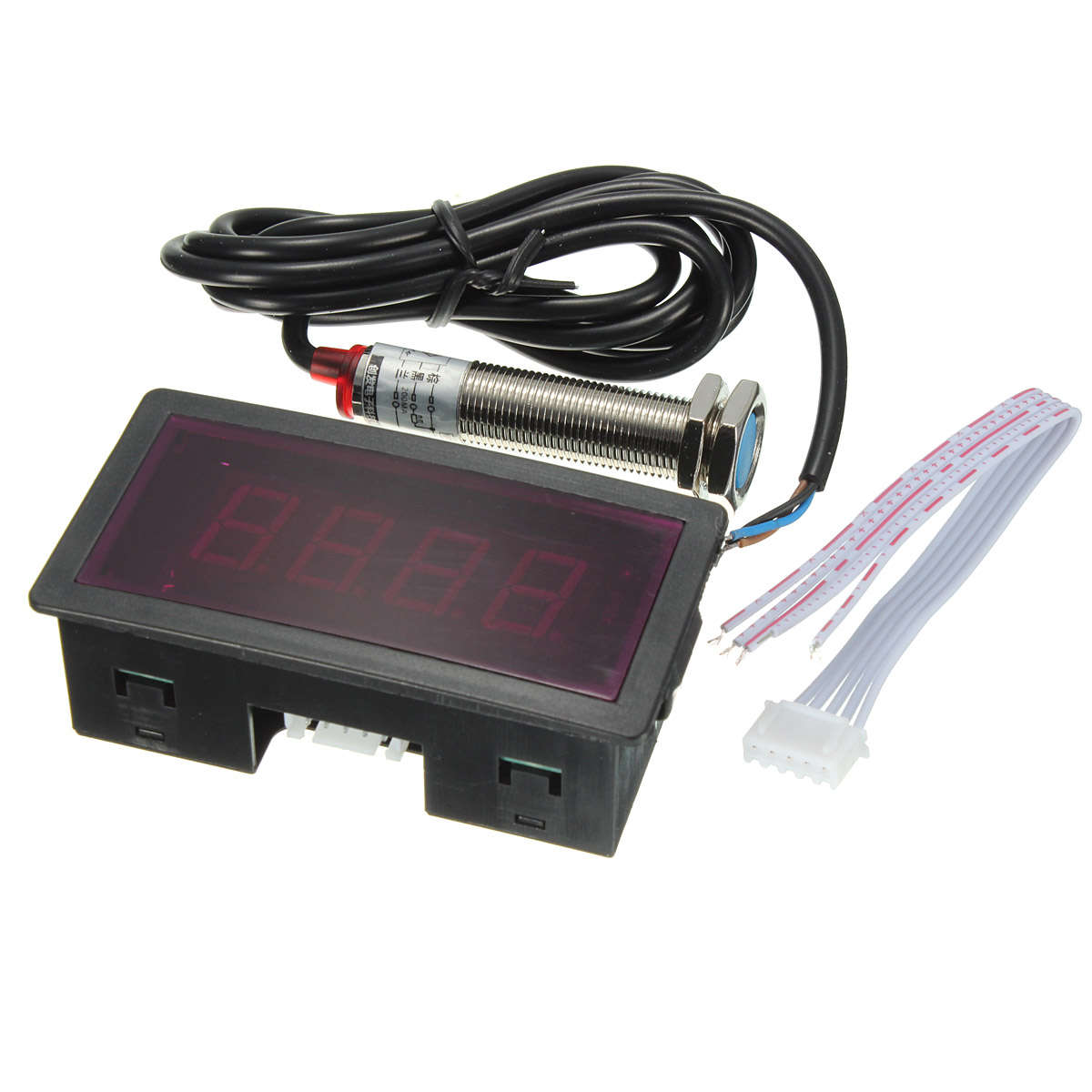

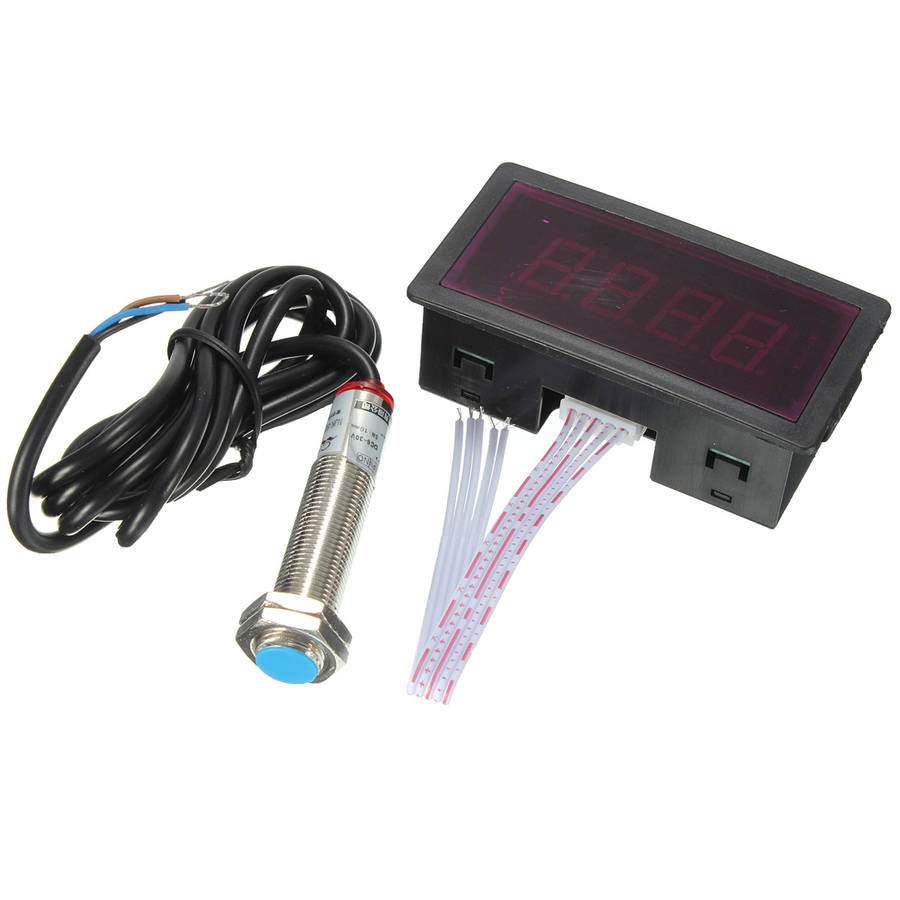

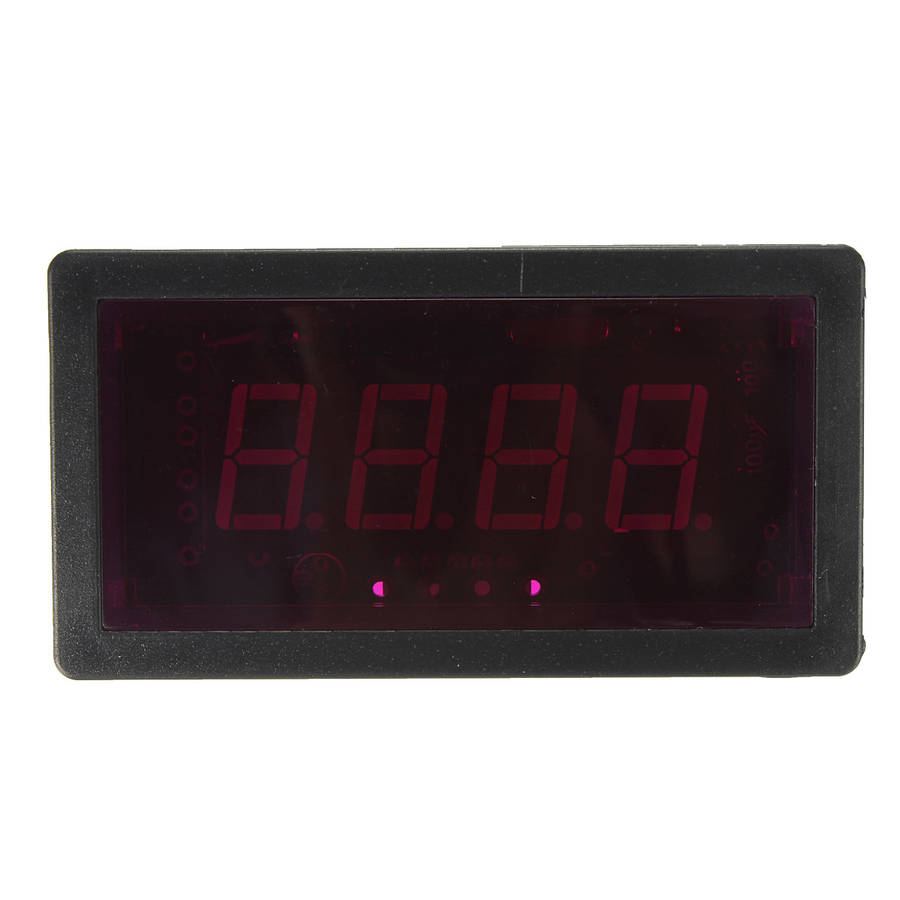

Digital Red LED Tachometer RPM Speed Meter + Proximity Switch Sensor NPN

Specification :

Power requirement : DC 8-15V or AC6-18V.
Measure range : 99999 ~ 3.8RPM.
Error range : ± 0.5 ‰ - 1.5 ‰ rpm
Clear zero : Automatic .
Clear zero time : About 10s.
Refresh frequency : 0.2-0.5S(120-1200RPM), 0.25-0.06S(2400-9999RPM).
Response frequency : 100HZ.
Measure indication : (RPM<5000, ±2), (RPM>5000, ±3).
Sign : NPN 3 wires normally open.

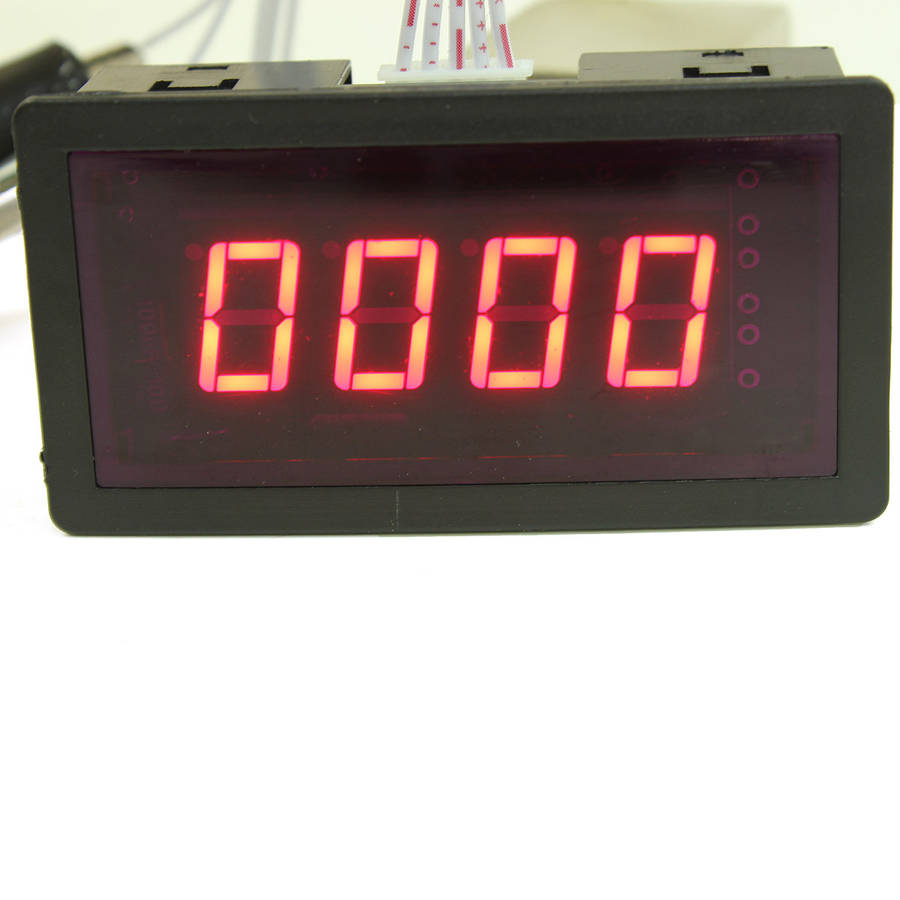

Display : 5 x 2.5cm red LED.
Tachometer size : 78 x 42 x 13mm.
Panel cutout size : 71 x 38mm.

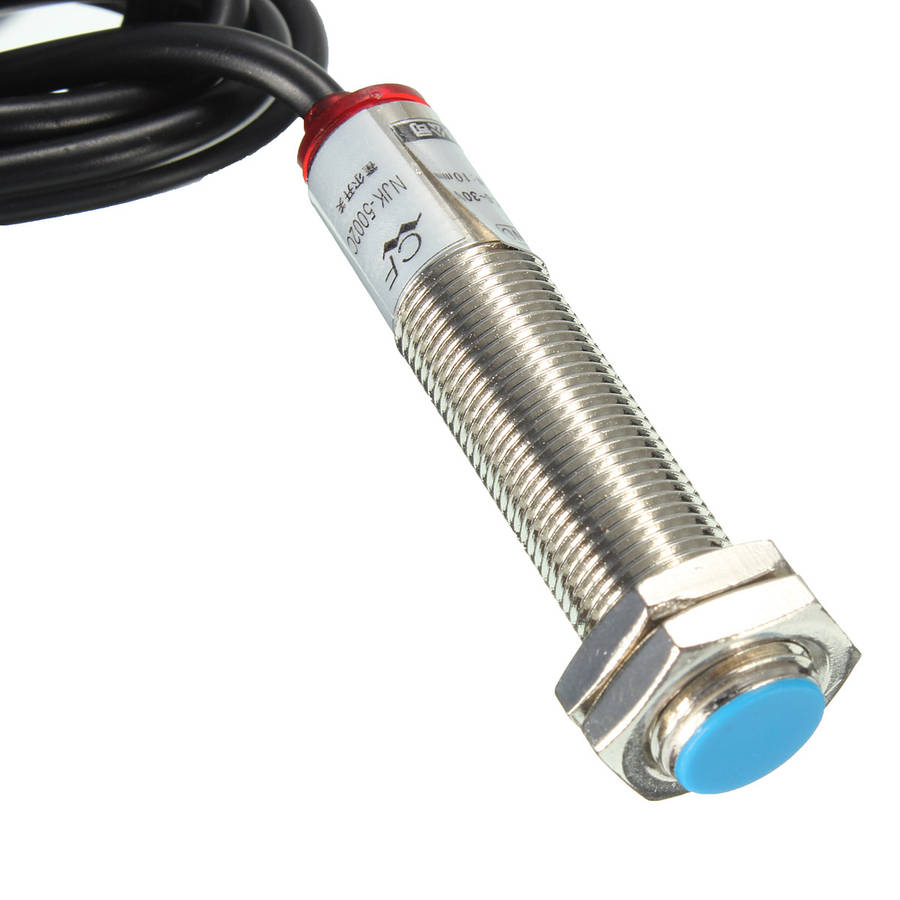

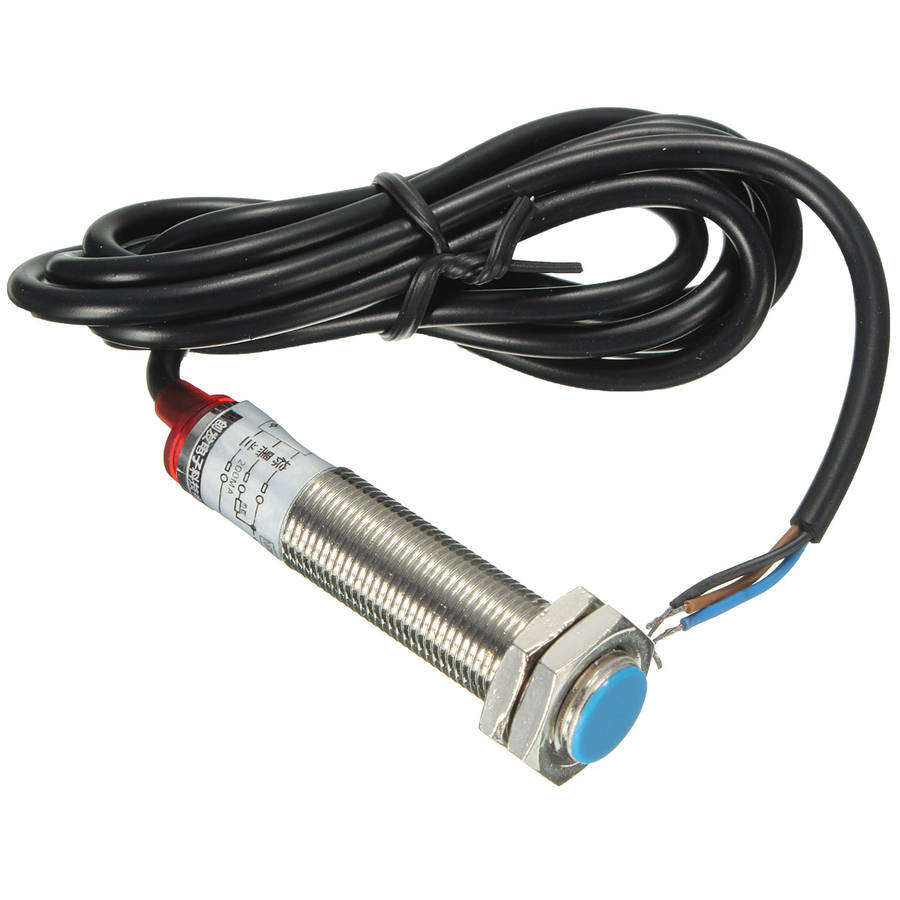

Hall proximity model : NJK-5002C .
Detected objects : Magnet.
Detection range : 1mm-10mm.
Proximity output current : 20mA(For the sensor).
Operating temperature : -10 to 60°C.
Sensor wiring : brown(Power+), blue(Power-), black(signal).
Sensor size : 37 x 12 x 10mm.

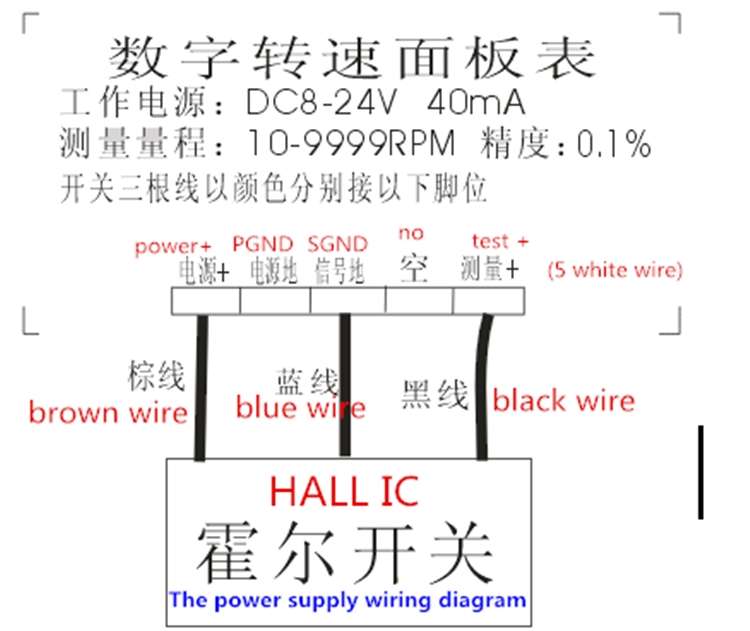

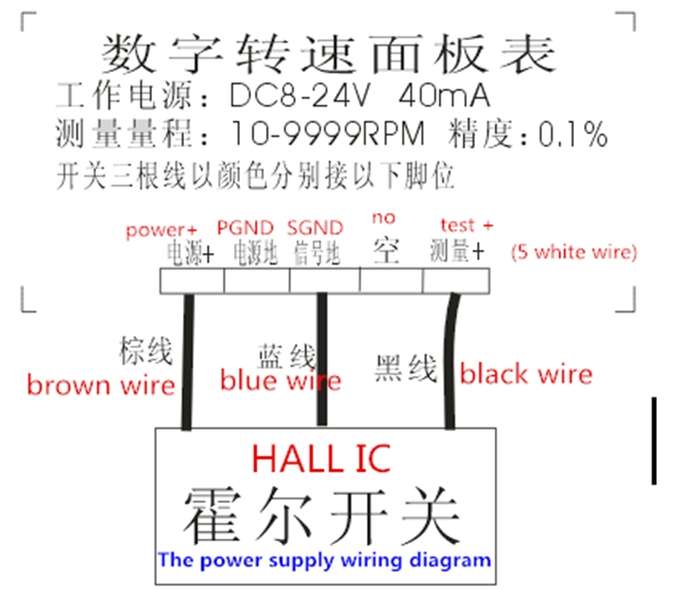

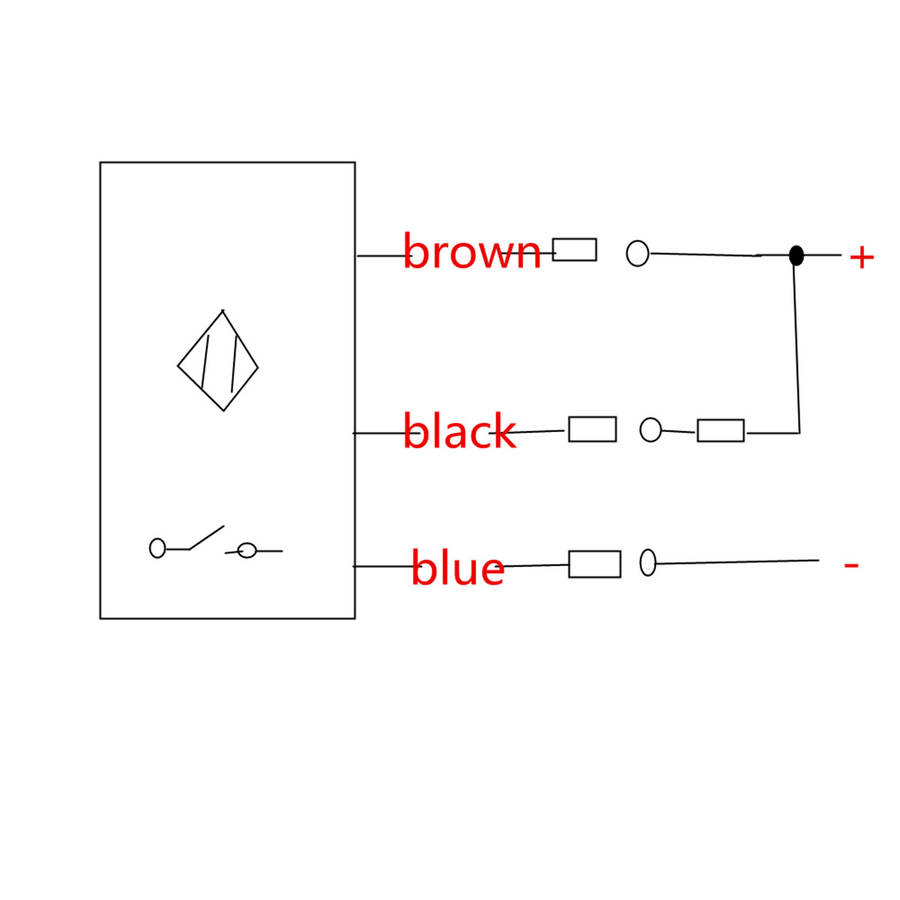

Connect diagram:
