Red LED Tachometer RPM Speed Meter with Proximity Switch Sensor NPN

New

20 available

R501.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4032

92.40 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654105775

Description :

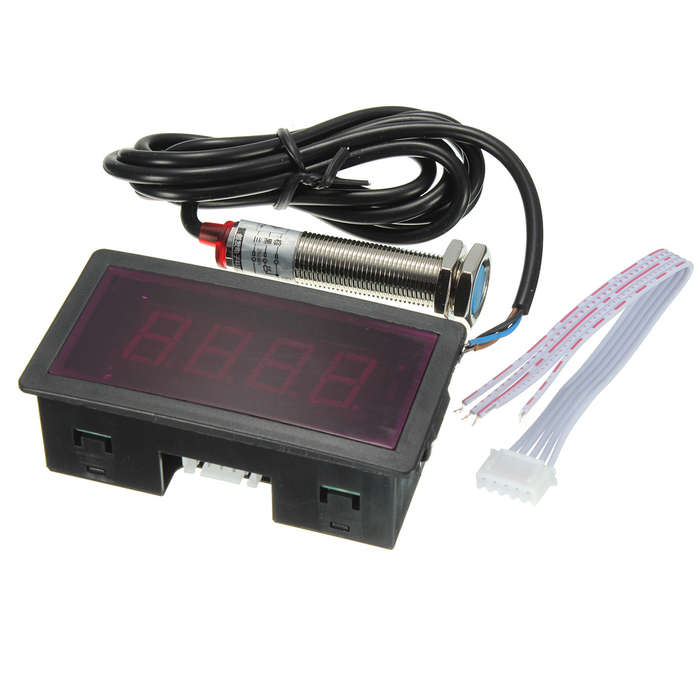

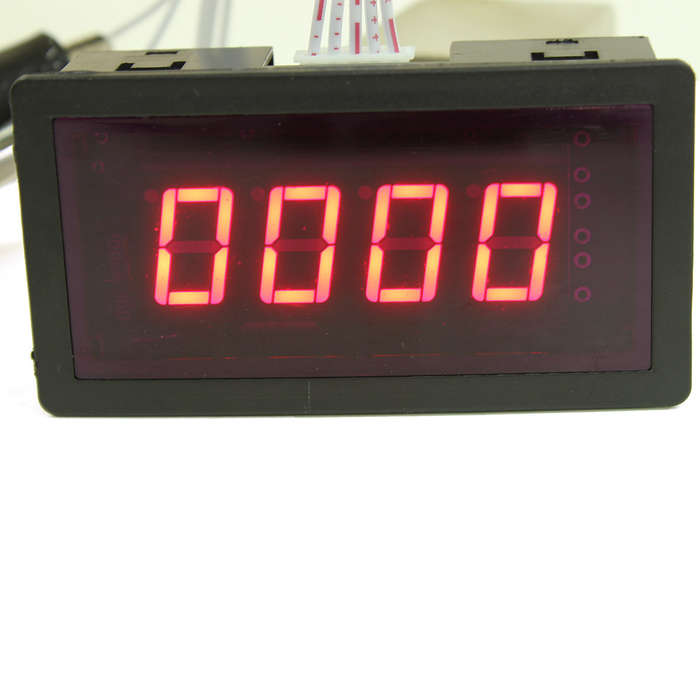

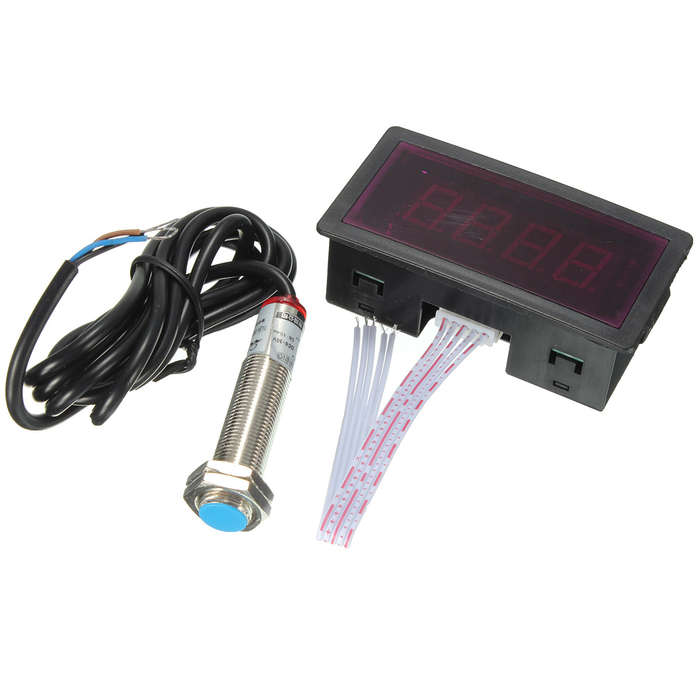

Digital Red LED Tachometer RPM Speed Meter + Proximity Switch Sensor NPN

Specification :

Power requirement : DC 8-15V or AC6-18V.
Measure range : 99999 ~ 3.8RPM.
Error range : &pm; 0.5 aﾣ - 1.5 aﾣ rpm
Clear zero : Automatic .
Clear zero time : About 10s.
Refresh frequency : 0.2-0.5S(120-1200RPM), 0.25-0.06S(2400-9999RPM).
Response frequency : 100HZ.
Measure indication : (RPM<5000, &pm;2), (RPM>5000, &pm;3).
Sign : NPN 3 wires normally open.

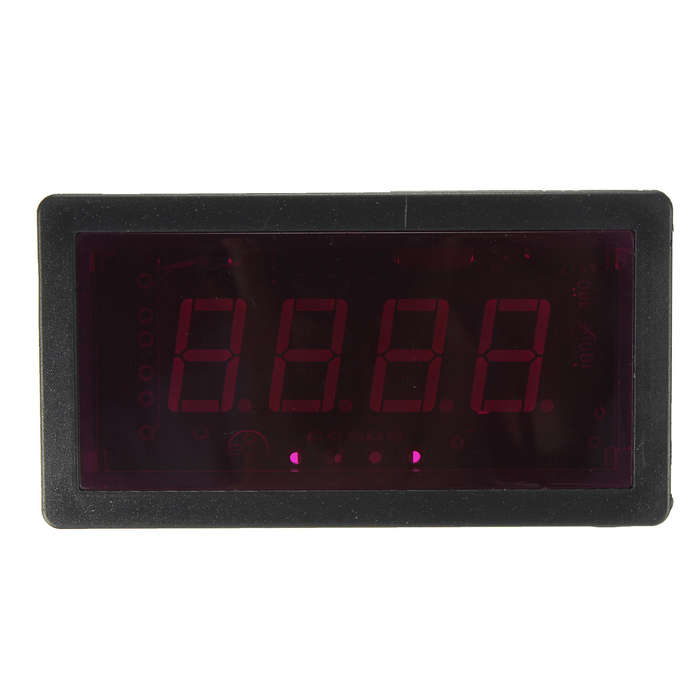

Display : 5 x 2.5cm red LED.
Tachometer size : 78 x 42 x 13mm.
Panel cutout size : 71 x 38mm.

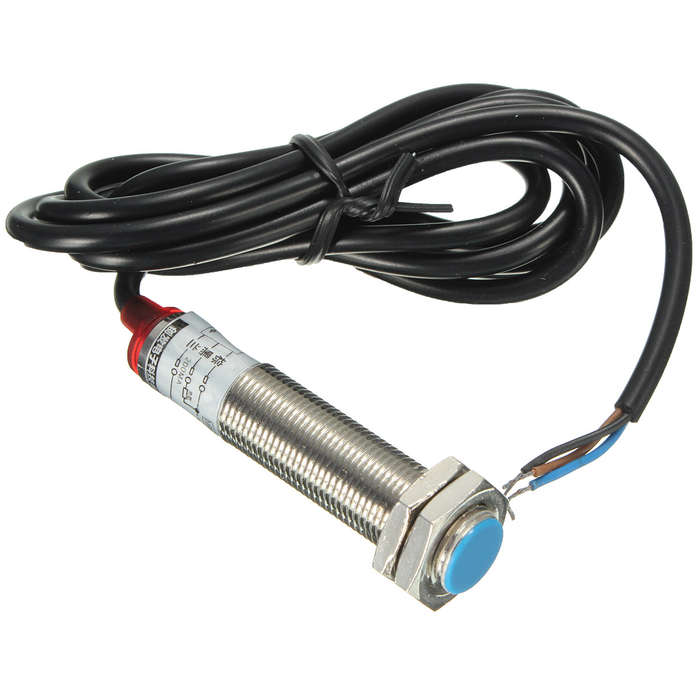

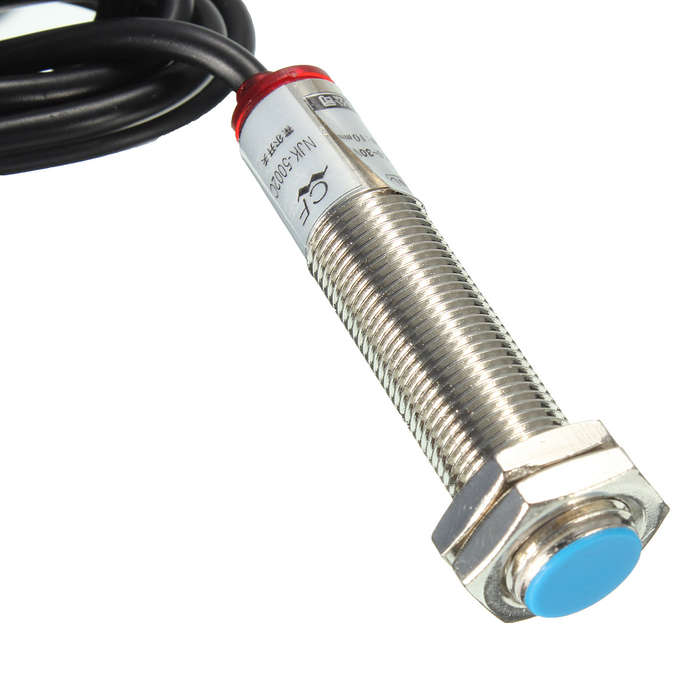

Hall proximity model : NJK-5002C .
Detected objects : Magnet.
Detection range : 1mm-10mm.
Proximity output current : 20mA(For the sensor).
Operating temperature : -10 to 60ﾣC.
Sensor wiring : brown(Power+), blue(Power-), black(signal).
Sensor size : 37 x 12 x 10mm.

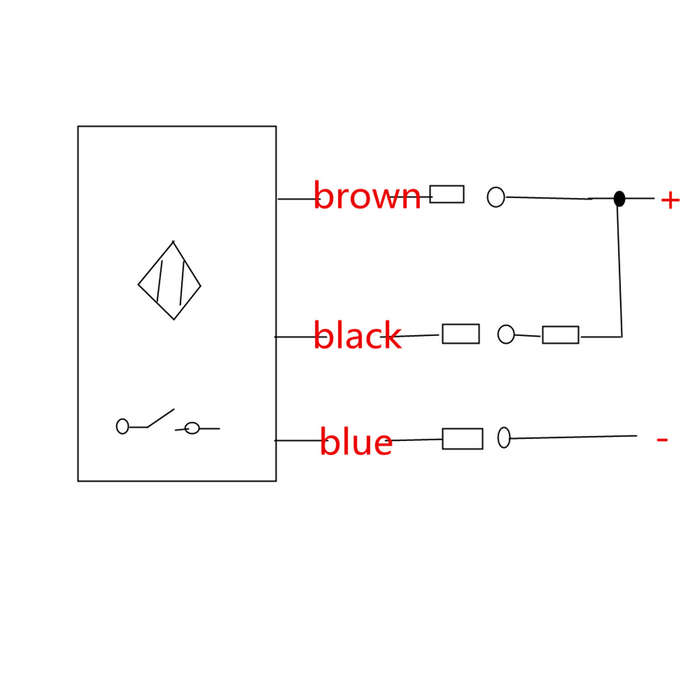

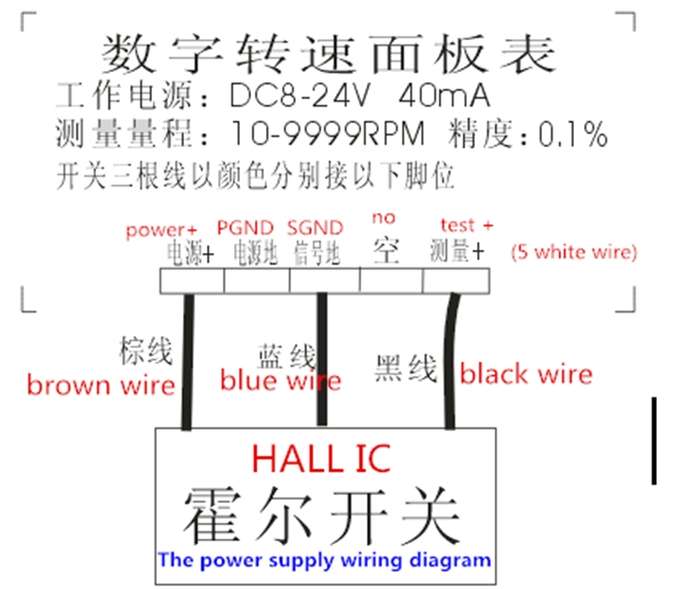

Connect diagram:
