Description:

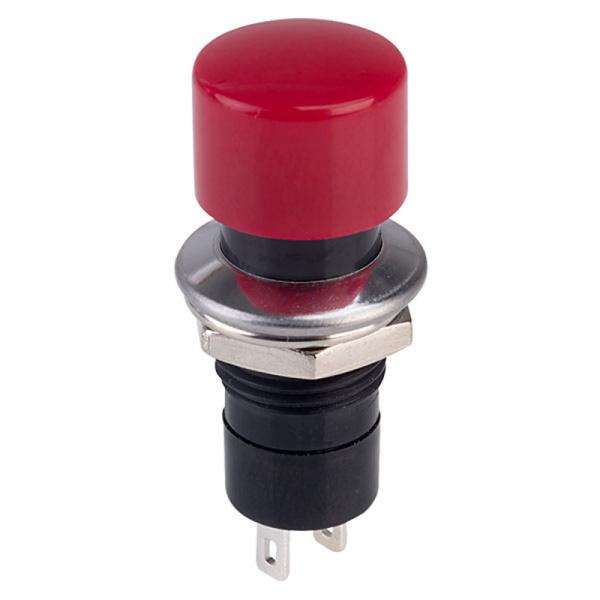

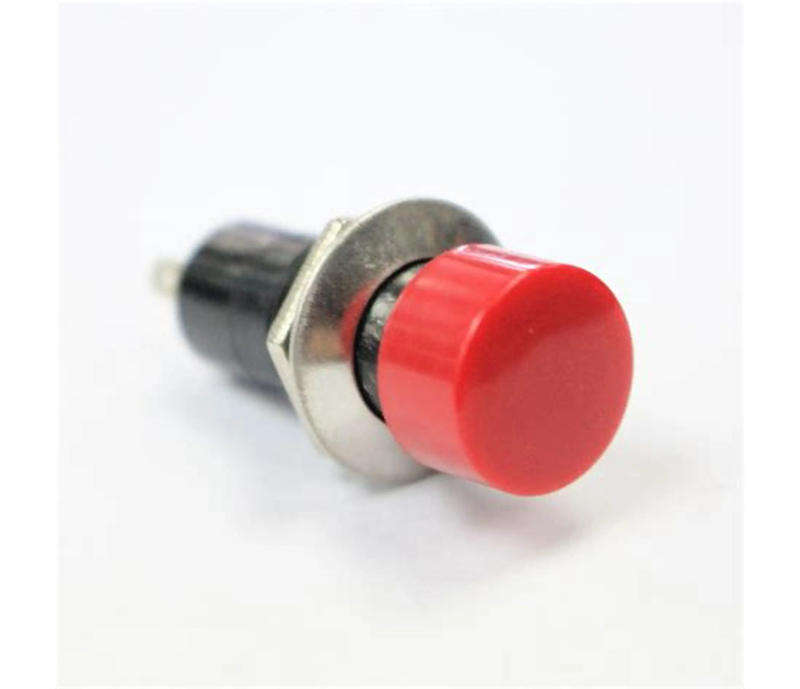

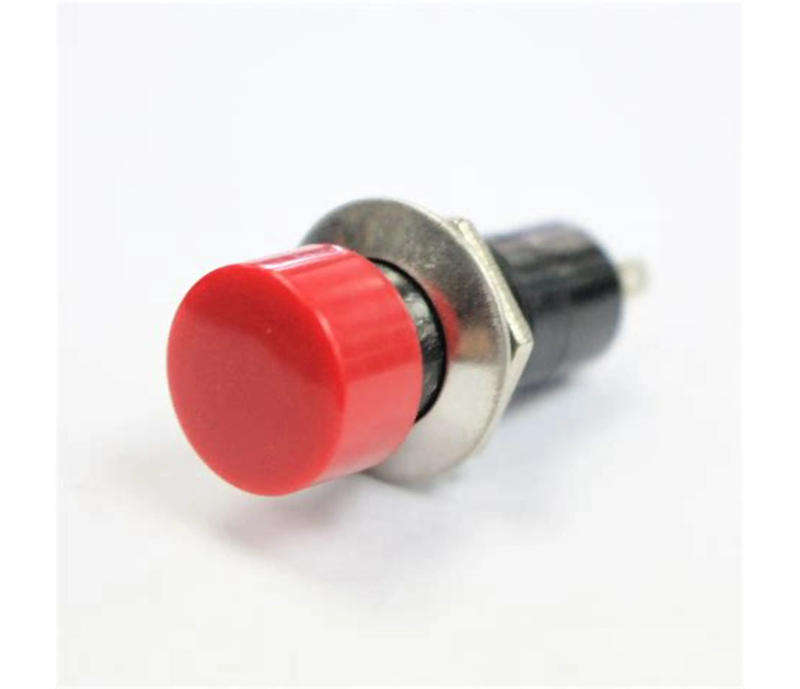

• A Red Non-Latching Switch is a momentary pushbutton switch that is commonly used in situations that require a temporary connection.
• Compact size: Ideal for applications where space is restricted.
• Ease of Use: Operate with a single press.
• Durability: Designed for extended use with little wear and tear.
• Visual Feedback: The red hue clearly indicates the switch's position.

Specifications:

• Model: Red Non-Latching Switch.
• Material: Durable plastic or metal housing, metal contacts.
• Switch Type: Non-Latching (Momentary).
• Contact Rating: Up to 3A at 250V AC, 1.5A at 125V AC.
• Contact Resistance: Less than 50m when closed.
• Insulation Resistance: Greater than 100M at 500V DC.
• Operating Voltage: 5-24V DC.
• Button Size: 12 x 12mm.
• Mounting Type: Through-hole or surface mount.
• Dimensions: Length: 21.3mm, Width: 14mm, Height: 7mm.
• Lifespan: Up to 2000 cycles.
• Features: Waterproof, dustproof, anti-static, and oil-resistant.
• Colour: Red.
