Brand new
Red PC Board
EU Online version
Firmware: V5.017
Software: V2.23
R2799 each
Available for Countrywide Postage.
Top 11 Reasons To Get V2.23 KESS V5.017:
1. It's Master Version. SW Version: 2.23. Hardware Version: 5.017.
For KESS V5.017, The software is V2.23 ! V2.23 is more stable than V2.33 and do not need any installation instruction, just click: Next Step, then everything works well.
2. It supports 140 more protocols than the HW V4.036 KESS.
3. You can use it Online and it will not damage the hardware
4. SW support multi-languages: English, German, Spanish, Italian, Portuguese, French
5. No Token Limitation: can be used unrestricted, no need to worry about tokens any more.
6. Powerful function, support much more ecu list than old version.
7. No Checksum Error
8. Working System: Windows XP Professional /Win7 / Windows 8
9. With coverage of all major brands and protocols including Line, CAN, EDC17 and MED17 and for Ford J1850. KESS V2 is everything you need to work as a successful tuner at a very affordable price.
10. Read and write to ECU via OBD2 port directly, no need to disassemble ECU from the car.
11. Software without usb dongle is more convenient
Notice:
1. Please do not update this tool online, or It will be damaged.
2. You can connect it with internet when you use it. and it will not damage the hardware.
3. You have to connect with your car when you install the software.(Otherwise software can't be installed successfully).
KESS V2 Read and write ECU via OBD2 port directly, no need dissemble ECU from the car, easy to use.
KESS V2 has several built in features and safeguards including:
1. Check of the battery voltage in real-time
2. Full Recovery function in case of problems
3. Automatic correction of the Checksum, (where available)
4 Boot-Loader mode supported
5. Management of the programming counters
6. ScanTool function to remove DTC
7. Several options of reading/writing speed
8. Option to write full file/section of the map
9. Full integration with ECM Titanium,which means it can work with ECM Titanium perfectly
Highlights :
1. Firmware Version : V5.017 , Software Version : V2.23
2. Supported multi-languages : English, German, Spanish, Italian, Portuguese, French
3. Supported OS : Win XP / Win7 / WIN8 / WIN10
4. Supported vehicle : univesal car /truck/tractor/motorcycle
5. Unlimited Token : 100% No Token Limitation for all compatible vehicles
6. No Grey protocol ! No Wake Up Error ! No Checksum Error !

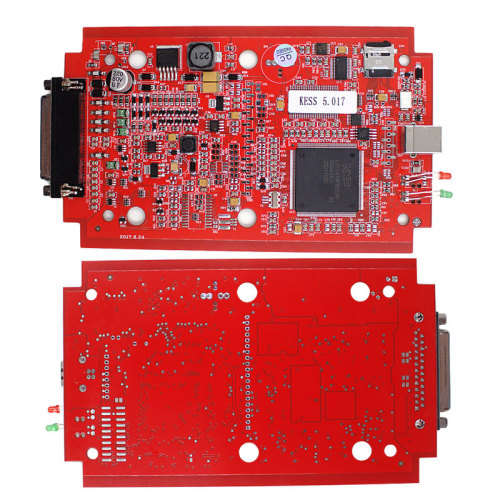

RED PCB important unit specifications :
WFs = Infine, BCR112 NPN Digital Transistor
27E = ON Semiconductor NUP2105LT1G¿
6DW = NXP BC817,215 NPN Bipolar Transistor
A6c =MMUN2113LT1G / MMUN2113LT3G
K5B = BC807-25-7-F PNP Bipolar Transistor
Using imported Japanese Murata filter NFE61PT472C1H9L
Useful FAQ For KESS V5.017 :
Q: KESS V5.017 online version means i can only operate online but can not operate offline ? can update online ?
A: Online version means you can connect to the internet during operation of course it also works offline, it cannot be updated online
