Specifications:

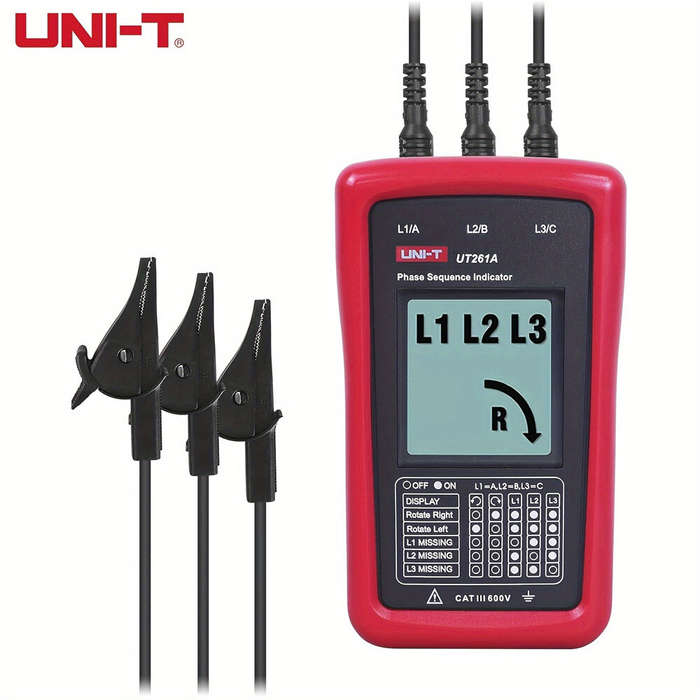

Model: UNI-T UT261A
Phase Voltage Range: AC 40V to 690V
AC Frequency Range: 15Hz to 400Hz
Phase Measurement: Forward, Reverse, and Missing Phase Detection
Test Current: < 1mA
Operating Temperature: 0 to 40°C (32 to 104°F)
Display Type: LCD Liquid Crystal Display
Reference Standards: IEC61010, IEC61557-7 Safety Standards
Overvoltage Standard: CAT III 600V
Features:
1.Wide Voltage Compatibility: Measures 3-phase voltages ranging from 40V to 690V AC, making it suitable for diverse industrial and electrical applications.

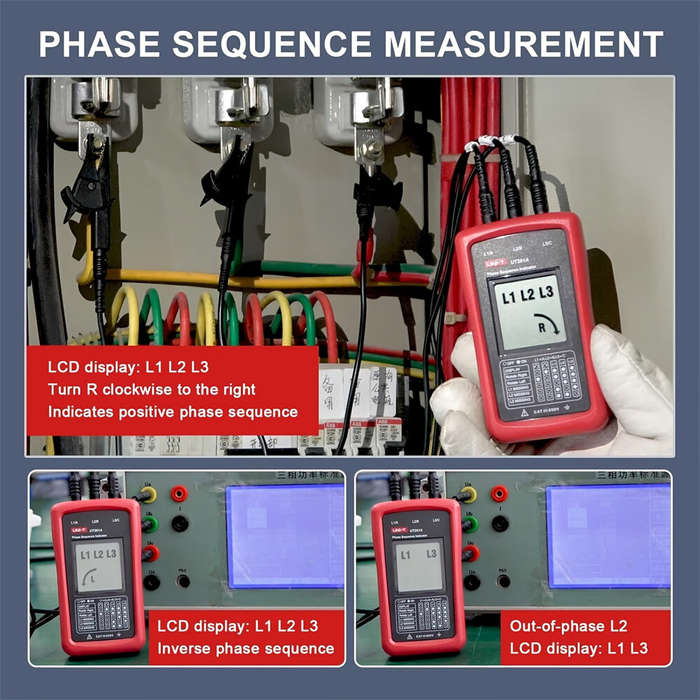

2.Precise Phase Sequence Detection: Accurately detects forward and reverse phase sequence, ensuring optimal motor and equipment operation and minimizing the risk of damage.
3pact LCD Display: The easy-to-read LCD screen provides clear visuals for phase seque
