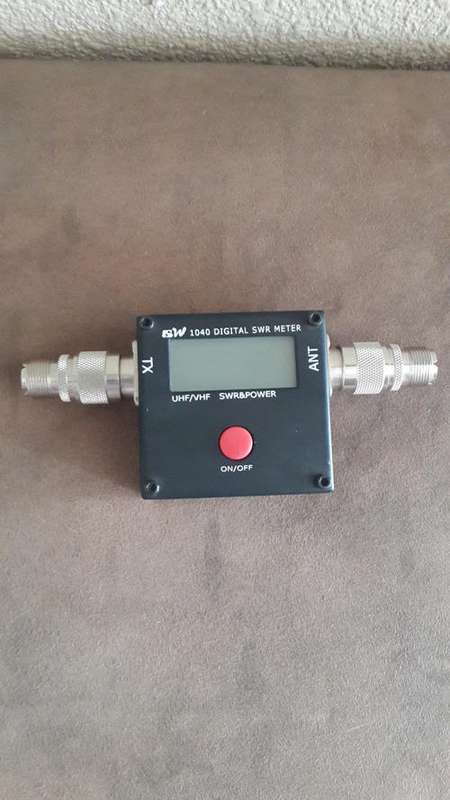

Redot 1040A Digital UHF/VHF SWR Meter

Excellent condition. Collect in Johannesburg / East Rand area only else buyer pays shipping

Features:

• Connect the Output of your transceiver to "TX" and Antenna or Load to "ANT". NOTE: UV-Band meter utilize "N" type connectors; and"SL16" connectors (normally named "M" connecter) for HF-Band. Proper adaptor/cable is required if your device has different type of connectors.

• Press the red button to power on. After 2 seconds of LCD self test, it''s ready for normal measurement.
• UV-Band meter will display in sequence:"+ XXX P" (pass through power),"- XXX P" (feed back power)," XXX Γ" (SWR value), 2 seconds display for each mode. Press the red button will hold the current display. Press it again to continue the display.
• Under the environment of night or weak illumination, just press and hold the red button for 1 second to turn the blue back light on. Press and hold the red button for 1 second again to turn it off.
• 8 minutes after no power was measured, it will power off automatically. Press and hold the red button for 2 seconds to turn off manually.

-MAX.POWER 120 W
-V.S.W.R 1.00~19.9
-FREQUENCY RANGE VHF (145mhz) / UHF(435mhz)
-Standing Wave COVER:100mhz~500mhz
-ONSERTION LOSS < 0.15dB(VHF) , < 0.25dB(UHF)
-TEMPERATURE 0-70 degree C.
-BATTERY 3 x AAA Type Battery or Rechargeable <2mA(Backlight Off) -INTERFACE N(SL16)
