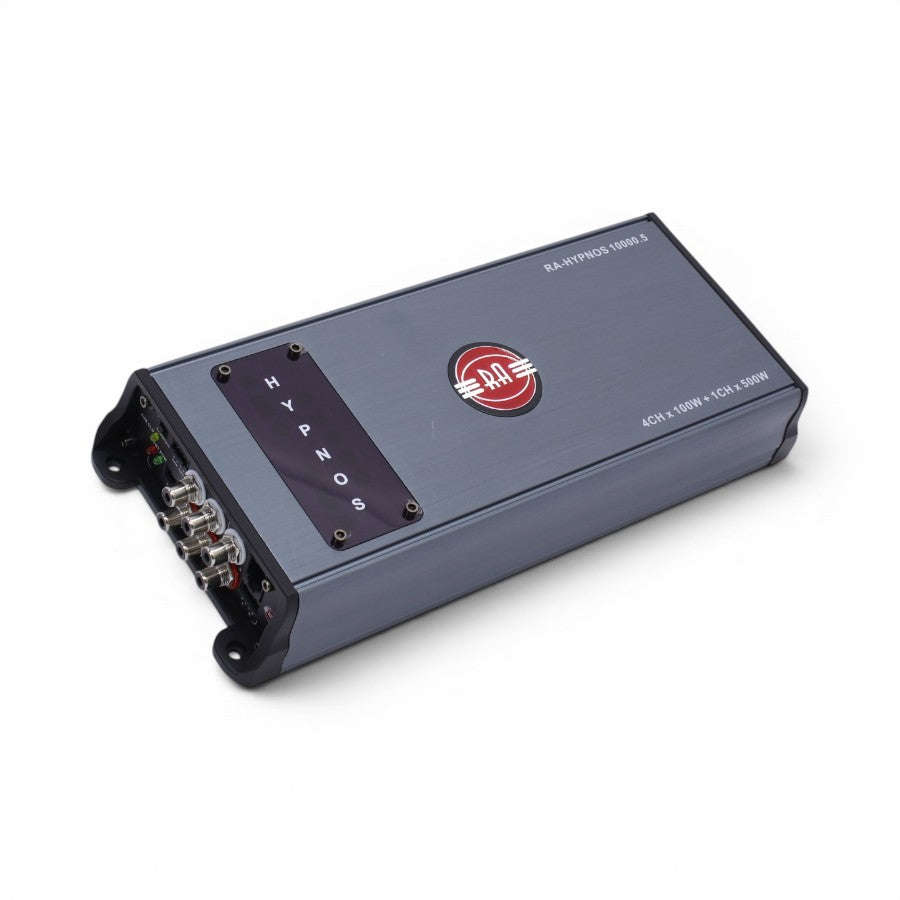

Reference Audio HYPNOS 10000.5 Hypnos Series 5 Channel Amplifier
The RA-HYPNOS 10 000.5 is a compact five-channel Class D car amplifier designed to power a complete audio system from a single unit. Four channels can drive the vehicle's speakers, while the dedicated fifth channel powers a subwoofer, helping to simplify installation and reduce the space required for multiple amplifiers.
Adjustable high-pass and low-pass filters make it easier to direct the correct frequencies to the connected speakers and subwoofer. The amplifier also features adjustable bass boost, a wide 20 Hz20 kHz frequency response and a built-in protection system for dependable operation.
FEATURES
Five-channel Class D amplifier
Powers speakers and a subwoofer from one amplifier
Two-ohm stereo capability
Four-ohm bridged capability
Adjustable low-pass filter
Adjustable high-pass filter
Adjustable bass boost
Built-in protection system
Compact installation-friendly enclosure
SPECIFICATIONS
Model: RA-HYPNOS 10 000.5
Amplifier class: Class D
Number of channels: 5
RMS power at 4 ohms: 4 × 100 W + 1 × 500 W
RMS power at 2 ohms: 4 × 180 W + 1 × 352 W
RMS power bridged at 4 ohms: 2 × 354 W + 1 × 197 W
Frequency response: 20 Hz20 kHz
Total harmonic distortion: Less than 0.05%
Input sensitivity: 0.26 V
Signal-to-noise ratio: Greater than 90 dB
Low-pass filter: 50500 Hz
High-pass filter: 50 Hz2 kHz
Bass boost: 012 dB
Protection system: Yes
Operating voltage: 916 V
Dimensions: 260 × 124 × 47 mm
